Getting Started with the Compact Flash Demonstrations

Getting Started with the Compact Flash Demonstrations
Users can quickly experience some of the capabilities of the VSK by loading the
configuration bitstreams included on the System Ace™ technology Compact Flash
memory card. The configuration bitstreams were fully compiled for the four reference
designs provided with the kit:
•
•
•
•
To run the demos, set up the VSK as follows:
1.
X-Ref Target - Figure 1-1
6
DVI Pass-Through Demo
DVI Frame-Buffer Demo
Camera Frame-Buffer Demo
S-Video Frame-Buffer Demo
As shown in Figure 1-1, set the power switch (S1) to OFF and insert the Compact Flash
(CF) memory card into the Compact Flash slot (P7) on the board.
D V I D is play
D V I (J3)
W es t (S5)
D IP (S2)
L
C enter (S6)
E
D
S outh (S8)
S
J TA G (P5)
D IP (S3)
S erial
(J17)

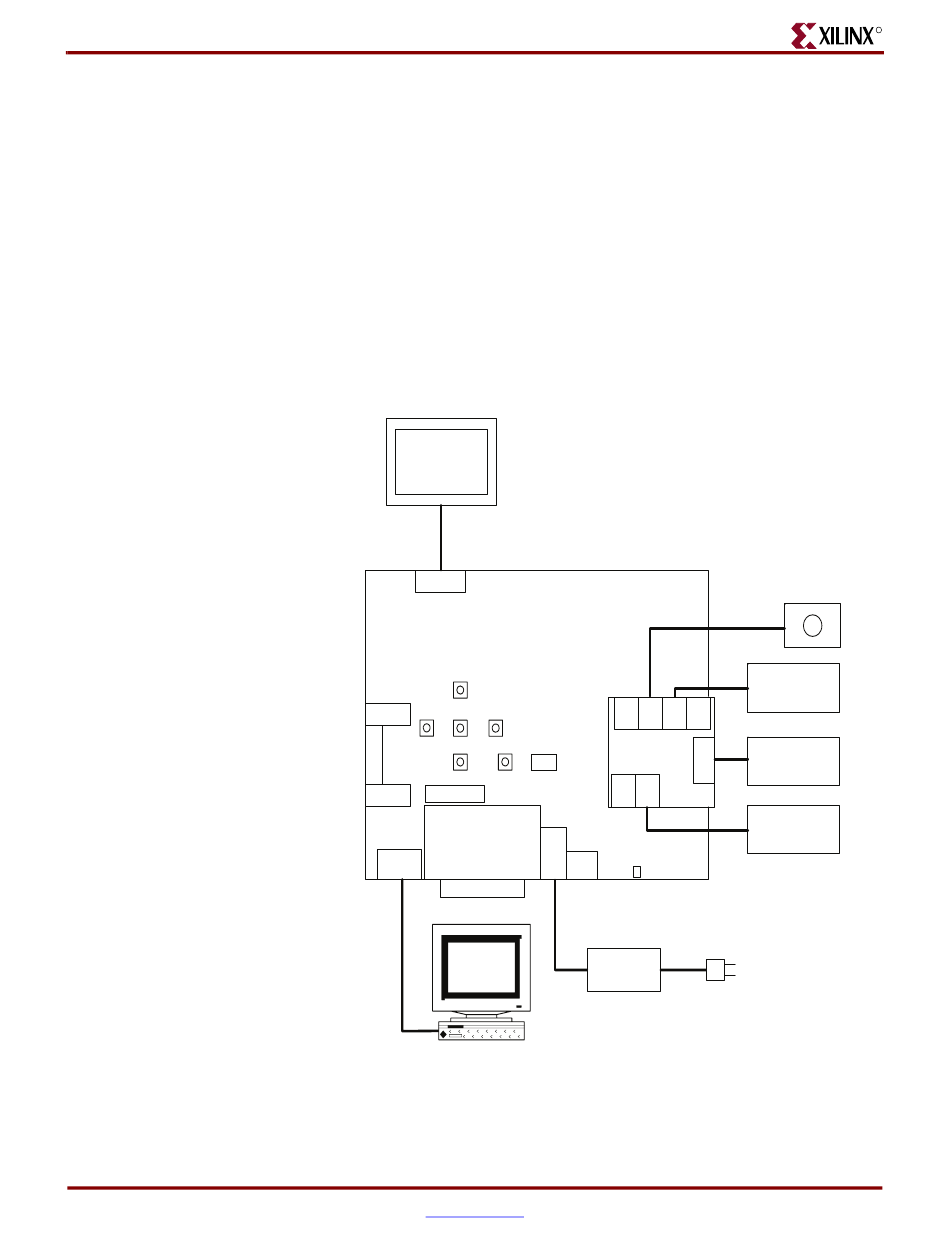

Figure 1-1: Video Starter Kit Physical Setup
www.xilinx.com
Spartan-3A DSP
Development Board
N orth (S4)
(J6)
E as t (S7)
FM C-V ideo
(JP6)
Reset ACE
(J2) (J1)
(S9)
LC D
PWR
(J7)
S W
( S1)
C F C ard (P7)
P ow er
S upply
P C
XtremeDSP Solution Video Starter Kit
C am era
CAT6 cable
S-V ideo
S ourc e
(J5) (J4) (J3)
DVI
D V I S ourc e
(J8)
(PC, DVD Player)
S-V ideo
D is play
P ow er LE D
D S1
ds702_01_100608
UG455 (v2.0) November 17, 2008
