02.00
Sequence of operations for cancellation of "Fast stop":
1.
Stop applying "Fast stop" command
2.
Enter "Standstill" command (e.g. via "Switch-on/shutdown" terminal)
3.
Converter exits operating state o8

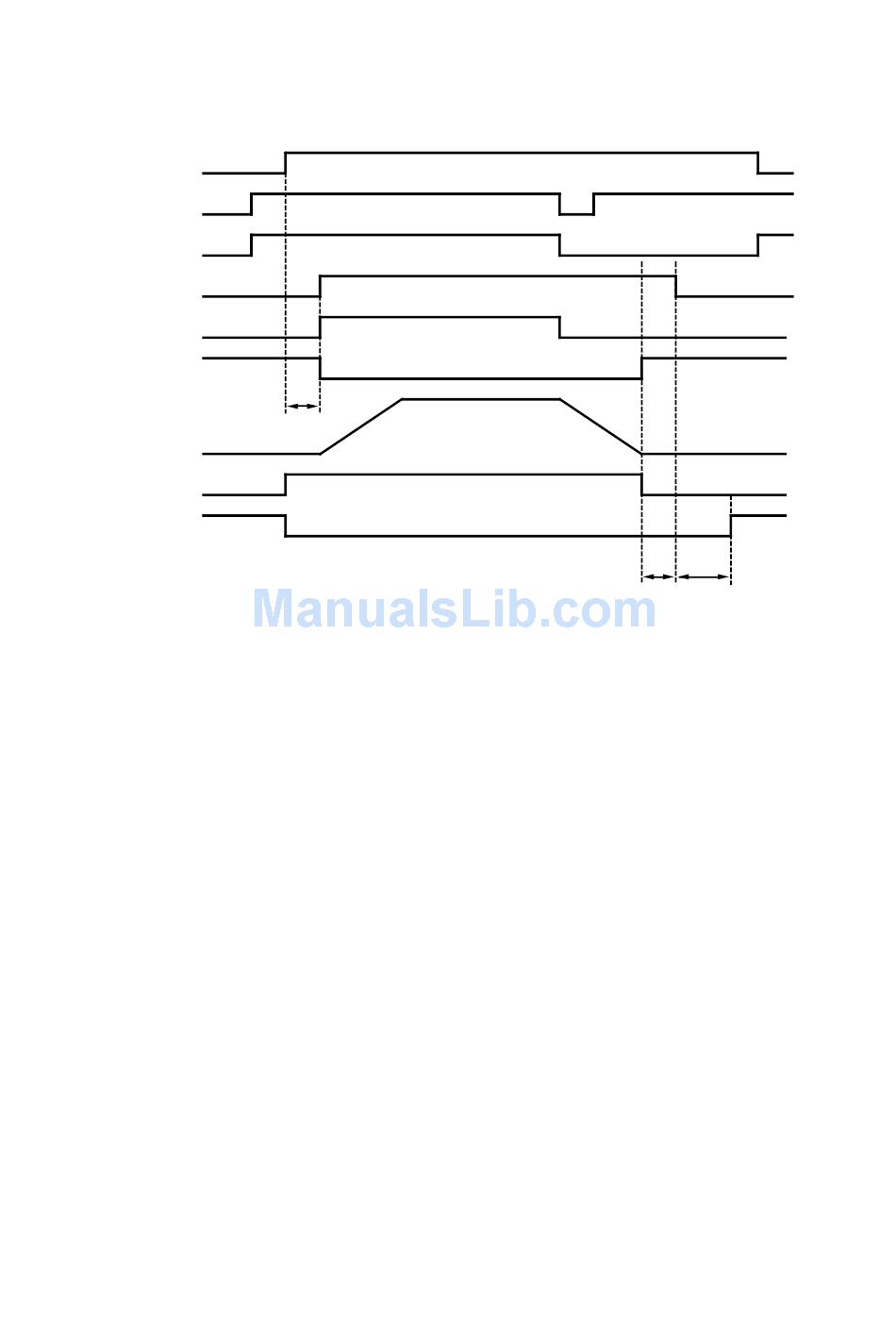

Switch-on/Shutdown
Fast stop
Internal fast stop
Internal controller enable
Internal setpoint enable
n < n
(P370,P371)
min
Actual speed
Brake control signal (B0255)
(holding break)
Internal standstill
field input
− The "Fast stop" command need only be applied as a short pulse (> 10 ms). It is then stored internally. The
memory can be reset only by applying the "Shutdown" command.
− All "Fast stop" commands are ANDed by the SIMOREG converter, i.e. all commands must be set to "No fast
stop" before the function can be deactivated.
− When n < n
(P370, P371) is reached for the first time, an internal interlock is activated which prevents the
min
drive from attempting to brake again if the motor is turned by external forces. The n < n
signal then disappears again.
9.3.3

Switch-on / shutdown (ON / OFF) terminal 37 - control word 1, bit 0

The "Switch-on / shutdown" (ON / OFF) function is controlled via the "Switch-on command of ON /
OFF1" (= ANDing between signal from terminal 37 and binector selected in parameter P654, level- or
edge-triggered, see below) and bit 0 of connector selected as the control word in P648.
The following operating modes are possible:
P648 = 9:
P648 ≠ 9:
P445 = 0:
SIEMENS AG
6RX1700-0AD76
SIMOREG DC Master
Operating Instructions
P087
P087 Brake release time (positive in this example)
P088 Brake closing time
P258 Delay for automatic field current reduction
The control bits in control word 1 are input bit-serially. "ON / OFF" is controlled via the
"Switch-on command of ON / OFF1".
The connector selected in P648 is used as control word 1. Bit 0 of the control word is
ANDed with the "Switch-on command of ON / OFF1" to produce the "ON / OFF"
command (ON only if both signals are log. "1").
The "Switch-on command of ON / OFF1" is generated as an AND operation between the
signal from terminal 37 and the binector selected in P654 (level-triggered, 0 = shutdown,
1 = switch-on).
ON
External fast stop
No fast stop
No fast stop
Internal fast stop
Controller enabled
Setpoint enabled
n > n
min
Setpoint reached
Release break
No standstill field
Function descriptions
Shutdown
Controller disabled
Setpoint =0
n < n
min
Setpoint reached
Close break
Sandstill field
P088
P258
min
9-7
