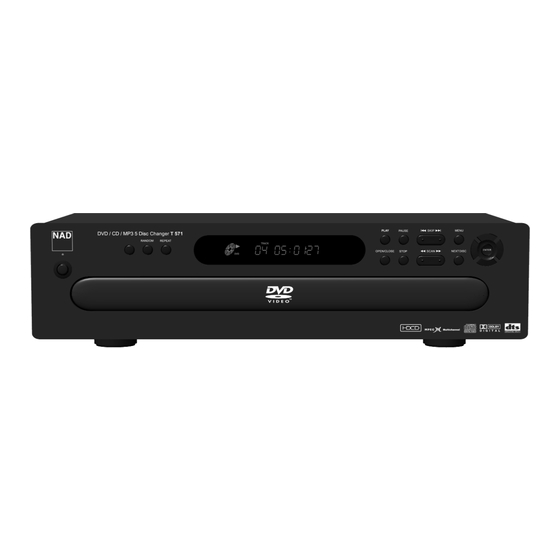

- Page 1 T571 DVD / CD / MP3 5 Disc Changer Owner’s Manual...
-
Page 2: Introduction
RECORD YOUR MODEL NUMBER (Now, while you can see it) The model and serial number of your new DVD player are located on the back of the DVD player cabinet. For your future convenience, we suggest that you record these numbers here: MODEL NO.____________________________________... -
Page 3: Table Of Contents
INTRODUCTION Safety Precautions ............2 Table of Contents . -
Page 4: Precautions
DVD player for a long time. They will leave marks on the finish. • The top and rear panels of the DVD player may become warm after a long period of use. This is normal and not a malfunction. -
Page 5: Notes On Discs
ABOUT THIS OWNER’S MANUAL • This owner’s manual explains the basic instructions of this DVD player. • Some DVD video discs have functions that may not be explained in this owner’s manual. Therefore, some instructions may differ from this owner’s manual, and there may be extra instructions. In this case, follow the instructions displayed on the TV screen or package. -
Page 6: Identification Of Controls
Introduction IDENTIFICATION OF CONTROLS FRONT PANEL POWER indicator POWER button DISPLAY WINDOW MP3 indicator Operating status indicator RANDOM button REPEAT button Remote sensor Display Window Disc tray HDCD indicator CD indicator DVD indicator HD CD TITLE Disc 1-5 indicator Angle icon indicator Title number indicator MENU button SKIP buttons... -
Page 7: Rear Panel
REAR PANEL 12V TRIGGER INPUT jack By connecting this DVD player to another NAD audio component or system controller equipped with a 12V trigger output, you can remotely operate the T571 power ON/OFF. POWER CORD Connect to an AC 110-240V, 50/60Hz outlet only. -
Page 8: Remote Control
Introduction IDENTIFICATION OF CONTROLS REMOTE CONTROL You will find instructions for each of the remote control functions in the appropriate sections of this instruction manual. SUBTITLE button ***TITLE button SELECT/ENTER button DISPLAY button FWD/REV SCAN button PAUSE/STEP button NEXT DISC button Number buttons * MENU BUTTON Use the MENU button to display the menu... -
Page 9: Preparing The Remote Control
About 30° in each direction of the front of the remote sensor • Do not expose the remote sensor of the DVD player to a strong light source such as direct sunlight or illumination. If you do so, you may not be able to operate the DVD player with the remote control. -
Page 10: Connections
Refer to the owner’s manual of your audio system for operating instructions. • Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections. -
Page 11: Enjoying Dolby Pro Logic Surround Sound
WARNING Do not set the Digital Audio Output of this DVD player to “Dolby Digital” unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to “Selecting Digital Audio Output”... -
Page 12: Enjoying 2 Channel Digital Stereo Sound
• Refer to the owner’s manual of your audio system for operating instructions. • Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections. -
Page 13: Connecting To A Stereo System
• Refer to the owner’s manual of your stereo system for operating instructions. • Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections. -
Page 14: Connecting To A Tv
• Refer to the owner’s manual of your TV for TV operating instructions. • Before you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections. -
Page 15: Initial Settings
Once the initial settings have been completed, the player can always be operated under the same conditions (especially with DVD discs). The settings will be retained in the memory until they are changed, even if the power is switched off. SELECTION OF INITIAL SETTINGS 1 Press SETUP in the stop or playback mode. -
Page 16: Selecting Disc Languages
DVD menus which will always be used for every disc to be played back. When you play back a DVD video disc, the DVD player automatically displays the pre-selected subtitle language if it is included on the disc. -
Page 17: Selecting Parental Control Rating Level And Password
For example: if you change the level to “5”, the DVD player will not play discs with ratings of “6”, “7” or “8” unless the correct password is entered on the remote control. - Page 18 Initial Settings SELECTING RATING LEVEL AND PASSWORD POWER SETUP AUDIO TITLE 1,2,3 DISPLAY ZOOM NEXT DISC OPEN/CLOSE REPEAT RANDOM SUBTITLE ANGLE SOUND MENU SELECT ENTER RETURN MARKER — SEARCH SCAN SKIP PLAY STOP PAUSE/STEP SLOW CLEAR PROGRAM SETTING YOUR PASSWORD (DVD ONLY) If you change the rating level to “7”...
-
Page 19: Selecting Tv Aspect
Select the appropriate screen type according to your TV set; conventional size screen (4:3) or wide-screen (16:9). 1 At the SETUP screen, press to select “TV Aspect” and press Disc Audio 4:3 Letterbox Disc Subtitle 4:3 Panscan Disc Menu 16:9 Wide Rating Password TV Aspect... -
Page 20: Selecting Menu Language
Initial Settings SELECTING MENU LANGUAGE POWER SETUP AUDIO TITLE DISPLAY ZOOM NEXT DISC OPEN/CLOSE REPEAT RANDOM SUBTITLE ANGLE SOUND MENU SELECT ENTER RETURN MARKER — SEARCH SCAN SKIP PLAY STOP PAUSE/STEP SLOW CLEAR PROGRAM Selects language for SETUP menus and displays on the TV. 1 At the SETUP screen, press to select “Menu Language”... -
Page 21: Selecting Digital Audio Output
• The DTS DVD disc sound is played back only when the DVD player is connected to a receiver with a DTS decoder. PCM only... -
Page 22: Others
Initial Settings OTHERS POWER SETUP REPEAT AUDIO SUBTITLE ANGLE TITLE SELECT ENTER DISPLAY ZOOM MARKER — SEARCH SCAN PLAY The DRC settings can be changed. ABOUT DRC (DYNAMIC RANGE COMPRESSION) With the DVD format you have the opportunity to hear a program’s soundtrack in the most accurate and OPEN/CLOSE realistic presentation possible, thanks to the use of digital audio technology. -
Page 23: Table Of Languages And Their Codes
Enter the appropriate code number for the initial settings “Audio”, “Subtitle” and/or “Menu” (see page 16) Code Language Code 6565 Afar 7079 6566 Abkhazian 7082 6570 Afrikaans 7089 6577 Ameharic 7165 6582 Arabic 7168 6583 Assamese 7176 6588 Aymara 7178 6590 Azerbaijani 7185... -
Page 24: Basic Operations Basic Playback
• If you insert an audio CD, the CD indicator lights up on the display. The title number does not appear. • After playing back all of the chapters in the title, the DVD player automatically stops and returns to the menu screen. - Page 25 5 If you want to select another disc, press NEXT DISC once or more. Also you can select a disc in the DVD player directly by using the remote control, press NEXT DISC and then press a number button (1-5) on the remote control within one second.
-
Page 26: Stopping Play
Basic Operations BASIC PLAYBACK POWER SETUP AUDIO TITLE DISPLAY ZOOM PLAY NEXT DISC OPEN/CLOSE REPEAT RANDOM SUBTITLE ANGLE SOUND MENU SELECT ENTER RETURN MARKER — SEARCH SCAN SKIP PLAY STOP STOP PAUSE/STEP SLOW CLEAR PROGRAM Screen Saver STOPPING PLAY Press STOP during playback RESUME PLAY •... -
Page 27: Skipping Discs
SKIPPING DISCS Press NEXT DISC during playback or in the stop mode. • Each time the button is pressed, the next disc tray is selected. TITLE CHP/TRK NOTES • When the NEXT DISC is pressed during playback or in the stop mode, the disc tray advances to the next disc. -
Page 28: Special Playback
HDCD Indicator lights. No user intervention is required. To enjoy the benefits of HDCD, your DVD Player must be connected to your A/V receiver via the Analog Audio Outputs. However, if your A/V... -
Page 29: To Scan At Fast Forward Or Fast Reverse Playback
To return to normal playback, press PLAY. NOTE • The DVD player does not play back sound during the high speed reverse and forward playback of DVD video discs. However, the DVD player plays back sound during fast forward or fast reverse playback of audio CDs. -
Page 30: Operation Using Gui (Graphical User Interface) Menu Icons
Operation Using Menu Icons (Graphical User Interface) GENERAL INFORMATION ABOUT GUI MENU ICONS POWER SETUP REPEAT AUDIO SUBTITLE ANGLE TITLE SELECT ENTER DISPLAY ZOOM MARKER — SEARCH SCAN PLAY This unit features GUI Menu Icons showing disc information (title/chapter/track number, elapsed playing time, audio/subtitle language, angle, and sound) and player information (repeat play, play mode, marker, etc.). -
Page 31: Detailed Description Of Each Gui Menu Icon
Operation Using Menu Icons (Graphical User Interface) You can view information about a disc and its operational status on the TV screen. Press DISPLAY during playback. [TV SCREEN] DVD GUI To show the current title nmber, and to jump to the desired title number. To show the current chapter number and to jump to the desired chapter number. -
Page 32: Advanced Operation
Advanced Operation USING A TITLE MENU TITLE SELECT ENTER DISPLAY ZOOM MARKER — SEARCH SCAN SKIP PLAY STOP NEXT DISC PAUSE/STEP SLOW USING A DVD MENU TITLE SELECT ENTER DISPLAY ZOOM MARKER — SEARCH SCAN SKIP PLAY STOP NEXT DISC PAUSE/STEP SLOW CLEAR... -
Page 33: Changing Subtitle Language
It is possible to change the subtitle language to a different language from the one selected at the initial settings. (See page 16 for further info.) This operation works only with discs on which multiple subtitle languages are recorded. NOTES •... -
Page 34: Viewing From Another Angle
Advanced Operation VIEWING FROM ANOTHER ANGLE POWER SETUP REPEAT AUDIO SUBTITLE ANGLE TITLE SELECT PRODUCING A 3D SURROUND EFFECT POWER SETUP REPEAT AUDIO SUBTITLE ANGLE TITLE SELECT Some DVDs may contain scenes which have been shot simultaneously from a number of different angles. For these discs, the same scene can be viewed from each of these different angles using the ANGLE button. -
Page 35: Repeat Play
REPEATING VIEWING (LISTENING) Press REPEAT during playback Each time this button is pressed, the TV screen changes as shown below and the disc will repeat a chapter or title (DVD) or a track (CD). Repeat of chapter being played Repeat of title being played Cancel repeat mode (normal play) Repeat of track being played Repeat of entire current disc contents... -
Page 36: Storing Markers In Memory To Be Viewed (Listened To) Again
Advanced Operation STORING MARKERS IN MEMORY TO BE VIEWED (LISTENED TO) AGAIN POWER OPEN/CLOSE SETUP REPEAT AUDIO SUBTITLE ANGLE TITLE SELECT ENTER DISPLAY ZOOM MARKER — SEARCH SCAN PLAY STOP NEXT DISC PAUSE/STEP SLOW CLEAR PROGRAM Storing a MARKER in the DVD memory is similar to marking your page in a book. It allows you to quickly return to any point on the disc. -
Page 37: Zoom Feature
• Random playback may not be possible on certain discs. • If you press the SKIP button during random playback, the DVD player goes to another track randomly and starts playback. • Random playback may not be possible on MP3 encoded discs. -
Page 38: Program Play
Advanced Operation PROGRAM PLAY POWER OPEN/CLOSE SETUP REPEAT AUDIO SUBTITLE ANGLE TITLE SELECT ENTER DISPLAY ZOOM MARKER — SEARCH SCAN PLAY STOP NEXT DISC PAUSE/STEP SLOW CLEAR PROGRAM The player plays the tracks on the disc in the order you specify. NOTE Program play function is possible only with audio CDs. -
Page 39: Playback With Mp3
TO PLAY AN MP3 FILE 1 Load an MP3 disc. The MP3 menu is displayed. 2 Press button to select the desired MP3 file and then press PLAY to start playback of the file. FOR YOUR REFERENCE • Press SKIP or SKIP to play the next file or previous file during playback. - Page 40 Advanced Operation PLAYBACK WITH MP3 Program MP3-1 TRACK 2.mp3 TRACK 1.mp3 TRACK 7.mp3 TRACK 2.mp3 TRACK 6.mp3 TRACK 3.mp3 TRACK 9.mp3 TRACK 4.mp3 TRACK 5.mp3 TRACK 6.mp3 TRACK 7.mp3 TRACK 8.mp3 TRACK 9.mp3 Clear All Program MP3-1 TRACK 2.mp3 TRACK 1.mp3 TRACK 7.mp3 TRACK 2.mp3 TRACK 6.mp3...
-
Page 41: Reference
Region Management Information: This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot play that disc. -
Page 42: Before Calling Service Personnel
SYMPTOMS AND CORRECTION Check the following guide for the possible cause of a problem before contacting service. SYMPTOM No power. The power is on, but the DVD player does not work. No picture No sound The playback picture is poor The DVD player does not start playback The remote control does not work properly. -
Page 43: Specifications
DVD PLAYER Power supply Power consumption Mass External dimensions (W X H X D) Signal system Laser Frequency range (audio) Signal-to-noise ratio (audio) Dynamic range (audio) Harmonic distortion (audio) Operating conditions Operation status OUTPUTS Video output S-video output Audio output (digital audio) - Page 44 ©2001 NAD ELECTRONICS INTERNATIONAL All rights reserved. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International T571 Manual 11/01 Printed in Korea...
