1 . 1 . 4 F o r V i g o r 2
1 . 1 . 4 F o r V i g o r 2

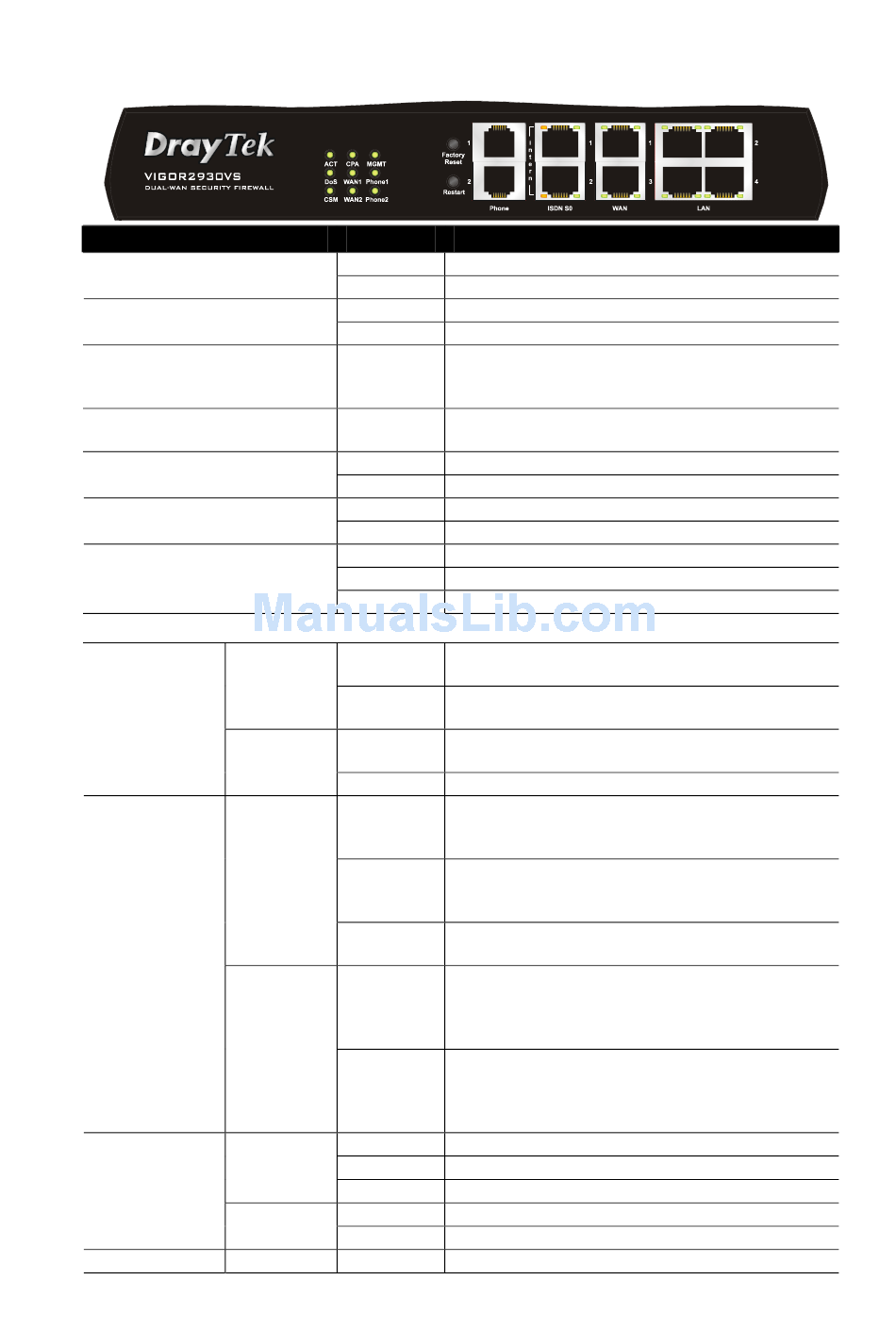

LED
ACT (Activity)
DoS
CSM
CPA (Content Portal Authority)
WAN1/2
MGMT
Phone 1/2
LED on Connector
ISDN S0 1 Left LED
(Orange)
Right LED
(Green)
ISDN S0 2 Left LED
(Orange)
Right LED
(Green)
Left LED
WAN 1/2
(Green)
Right LED
(Green)
Left LED
9 3 0 V S
9 3 0 V S
Status
Blinking
Off
On
Blinking
On
On
On
Blinking
On
Blinking
On
Off
Blinking
On
Blinking
On
Blinking
On
Blinking
Off
On
Blinking
On
Off
Blinking
On
Off
On
Explanation
The router is powered on and running normally.
The router is powered off.
The DoS/DDoS function is active.
It will blink while deleting an attack.
The profile of CSM (Content Security
Management) for IM/P2P application is active. (It
is enabled from Objects Setting >> CSM Profile).
The Web Content Filter is active. (It is enabled
from Firewall >> Web Content Filter Setup)
The WAN1 or WAN2 connection is ready.
It will blink while transmitting data.
The router is managed (handled) by Telnet.
It will blink while being managed by IE browser.
The phone connected to this port is off-hook.
The phone connected to this port is on-hook.
A phone call comes.
ISDN NT (ISDN S0 intern) mode is active and an
ISDN phone adapter is connected.
ISDN NT (ISDN S0 intern) mode is active and an
ISDN phone adapter is not connected.
A phone has been connected. If not, green LED will
be off.
An ISDN phone is off-hook or a phone call comes.
ISDN NT (ISDN S0 intern) mode is active
configured from VoIP>>Phone Settings and an
ISDN phone adapter is connected.
ISDN NT (ISDN S0 intern) mode configured from
VoIP>>Phone Settings is active and an ISDN
phone adapter is not connected.
It means ISDN TE mode is active which is
configured from VoIP>>Phone Settings.
A phone adapter with phone set has been connected
(ISDN S0 intern mode) or ISDN line has been
connected (ISDN S0 extern mode). It will be off if
there is nothing connected.
In ISDN NT (ISDN S0 intern) mode, it means an
ISDN phone is off-hook or a phone call comes.
In ISDN TE mode, it means data, fax or voice
(phone call) is transmitting.
The port is connected.
The port is disconnected.
The data is transmitting.
The port is connected with 100Mbps.
The port is disconnected with 10Mbps.
The port is connected.
5
