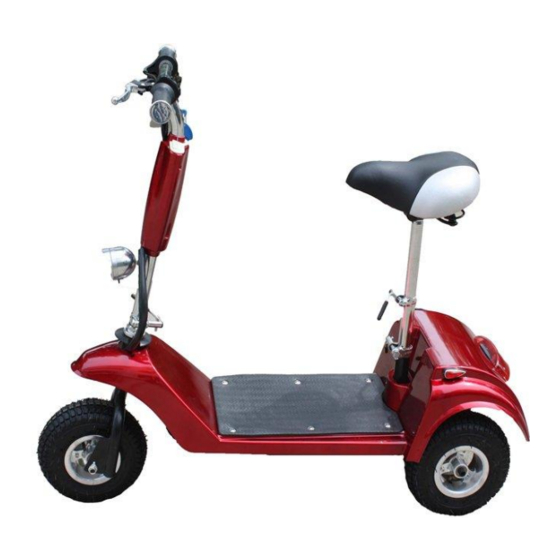

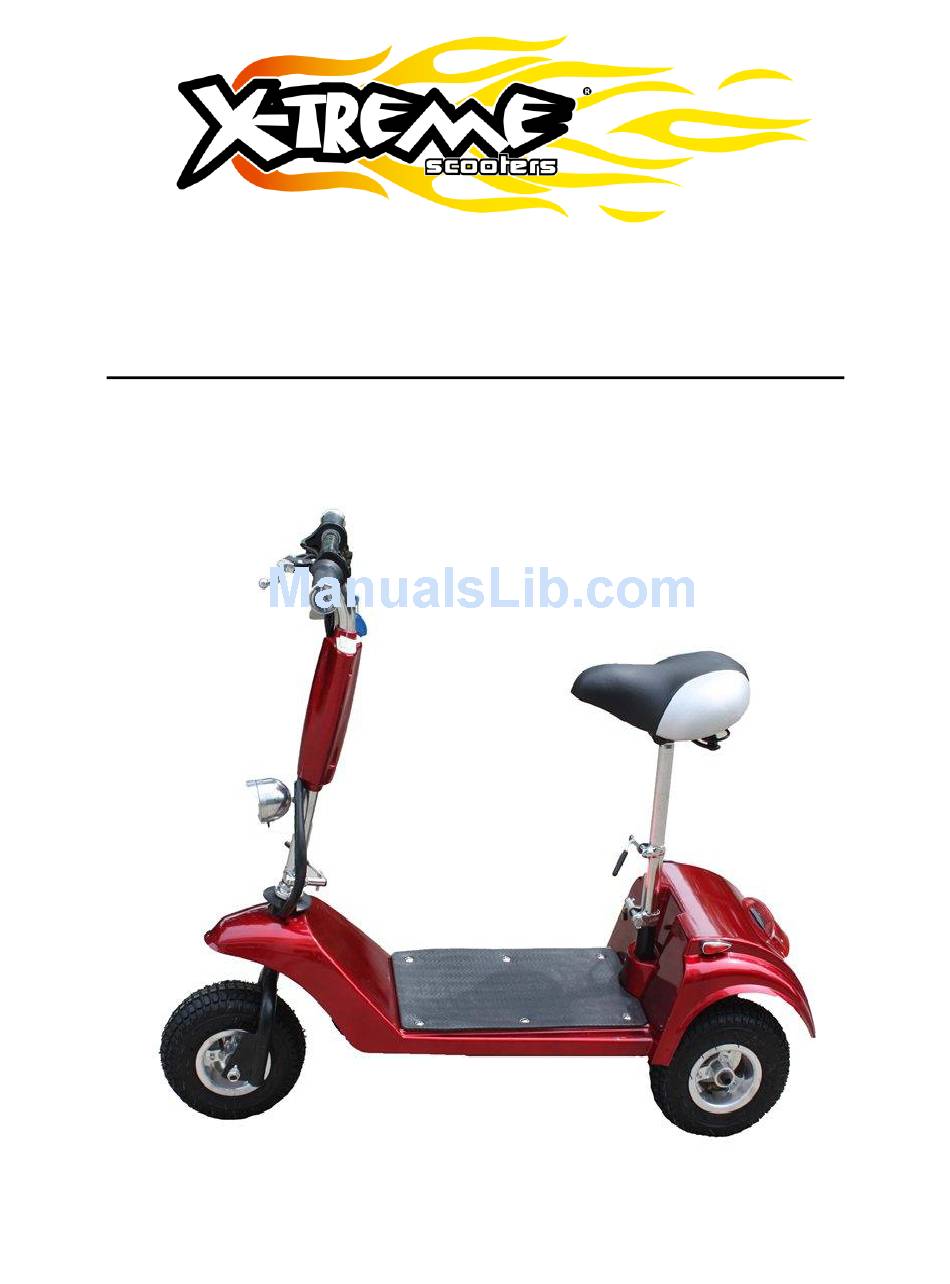

- Page 1 X-Treme™ Electric Scooters XMB-320 Electric Mobility Scooter (Photo may vary from actual) PLEASE READ ENTIRE MANUAL CAREFULLY BEFORE OPERATING...
-
Page 2: Battery Maintenance And Charging Instructions
IMPORTANT! BATTERY MAINTENANCE and CHARGING INSTRUCTIONS You MUST charge completely prior to initial use. (Follow charging instructions in your Product Handbook) Charge immediately after each use. Charge before storage. You must charge every 30 days if not in use. Charge the unit for 6-8 hours or until the light on the charger turns red & green. DO NOT allow this unit to deep discharge the battery. -
Page 3: Important Information
IMPORTANT PLEASE READ THIS BEFORE USING THIS PRODUCT WARNING This product does not conform to Federal Motor Vehicle Standards and is not intended for operation on public streets, roads or highways. Serious injury can result from the unsafe operations of this product. Operator can minimize these risks by using certain safety equipment such as: safety helmet, goggles, gloves, elbow and kneepads and appropriate footwear. -
Page 4: Quick Reference And Safety Guide
QUICK REFERENCE SAFETY GUIDE SAFETY GUIDE The recommended minimum age for riding this scooter is 16 years old. To avoid damage to the motor and footplate, do not overload the scooter. Never ride with more than one person. ... -
Page 5: Tech Support
DO NOT RETURN TO STORE! Do not use this vehicle for the first time until you have inflated the tires to the correct PSI and completely charged the battery. Failure to follow these instructions may damage your vehicle and void your warranty. For technical support CALL OR GO ONLINE 1-253-777-0690... -
Page 6: Table Of Contents
Table of Contents Battery Maintenance and Charging Instructions……………………………………………… 2 Important Information……………………………………………………………………………. 3 Quick Reference and Safety Guide……………………………………………………………. 4 Tech Support……………………………………………………………………………………… 5 Table of Contents………………………………………………………………………………… 6 Riding Safety……………………………………………………………………………………… 7-8 Safety Basics: Do’s & Don’ts……………………………………………………………. 7 Operating Reminders and Suggestions……………………………………………….. 7-8 Wet Weather Riding……………………………………………………………………… 8 Night Riding………………………………………………………………………………. -
Page 7: Riding Safety
Always wear shoes that will stay on your feet and will stay on the floorboard. Wear bright, visible clothing that is not so loose that it can catch on moving parts of the XMB-320 or objects at the side of the road or trail. -
Page 8: Wet Weather Riding
Ride at night only if necessary. Slow down and use familiar roads with street lighting, if possible. Other Reminders The XMB-320 works best on level ground. Use caution while going down an incline, such as a hill or a ramp. Hill climbing and repeated acceleration/braking will exhaust the battery much more rapidly. -
Page 9: Getting Started
Getting Started 1. Open scooter carton and remove your XMB-320. Inside you will find the following contents: 1. X-Treme XMB-320 Mobility Scooter 2. User Manual 3. Tool Kit 4. 24V UL Battery Charger 2. Make sure your handlebar components are as shown in... -
Page 10: Riding
2. Turn the Ignition Key to the ON Position. 3. Gently twist on the Throttle Grip on the right side of the handlebars. The XMB-320 will begin to move on its own. Your scooter has a variable speed throttle. You can control the speed of your scooter by the how far you twist the hand throttle. -
Page 11: Troubleshooting
Daily Maintenance Perform each time you ride your XMB-320 Clean the exterior of the unit with a soft, damp rag. (DO NOT WASH WITH A HOSE) Check that all nuts and bolts are securely tightened. -
Page 12: Wiring Diagram
WIRING DIAGRAM... - Page 13 DO NOT RETURN TO STORE! IF YOU NEED HELP CALL OR GO ONLINE 1-253-777-0690 www.x-tremescooters.com/support/ For General Information or Parts Visit www.x-tremescooters.com Revised 6/12/13...
