Summary of Contents for X-TREME X-140

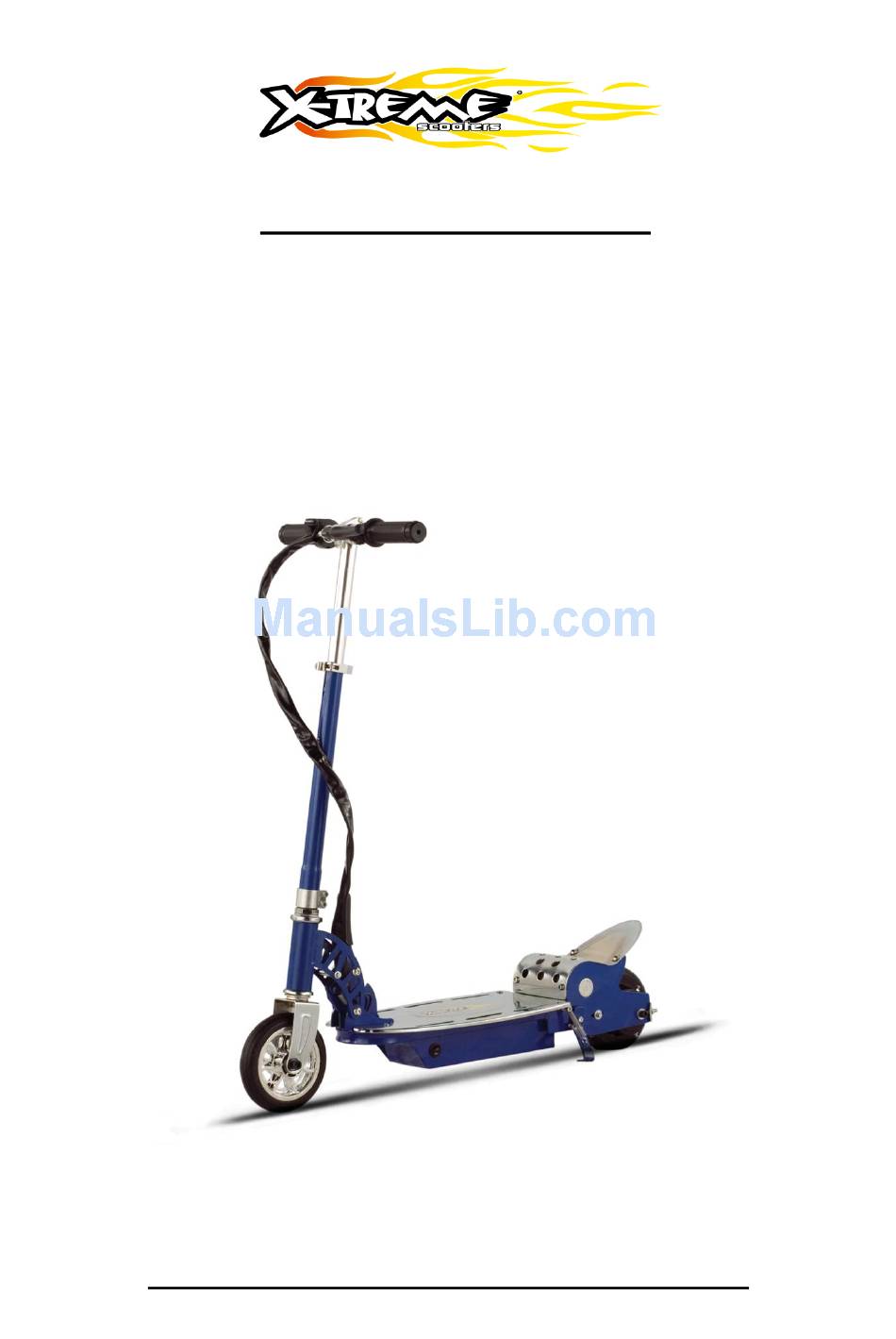

- Page 1 X-Treme Electric Scooters X-140 Electric Scooter Owner’s Manual PLEASE BE SAFE WHEN RIDING ALWAYS WEAR A HELMET AND OBEY ALL LAWS! Page1...
-
Page 2: Important Information
Failure to follow these INSTRUCTIONS will VOID YOUR WARRANTY! This PRODUCT IS NOT INTENDED FOR EXTREME or OFF-ROAD Use! Please take care of your X-140! DO NOT JUMP or ABUSE THIS PRODUCT! DO NOT RIDE IN WET/ICY CONDITIONS! Failure to follow these instructions will... - Page 3 IMPORTANT PLEASE READ THIS BEFORE USING THIS PRODUCT READ THIS FIRST! WARNING This product does not conform to Federal Motor Vehicle Standards and is not intended for operation on public streets, roads or highways. Serious injury can result from the unsafe operations of this product. Operator can minimize these risks by using certain safety equipment such as: safety helmet, goggles, gloves, elbow and kneepads and appropriate footwear.
-
Page 4: Quick Reference
Avoid unintentional starts by turning the scooter off while not in use. To avoid the risk of a short circuit in the electrical parts, do not use your X-Treme Electric scooter in the rain and never spray or wash off your scooter with water. ... -
Page 5: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION…………………………………….…………...……………………………… 2-3 QUICK REFERENCE……………………………………………………………………………………. …… 4 TABLE OF CONTENTS……………………………….…………….………………………………………… 5-6 GETTING TO KNOW YOUR X-TREME X-140………………….………………………………………….. 8 PACKAGE CONTENTS…………………………………………….…………………………………………. 9 GETTING STARTED………………..……………………………...………………………………………….. 9 ASSEMBLY……………………………………………………………………........9 FUSE INSTALLATION…………………………………………………………………………………… 10 CHARGING……………………………………………………………………........10 RIDING, STOPPING & BRAKING…………………………..………………………………………………... 11 FOLDING/STORAGE & BRAKING………………………………………………........11 ADJUSTING THE BRAKES...…………..………………………….…………………………………………... - Page 6 TROUBLESHOOTING: LOOSE WIRE?..................20 TROUBLESHOOTING: SCOOTER WON’T RUN, CHARGER LIGHT STAYS GREEN………… 20 TROUBLESHOOTING: SCOOTER WON’T RUN, CHARGER LIGHT STAYS RED & GREEN… 20 HOW TO GUIDE………………………………………………………………………………………………21-27 HOW TO START SCOOTER………………………………………………………………………….. 21 HOW TO REPLACE/INSTALL BELT…………………………………………………………………. 21 HOW TO ADJUST CHAIN DRIVE BELT TENSION…………………………………………………21-22 HOW TO ADJUST DRUM BRAKES…………………………………………………………………..
- Page 7 Failure to follow these instructions may damage your vehicle and void your warranty. CALL TOLL FREE OR GO ONLINE 1-253-777-0690 www.x-tremescooters.com/support/ For General Information or Parts Visit www.x-tremescooters.com GETTING TO KNOW YOUR X-TREME X-140 Page7...
-
Page 8: Getting To Know Your X-Treme X-140

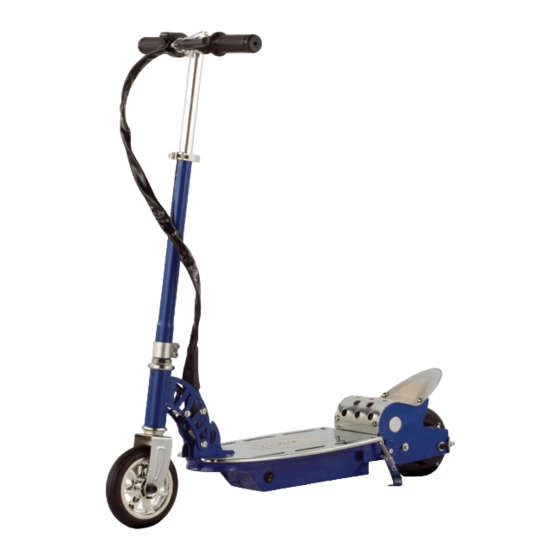

Getting To Know Your X-140 Scooter (Photo’s may vary) Page8... -
Page 9: Package Contents
PACKAGE CONTENTS Your X-Treme X-140 comes with the following items in the box. Please locate all of the following: The X-Treme X-140 Scooter 24V Battery Charger Tool Kit Product Handbook GETTING STARTED Please read and understand these instructions and the OPERATING... -
Page 10: Fuse Installation
Fuse Installation Your scooter comes with a 20amp fuse that may need installed if not done so already at the factory. Follow the instructions below to properly install the fuse before attempting to use your scooter. Locate the 20amp glass fuse that came with your scooter. Locate the fuse holder on the front of the scooter frame under the footplate. -
Page 11: Riding, Stopping & Braking
3. Push the on/off switch (located on the left side of the scooter frame under the footplate) to the ON position. 4. Put one foot on the deck of the X-140 while pushing off with the other foot, gently rotate the THROTTLE GRIP, on the right side of the handlebars. The X-140 will begin to move on its own power. -
Page 12: Adjusting The Brakes
With continued use the squeak should go away. TIRE AND WHEELS The X-Treme X-140 used different rim and tire assemblies on the front and rear wheels. Front wheel is a hard rubber wheel. The back wheel is a hard rosin wheel. -
Page 13: Maintenance & Adjustments
MAINTENANCE RECOMMENDED TOOLS To adjust and service the X-Treme X-140 you will need the following tools: Allen Wrenches: 3/4/5/6 mm Wrenches: 8/10/13 mm Open end wrench Large Adjustable Crescent Wrench Philips Head Screwdrivers Oil, Grease or Lubricant ADJUSTING THE BELT The belt will come adjusted from the factory. -
Page 14: General Information/Tech Support
For additional questions, service instructions, further information and important phone numbers, please go to the X-Treme website at www.x-tremescooters.com Thank you for purchasing an X-Treme X-140 and please tell your friends how much fun you’re having on the X-Treme X-140... - Page 15 DO NOT RETURN TO STORE! IF YOU NEED HELP CALL OR GO ONLINE 1-253-777-0690 www.x-tremescooters.com/support/ For General Information or Parts Visit www.x-tremescooters.com Page15...
-
Page 16: Troubleshooting
Troubleshooting: No Power In this situation we will assume that the battery has been charged or allowed to stand for several hours (a battery will normally self-charge up to a point and make the scooter power up for a fair distance). There are generally two main suspects: 1. -
Page 17: Troubleshooting: Scooter Takes Off, Will Not Stop
to the cell? Similar type tests can be performed using a 24 volt battery cell, too. WARNING! Batteries contain acid that can explode, or the vapors ignite from an arc. Batteries produce current and voltage that can burn you when a shorted circuit occurs. Be absolutely sure you know what you are doing before trying any tests to eliminate a component from consideration of being defective!!! 3. -
Page 18: If They Are Functionaing Properly
Troubleshooting: How To Check Charger, Battery & Controller To See If They Are Functioning Properly Set the Main On/Off switch in the OFF position. 1) Plug Charger into 110 Volt outlet Only: Does the Green light come on solid? 2) With Charger still plugged into the 110 Volt outlet plug into the scooter: Does the Light stay Green or begin to alternate Green/Red? Charger Lights: Solid Green = Charging... -
Page 19: Troubleshooting: Could It Be A Bad Connection To Terminal
Troubleshooting: Could It Be A Bad Connection To Terminal? We've have found at times when the steps have been taken do not resolve the issue, it's commonly a wire to terminal issue. Possibly when a terminal was soldered to a wire end the connection was not good. -
Page 20: Troubleshooting: Loose Wire
Troubleshooting: Loose Wire? Please check the wires in your battery and controller area. Give each wire at the connection a firm but gentle tug pulling away from the connection. Look for any loose, bare, blackened, broken, or disconnected wires. 1. Check the wires at the rear of the charging socket 2. -
Page 21: How To Guide
How To Start Scooter When starting the scooter, be sure the fuse in in scooter. Please make sure the battery is charged. When ready to start scooter squeeze left brake handle while starting scooter. There is a safety switch in the left brake handle to start scooter. How To Replace/Install Belt 1) Loosen adjuster nuts and push wheel forward to gain slack in the belt. -
Page 22: How To Adjust Drum Brakes
4) Adjust the belt until there is very little deflection when pushing down in middle of your belt. 5) These bolts also controls wheel alignment, be sure to center the wheel in the center of frame. 6) After you have adjusted your belt and aligned your wheel tighten the axle nuts. How To Adjust Drum Brakes 1) First, loosen the brake handle adjustment on handlebars to fully outward. -
Page 23: How To Check Charger Light Status & Understand Light Sequence
4) Plug in charger to wall socket and a green light should appear on charger. 5) Next plug charger into scooter, charger should turn red when connections are correct. 6) Reattach foot deck. Let unit charge for 8 hrs. How To Check Charger Light Status & Understand Charge Light Sequence When you plug your charger into the wall the light should turn Green. -
Page 24: How To Check Charger Output
4. Perform a test run with the rear wheel off of the ground. 5. If it does not run check the wires on the back side of the fuse socket for secure connections. Check all other wire connections at this time. How To Check Charger Output Tools Needed –... -
Page 25: How To Replace A Controller
small tab that bends outward. 2) Reach inside the front of the connector with a dental pick or jeweler’s screwdriver and bend the tab in then pull the metal pin out the back of the connector. 3) Reinsert the new wires into the white connectors. How To Replace A Controller 1) Remove Main Fuse. -
Page 26: How To Test Throttle Voltage
2) Locate the Connector from the Battery to the Controller and label the male & female sides for reference. 3) Locate the Connector coming from the Motor to the Controller and label the male & female sides for reference. 4) Unplug the Batter and Motor connectors and plug them Directly into each other. **Caution** This will bypass the controller and put power directly to the motor. -
Page 27: How To Install Seat Post
If you did Not read the +0.8 to +4 volts then the throttle is bad. How To Install Seat Post Remove the small black plug in the seat post receiver. It might be pushed down inside. This happens during shipping and is normal. After you remove the plug, you may want to squeeze the post back together a little bit. -
Page 28: Diagrams
Battery Wiring Diagram Page28... -
Page 29: Wiring Diagram
Page29...
