Back Panel Connections

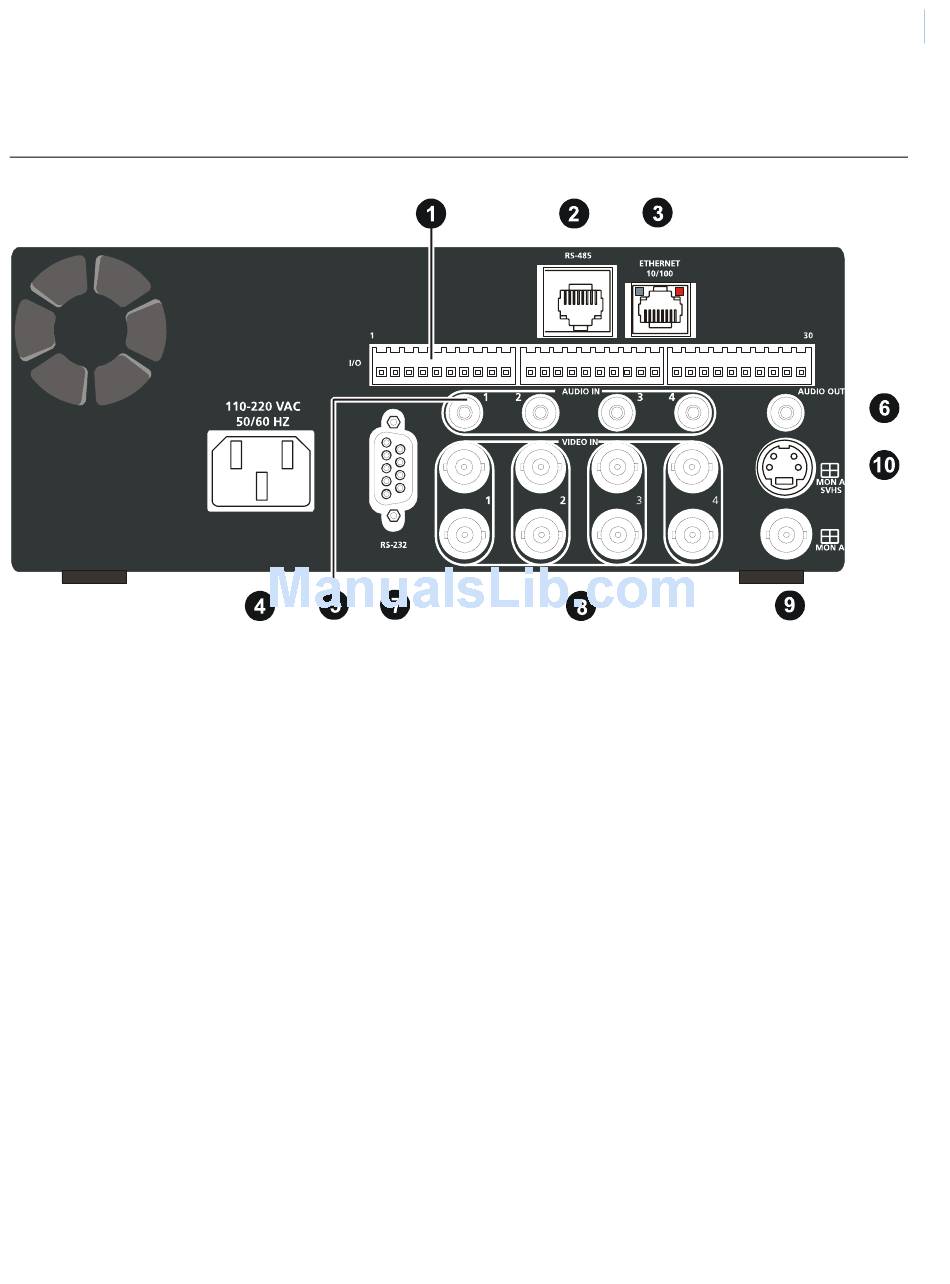

Figure 3. Back Panel
1. I/O Connector: 30-pin connector for alarm input and output.
2. RS-485 Port: Not used at this time.
3. Ethernet Port: For connecting to a LAN or WAN. Used for operating the unit over the Internet with
the VSR keyboard software.
4. Power Connector: For connecting the power cord.
5. Audio In: 4-channel line-level audio input with RCA style connectors.
6. Audio Out: Line-level audio output with RCA style connector.
7. RS-232 Serial Port: Connects to a PC's serial port and can be used to configure the SymDec 4 with
the VSR keyboard software.
8. Video In/Out: Composite video input/output with BNC style connector.
9. Composite Monitor A output: Composite video output with BNC style connector for monitor A.
10. SVHS Monitor A output: SVHS video output with for monitor A.
