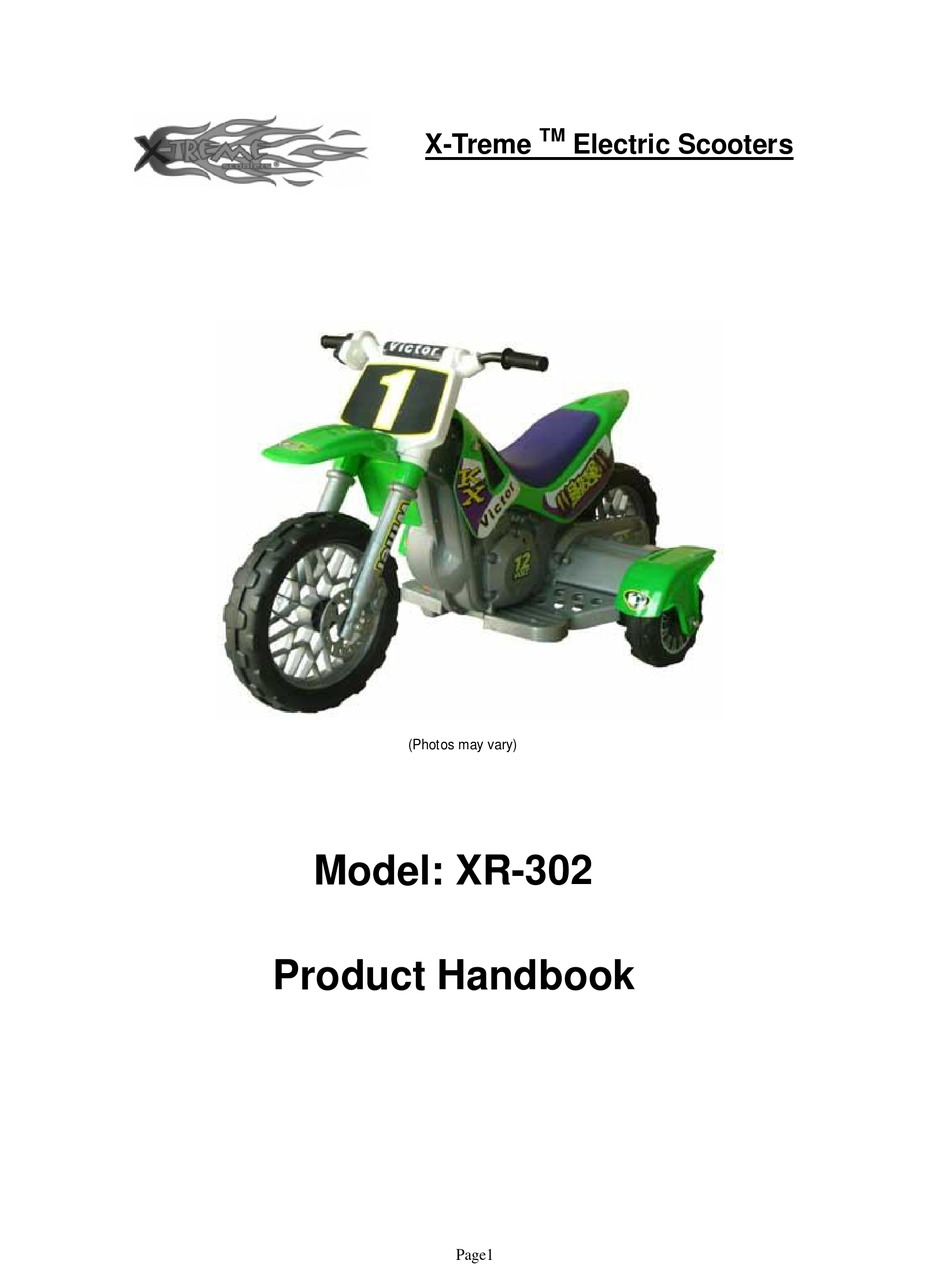

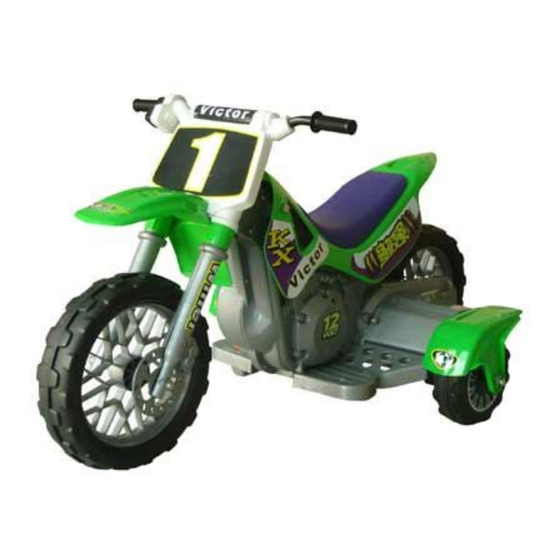

- Page 1 X-Treme Electric Scooters (Photos may vary) Model: XR-302 Product Handbook PLEASE BE SAFE WHEN RIDIN Page1...
-
Page 2: Information
Failure to follow these INSTRUCTIONS will VOID YOUR WARRANTY! This PRODUCT IS NOT INTENDED FOR EXTREME or OFF-ROAD Use! Please take care of your XR-302! DO NOT JUMP or ABUSE THIS PRODUCT! DO NOT RIDE IN WET/ICY CONDITIONS! Failure to follow these instructions will... - Page 3 IMPORTANT PLEASE READ THIS BEFORE USING THIS PRODUCT READ THIS FIRST! WARNING This product does not conform to Federal Motor Vehicle Standards and is not intended for operation on public streets, roads or highways. Serious injury can result from the unsafe operations of this product. Operator can minimize these risks by using certain safety equipment such as: safety helmet, goggles, gloves, elbow and kneepads and appropriate footwear.
-
Page 4: Quick Reference
Avoid unintentional starts by turning the scooter off while not in use. To avoid the risk of a short circuit in the electrical parts, do not use your X-Treme Electric scooter in the rain and never spray or wash off your scooter with water. ... -
Page 5: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION…………………………………….………………………...……2-3 QUICK REFERENCE……………………………………………………………….4 TABLE OF CONTENTS……………………………….…………….………………5 GETTING TO KNOW YOUR X-TREME XR-302………………..………...……..6 PACKAGE CONTENTS…………………………………………………………….7 GETTING STARTED………………..……………………………..………………..7 ASSEMBLY………………………………………………………………….…..…7-9 CHARGING……………………………………………………………..………….10 OPERATING INSTRUCTIONS…………………………………………………….9 IMPORTANT SAFETY GUILDINES..…………………………….………………10 MAINTENANCE…………………………………………………………………….11 OTHER QUESTIONS….…………………………………………………………..11 GENERAL INFORMATION/TECH SUPPORT………………………………….12 Page5... -
Page 6: Getting To Know Your X-Treme Xr-302
GETTING TO KNOW YOUR X-TREME XR-302 (Photo’s may vary) Recommended Age 3-8yrs Speed 1.5mph – 3mph Maximum Weight 85lbs Battery 6V 10AH x 2 Assembled Size Charge Time 6-8 hours Acceleration Foot Push Button Charge AC110V Fuse Speed Dual speed switch... -
Page 7: Package Contents
PACKAGE CONTENTS Your X-Treme XR-302 comes with the following items in the box. Please locate all of the following: 1. Body, 1pc 8. Front & Rear Wheels, 2pcs 2. Handlebar Assembly, 1pc 9. Side Power Wheels, 2 pc 3. Front Fender, 1pc 10. - Page 8 Finish the power wheel installation by attaching the corresponding wire clips on the inside of the body as shown. Installation of Rear Wheel 1. Locate the rear axle, remove the two nut caps and set aside. 2. Insert the axle thru the rear wheel being sure to insert the black spacers in the correct orientation.
-
Page 9: Operating Instructions
Attach the wires coming from the body to the wires coming from the handlebar assembly. Your XR-302 is now complete and ready for use. Operation Instructions *Be sure all assembly is complete before riding. *Disconnect charger from scooter and store properly. -
Page 10: Charging
Charging Instructions ***WARNING*** An adult should perform charging of the scooter. TO AVOID ELECTRIC SHOCK, NEVER ALLOW CHILDREN TO HANDLE THE CHARGER OR ATTEMPT TO PLUG THE BATTERY CHARGER INTO A WALL OUTLET! 1. Locate the enclosed battery charger. Plug the charger into a wall outlet. -
Page 11: Maintenance
For additional questions, service instructions, further information and important phone numbers, please go to the X-Treme website at www.x-tremescooters.com Thank you for purchasing an X-Treme XR-302 and please tell your friends how much fun you’re having on the X-Treme XR-302... -
Page 12: General Information/Tech Support
For General Information or Parts Visit www.x-tremescooters.com For Technical Support or Assistance Visit www.x-tremescooters.com/support/ Page12...
