Pppoe/Pppoa - Draytek Vigor2800 Series User Manual

Protocol/Encapsulation
Fixed IP
IP Address
Subnet Mask
Default Gateway
Primary DNS
Second DNS
2 2 . . 2 2 . . 2 2 P P P P P P o o E E / /
PPPoE stands for Point-to-Point Protocol over Ethernet. It relies on two widely accepted
standards: PPP and Ethernet. It connects users through an Ethernet to the Internet with a
common broadband medium, such as a single DSL line, wireless device or cable modem. All
the users over the Ethernet can share a common connection. And the PPPoA stands for
Point-to-Point Protocol over ATM. PPPoA uses the PPP dial-up protocol with ATM as the
transport.
PPPoE or PPPoA is used for most of DSL modem users. All local users can share one PPPoE
or PPPoA connection for accessing the Internet. Your service provider will provide you
information about user name, password, and authentication mode.

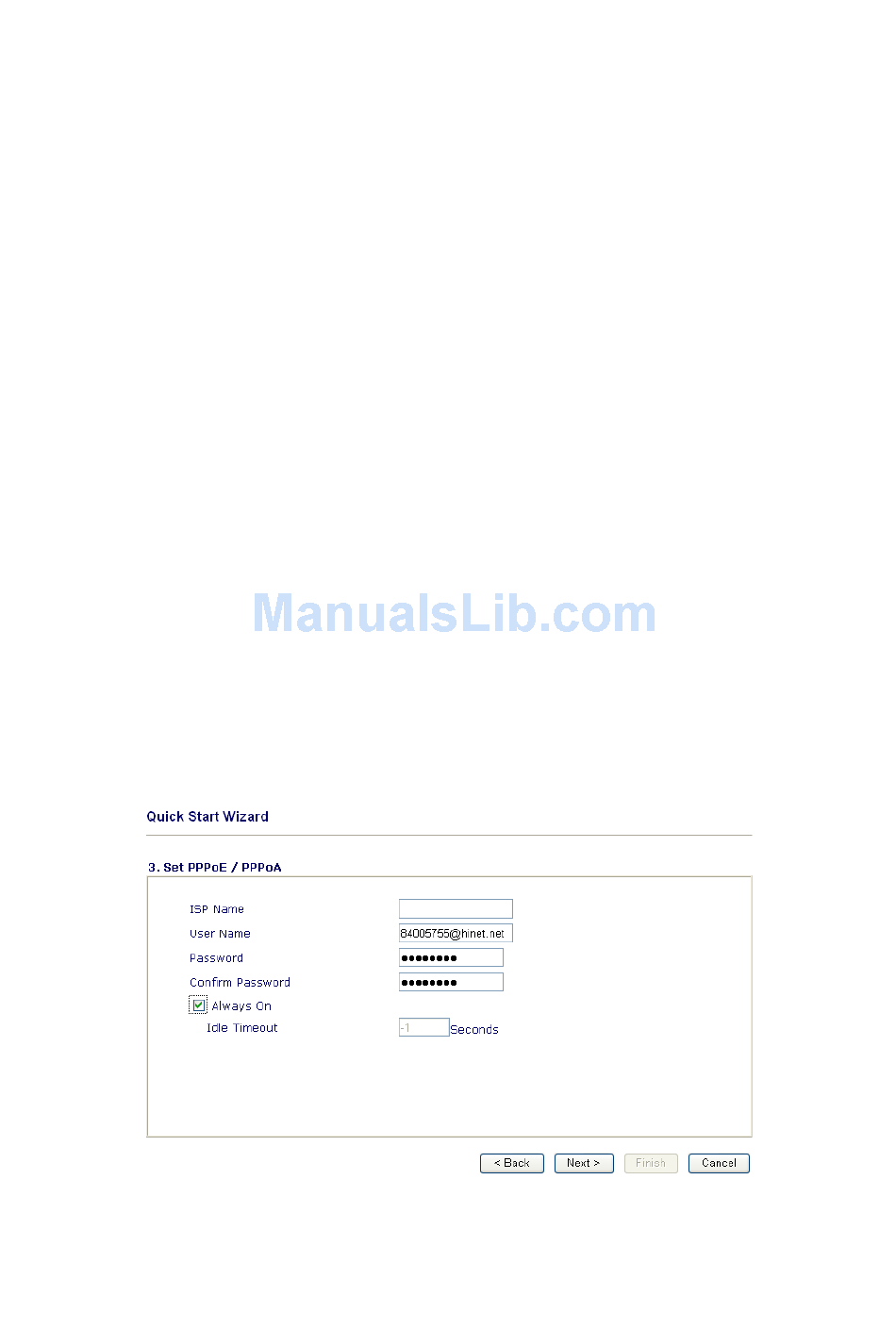

If your ISP provides you the PPPoE or PPPoA connection, please select PPPoE or PPPoA
for this router. The following page will be shown:
ISP Name
User Name
10
travels through the network. A virtual channel is a logical
connection between two end devices on the network.
Select an IP mode for this WAN interface. There are several
available modes for Internet access such as PPPoE, PPPoA,
Bridged IP and Routed IP.
Click Yes to specify a fixed IP for the router. Otherwise, click No
(Dynamic IP) to allow the router choosing a dynamic IP. If you
choose No, the following IP Address, Subnet Mask and Default
Gateway will not be changed.
Assign an IP address for the protocol that you select.
Assign a subnet mask value for the protocol of Routed IP and
Bridged IP.
Assign an IP address to the gateway for the protocol of Routed IP
and Bridged IP.
Assign an IP address to the primary DNS.
Assign an IP address to the secondary DNS.
P P P P P P o o A A
Assign a specific name for ISP requirement.
Assign a specific valid user name provided by the ISP.
Vigor2800 Series User's Guide
