ATT EN T I O N !
There has been an update to the assembly process of your Horizon Fitness treadmill. Please refer to these
instructions for proper assembly. The remaining steps of the assembly process shall follow the original
procedures as found in the owner's manual.

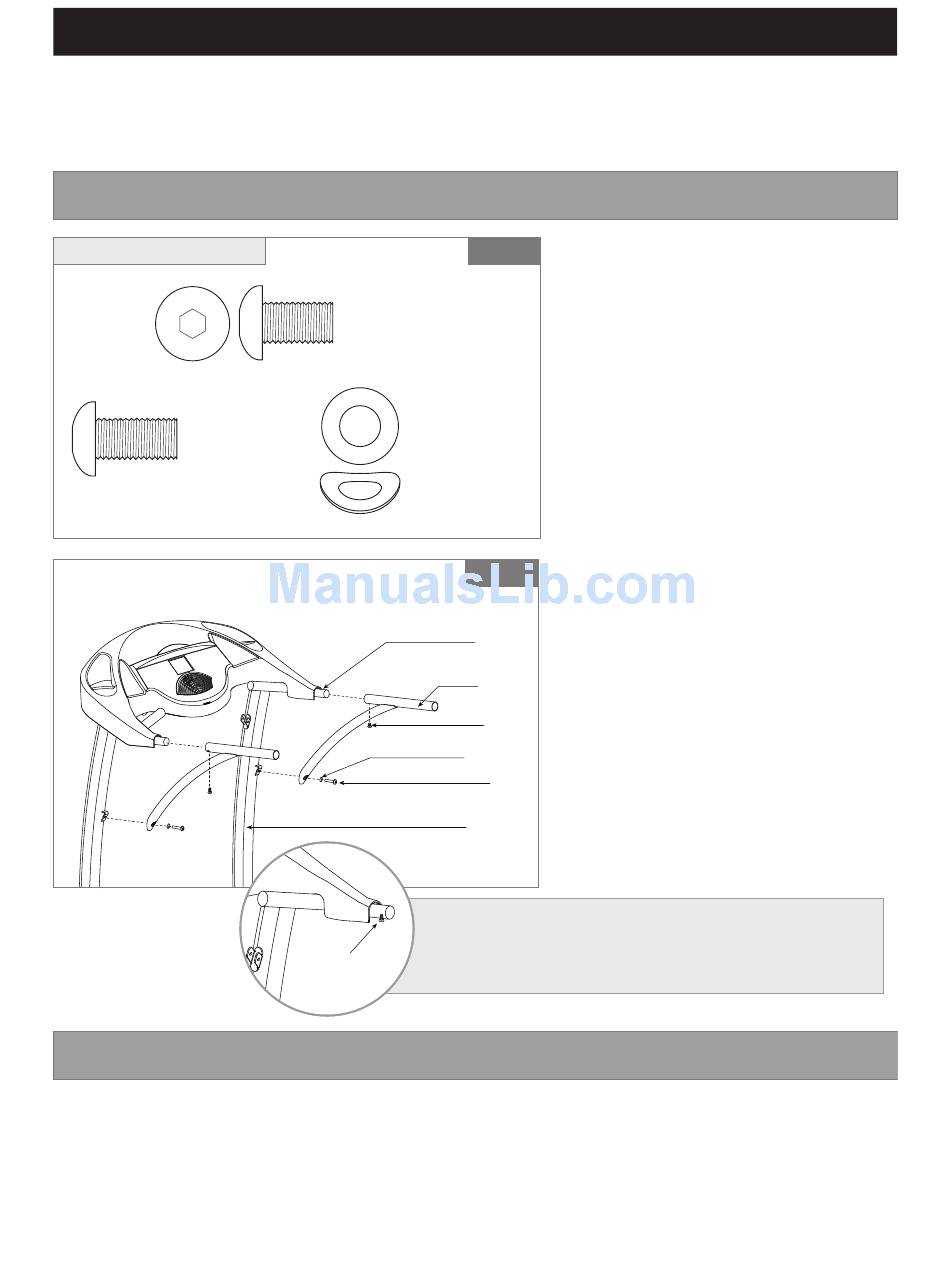

AS SE MBLY S T E P 3-A
HARDWARE BAG 3 CONTENTS :
top view
BOLT (F)
15 mm
Qty: 2
AS SEMBLY S T E P 4
NOTE: If there are any alignment issues encountered in step C, please note that the right and left support
bars can be reversed to improve alignment. For example, the right support bar can be used on the left side
and vice versa.
If you experience any problems during this assembly process, please contact Horizon Fitness at
1.800.244.4192.
( T 71 m ode l)
BOLT (E)
12 mm
Qty: 2
ARC WASHER (D)
Qty: 2
angle view
ARC WASHER (D)
CONSOLE MAST
The CONSOLE PLASTIC ATTACH SCREW may need to be
loosened in order to slide the handlebar extension under
CONSOLE PLASTIC
the console assembly plastic as described in step B.
ATTACH SCREW
A Open HARDWARE BAG 3.
T71
B Slide the HANDLEBAR EXTENSION
onto the CONSOLE HANDLEBAR.
You will need to slide the
HANDLEBAR EXTENSION under
the console assembly plastic by
slightly lifting the plastic in order
to attach the connection bolts.
C Insert BOLT (E) into HANDLEBAR
EXTENSION.
T71
D Insert BOLT (F) and ARC WASHER
(D) through bottom hole of
CONSOLE
HANDLEBAR
HANDLEBAR EXTENSION into
HANDLEBAR
CONSOLE MAST.
EXTENSION
BOLT (E)
E Tighten all bolts.
F Repeat on other side.
BOLT (F)
