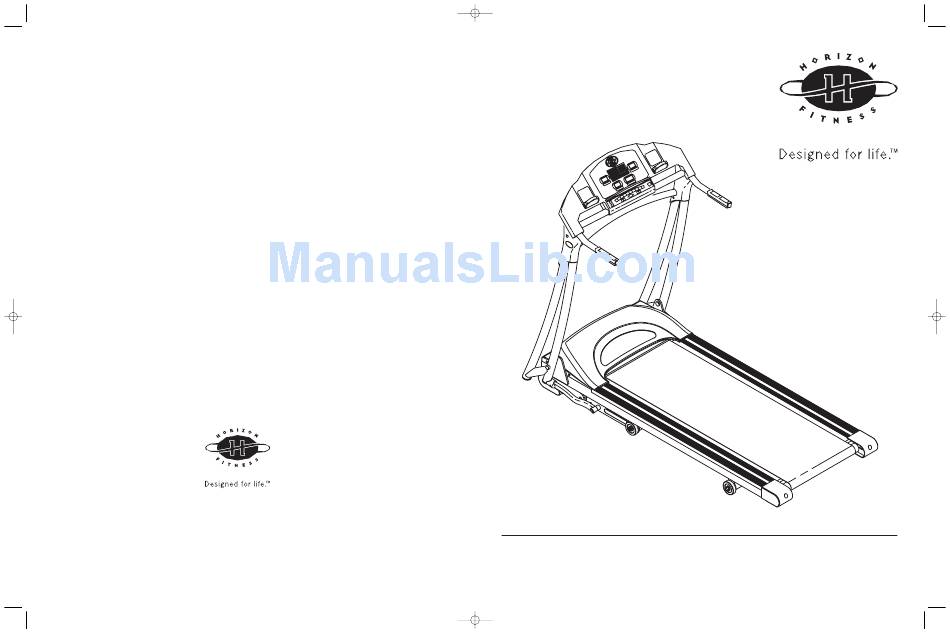

- Page 1 T25_T35 owner’s guidev1.0.qxd 6/17/2004 2:28 PM Page 1 HZ SERIES HORIZON FITNESS | 800 BURTON BOULEVARD | DEFOREST, WI 53532 Phone 1-800-244-4192 Fax 1-608-842-1660 www.horizonfitness.com Treadmill User’s Guide HZ Series. Rev. 1.1...
- Page 2 T25_T35 owner’s guidev1.0.qxd 6/17/2004 2:28 PM Page 2...
-
Page 3: Table Of Contents
ASSEMBLY ........... . .7 TREADMILL OPERATION & ADJUSTMENT ......9 CONSOLE FEATURES &... -
Page 4: Important Precautions
Page 4 Important Precautions Monthly Log Sheets SAVE THESE INSTRUCTIONS Read all instructions before using this Treadmill. When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this treadmill WARNING WARNING! Connect this exercise product to a properly grounded outlet only. - Page 5 • Keep children off of treadmill at all times. • The treadmill should only be used on a level surface and is intended for indoor use only. The treadmill should not be placed in a garage, patio, or near water and should never be used while you are wet.
- Page 6 Owner’s Guide before using your new treadmill. WARRANTY REGISTRATION Your warranty card must be completed and sent to Horizon Fitness within thirty days of purchase or regis- tered online at www.horizonfitness.com, before a warranty claim can be processed. Please keep receipt with owner’s guide as it may be required for a warranty claim.
-
Page 7: Before You Begin
• Help In Countering Anxiety and Depression • An Improved Self Image The key to reaping these benefits is to develop the exercise habit. Your new treadmill will help you eliminate the obstacles that prevent you from getting in your exercise time. Inclement weather and darkness won't interfere with your workout when you use your treadmill in the comfort of your home. -
Page 8: Assembly
The enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. See owner’s guide for reference. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY! Place your treadmill on a level flat surface. It is recommended that you place a protective covering on your floor. - Page 9 SUPPORT. STEP 3: LOCK CONSOLE INTO PLACE STEP 4: Note: Use caution to avoid pinching the console ATTACH UPRIGHT SUPPORT COVERINGS. cable. STEP 3: ATTACH WATER BOTTLE HOLDERS AND SAFETY KEY. YOU ARE NOW READY TO PLUG IN THE TREADMILL.
-
Page 10: Treadmill Operation & Adjustment
DO NOT STAND ON THE BELT While you are preparing to use the treadmill, do not stand on the belt. Place your feet on the side rails before starting the treadmill. Start walking on the belt only after the belt has begun to move. - Page 11 As long as the sounds your treadmill makes are no louder that a normal conversational tone of voice, it is considered normal noise. If your treadmill is louder than this, you may want to call the Horizon Fitness Customer Service Center @ 1-800-244-4192. Sometimes an initial diagnosis can be made over the phone.
- Page 12 To eliminate this slipping, tension both the rear roller bolts with the appropriate size allen wrench, turning it 1/4 TURN to the right as shown. Try the treadmill again to check for slipping. Repeat if necessary, but NEVER TURN the roller bolts more than 1/4 turn at a time. The belt tension is set properly when the running belt stops slipping.
-
Page 13: Console Features & Display
T25_T35 owner’s guidev1.0.qxd 6/17/2004 2:28 PM Page 13 Horizon Fitness treadmills are designed to be reliable and easy to use. However, if you experience a problem, please reference the troubleshooting guide listed below. PROBLEM: The console does not light up. SOLUTION: Verify that the power cord is plugged in properly to the outlet, and that the treadmill switch is turned on. -
Page 14: Troubleshooting & Maintenance Procedures
Troubleshooting & Maintenance Procedures MAINTENANCE Cleanliness of your treadmill and its operating environment will keep maintenance problems and serv- ice calls to a minimum. For this reason, Horizon Fitness recommends that the following preventive maintenance schedule be followed. AFTER EACH USE (DAILY) Clean and inspect, following these steps: •... - Page 15 Once the desired time is selected, press the START button. FINISHING A WORKOUT When your workout is finished, the treadmill console will beep and ‘END’ will be flashing in the Time window. Your workout information will stay displayed on the console for 30 seconds before it will reset.
- Page 16 T25_T35 owner’s guidev1.0.qxd 6/17/2004 2:28 PM Page 16 SELECT Used to view your Calories and Laps during your workout. CALORIES Total Calories burned during your workout. DISTANCE Miles traveled during your workout. TIME Shown as Minutes:Seconds. View the time remaining or the time elapsed in your workout.
-
Page 17: Program Profiles
T25_T35 owner’s guidev1.0.qxd 6/17/2004 2:28 PM Page 17 Program Charts INTERVAL: Speed changes; time defaults to 30 minutes Level 1 2.5 3.0 3.0 4.5 3.0 4.0 3.0 5.0 3.0 5.0 3.0 5.0 3.5 5.0 3.5 5.0 3.5 5.0 3.5 5.0 3.0 5.0 3.0 5.0 3.0 4.5 3.0 4.0 3.0 2.5 Level 2 2.5 3.0 3.5 5.0 3.5 4.5 3.5 5.5 3.5 5.5 3.5 5.5 4.0 5.5 4.0 5.5 4.0 5.5 4.0 5.5 3.5 5.5 3.5 5.5 3.5 5.0 3.5 4.5 3.0 2.5 2.5 3.0 4.0 5.5 3.5 5.5 3.5 6.0 4.0 6.0 4.0 6.0 4.5 6.0 4.5 6.0 4.5 6.0 4.5 6.0 4.0 6.0 4.0 6.0 3.5 5.5 3.5 4.5 3.0 2.5... -
Page 18: Program Profiles
T25_T35 owner’s guidev1.0.qxd 6/17/2004 2:28 PM Page 18 Program Profiles T25 PROGRAMS: MANUAL Customized workout, with no default time INTERVAL Speed changes; time defaults to 30 minutes ROLLING Speed changes; time defaults to 30 minutes WEIGHT LOSS Elevation changes; time defaults to 30 minutes T35 PROGRAMS: MANUAL Customized workout, with no default time...
