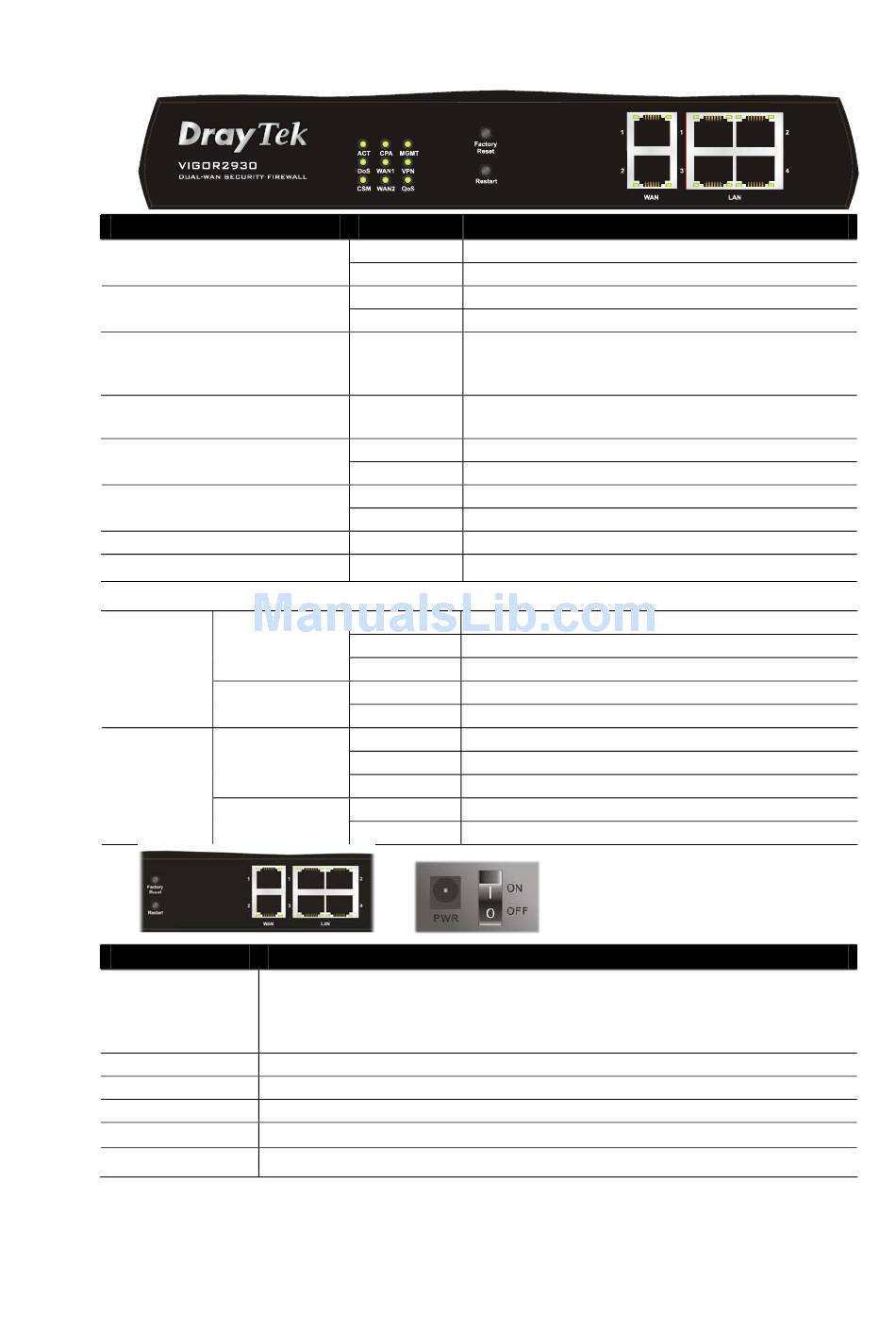

For Vigor2930 - Draytek Vigor2930 Series User Manual

1 . 2 . 1 F o r V i g
1 . 2 . 1 F o r V i g
LED
ACT (Activity)
DoS
CSM
CPA (Content Portal Authority)
WAN1/2
MGMT
VPN
QoS
LED on Connector
WAN 1/2
LAN 1/2/3/4
Interface
Factory Reset
Restart
WAN(1/2)
LAN (1-4)
PWR
ON/OFF
Vigor2930 Series User's Guide
o r 2 9 3 0
o r 2 9 3 0
Left LED
(Green)
Right LED
(Green)
Left LED
(Green)
Right LED
(Green)
Description
Restore the default settings. Usage: Turn on the router (ACT LED is blinking).
Press the hole and keep for more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button. Then the router will restart
with the factory default configuration.
Restart the router forcefully.
Connecters for remote networked devices.
Connecters for local networked devices.
Connecter for a power adapter.
Power Switch.
Status Explanation
Blinking The router is powered on and running normally.
Off The router is powered off.
On The DoS/DDoS function is active.
Blinking It will blink while deleting an attack.
On The profile of CSM (Content Security
Management) for IM/P2P application is active. (It
is enabled from Objects Setting >> CSM Profile).
On The Web Content Filter is active. (It is enabled
from Firewall >> Web Content Filter Setup)
On The WAN1 or WAN2 port is connected.
Blinking It will blink while transmitting data.
On The router is managed (handled) by Telnet.
Blinking It will blink while being managed by IE browser.
On The VPN tunnel is active.
On The QoS function is active.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is disconnected with 10Mbps.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is disconnected with 10Mbps.
3
