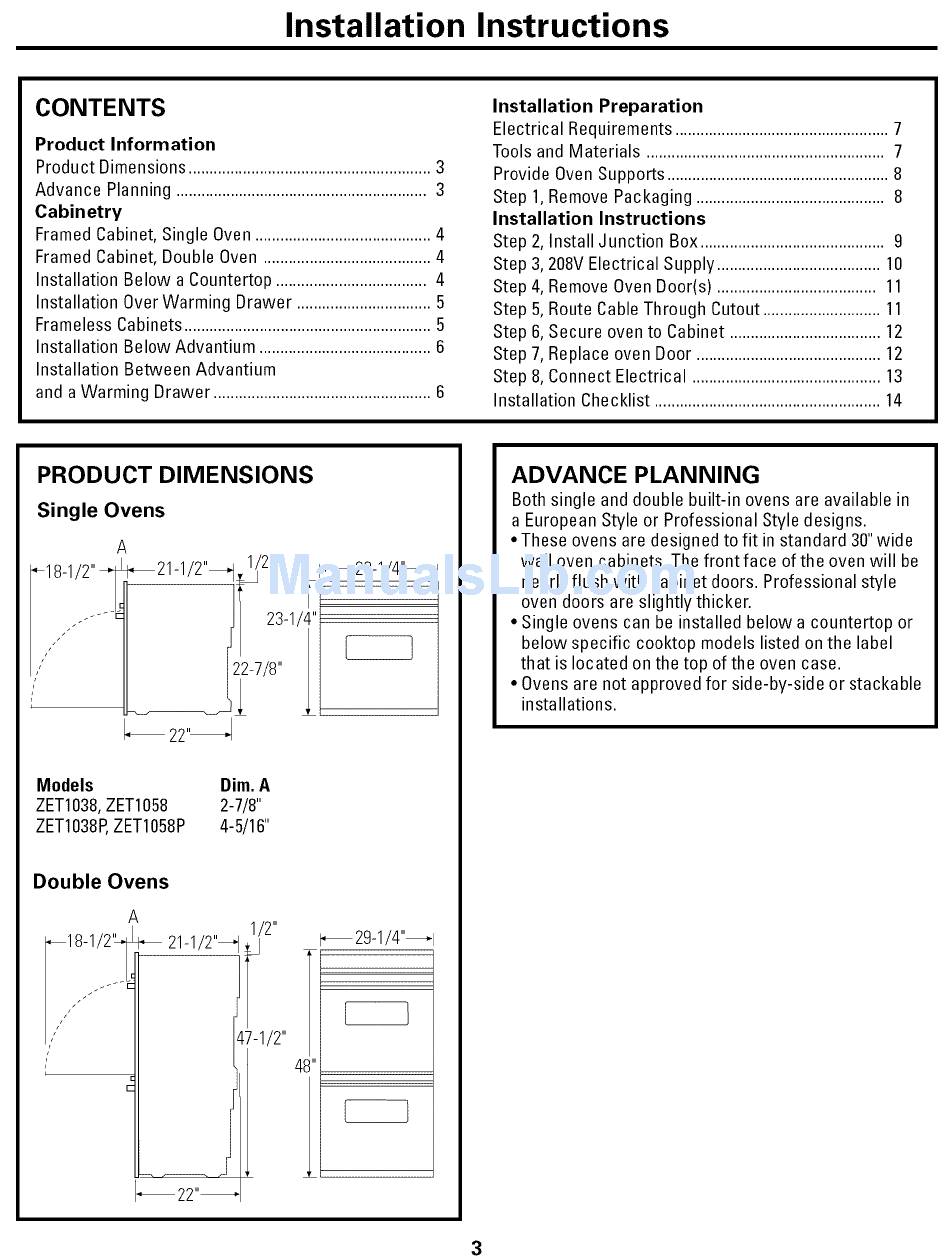

Installation Instructions
CONTENTS
Product Information
Product Dimensions ..........................................................3
Advance Planning ............................................................ 3
Cabinetry
Framed Cabinet, Single Oven .......................................... 4
Framed Cabinet, Double Oven ........................................ 4
Installation Below a Countertop .................................... 4
Installation Over Warming Drawer ................................ 5
Frameless Cabinets ...........................................................5
Installation Below Advantium ......................................... 6
Installation Between Advantium
and a Warming Drawer ....................................................6
Installation Preparation
Electrical Requirements ...................................................7
Tools and Materials ......................................................... 7
Provide Oven Supports .....................................................8
Step 1, Remove Packaging ............................................. 8
Installation Instructions
Step 2, Install Junction Box ............................................ 9
Step 3, 208V Electrical Supply ....................................... 10
Step 4, Remove Oven Door(s) ...................................... 11
Step 5, Route Cable Through Cutout ............................ 11
Step 6, Secure oven to Cabinet .................................... 12
Step 7, Replace oven Door ............................................ 12
Step 8, Connect Electrical .............................................13
Installation Checklist ......................................................14
PRODUCT DIMENSIONS
Single Ovens
18-1/2"
i
L_ 21-1/2"_,_/2''
Models Dim. A
ZET1038, ZET1058 2-7/8"
ZET1038P,ZET1058P 4-5/16"
Double Ovens
A
_18-1/2" _t_ 21-1/2 ''4
/
_22"_
4_
_29-1/4"_
_29-1/4"_
ADVANCE PLANNING
Both single and double built-in ovens are available in
a European Style or Professional Style designs.
• These ovens are designed to fit in standard 30" wide
wall oven cabinets. The front face of the oven will be
nearly flush with cabinet doors. Professional style
oven doors are slightly thicker.
• Single ovens can be installed below a countertop or
below specific cooktop models listed on the label
that is located on the top of the oven case.
• Ovens are not approved for side-by-side or stackable
installations.
3
