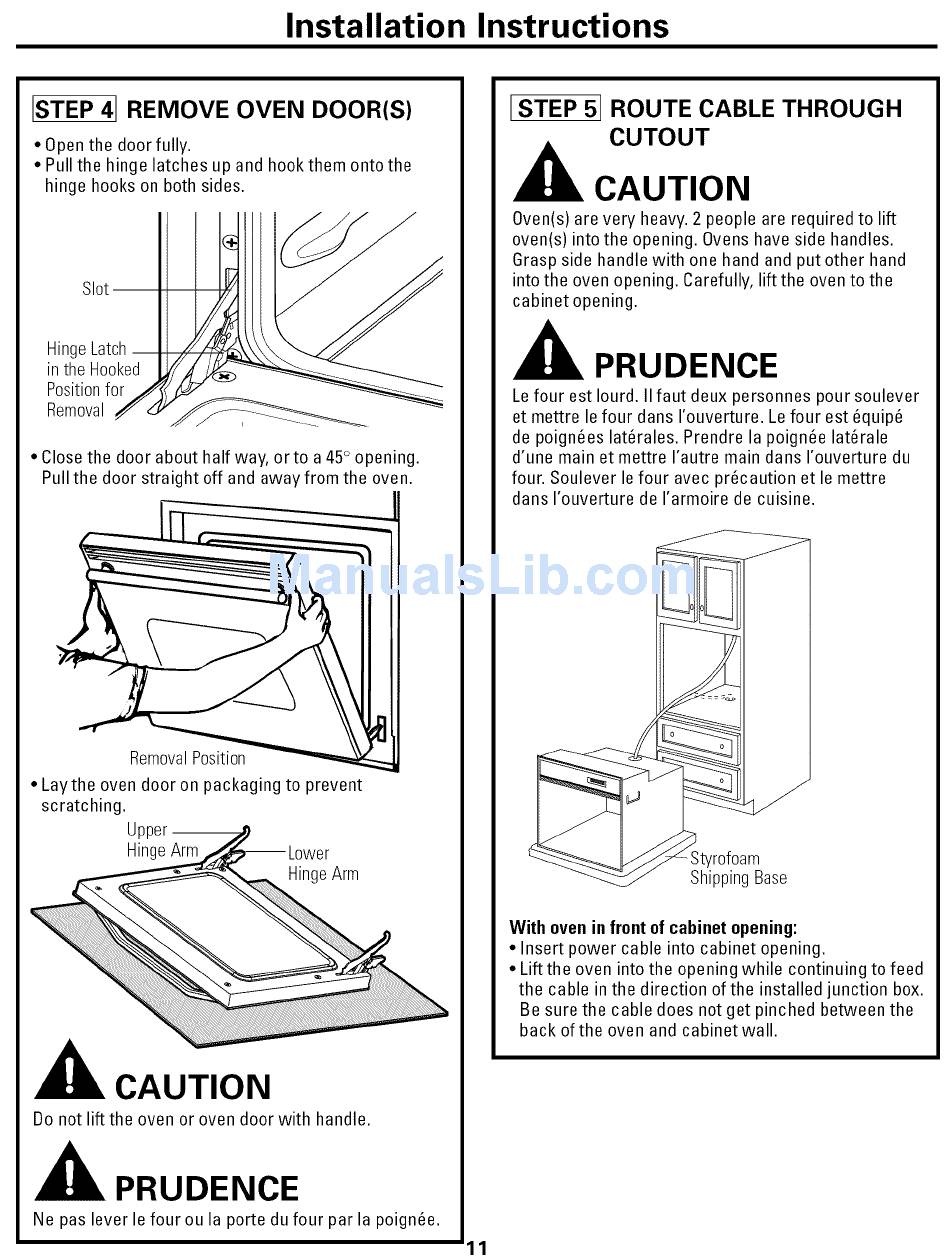

Installation Instructions
ISTEP41
REMOVE OVEN DOOR(S)
• Open the door fully.
• Pull the hinge latches up and hook them onto the
hinge hooks on both sides,
Hinge Latch
in the Hooked
Position for
Removal
• Close the door about halfway, orto a 45 ° opening.
Pull the door straight off and away from the oven,
RemovalPosition
• Laythe oven door on packaging to prevent
scratching.
Upper
Hinge Arm
Hinge Arm
CAUTION
Do not lift the oven or oven door with handle.
PRUDENCE
Ne pas lever le four ou la porte du four par la poign_e,
11
I STEP 51 ROUTE CABLE THROUGH
CUTOUT
CAUTION
Oven(s) are very heavy. 2 people are required to lift
oven(s) into the opening, Ovens have side handles,
Grasp side handle with one hand and put other hand
into the oven opening, Carefully, lift the oven to the
cabinet opening,
PRUDENCE
Le four est Iourd, II faut deux personnes pour soulever
et mettre le four dans I'ouverture, Le four est _quip_
de poign_es lat_rales, Prendre la poign_e lat_rale
d'une main et mettre I'autre main dans I'ouverture du
four. Soulever le four avec precaution et le mettre
dans I'ouverture de I'armoire de cuisine,
/rofoam
Shipping Base
With oven in front of cabinet opening:
• Insert power cable into cabinet opening.
• Lift the oven into the opening while continuing to feed
the cable in the direction of the installed junction box.
Be sure the cable does not get pinched between the
back of the oven and cabinet wall,
