Installation Preparation

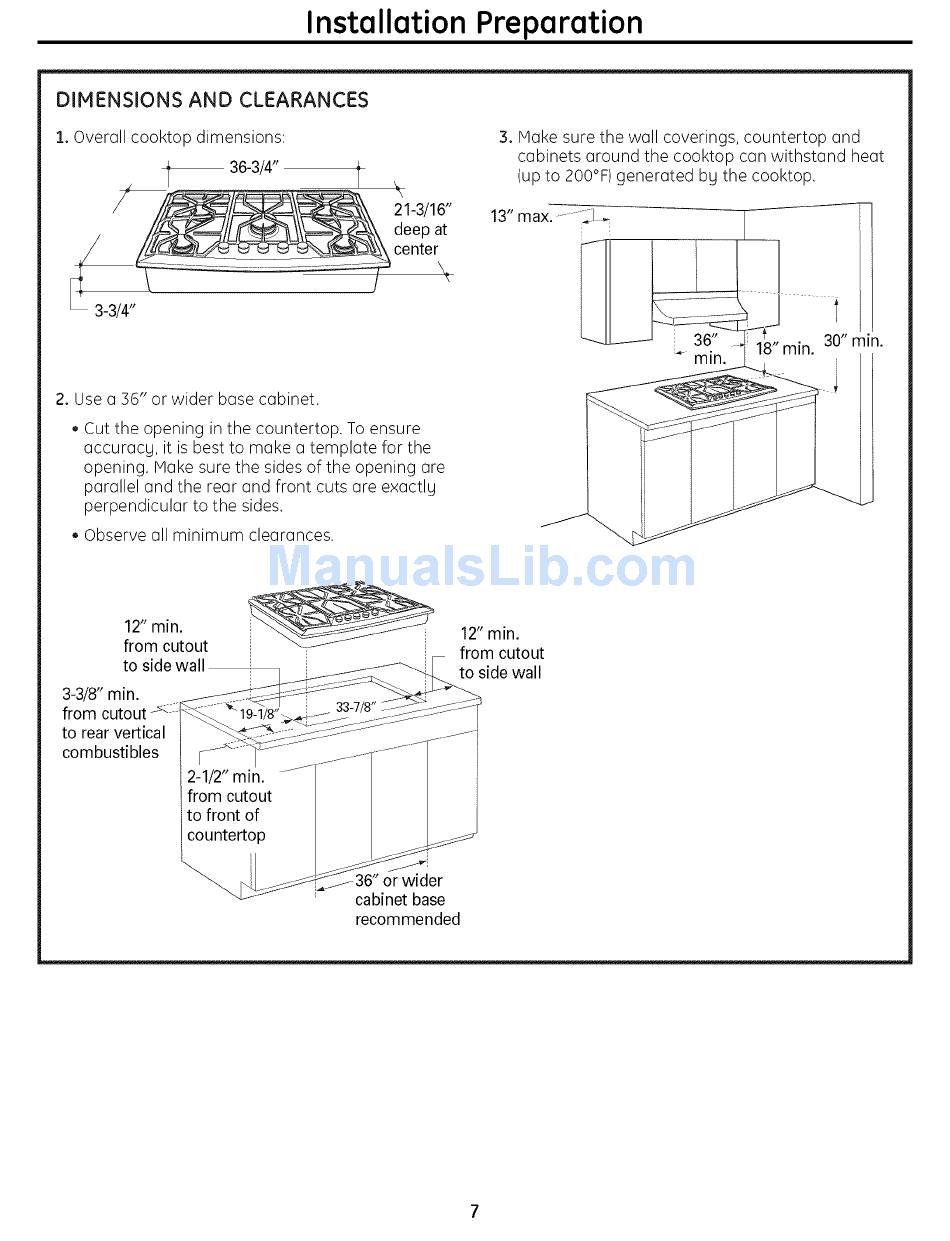

DIMENSIONS AND CLEARANCES
1. Overall cooktop dimensions:
36-3/4"
21-3/16"
deep at
center
3. Make sure the wall coverings, countertop
and
cabinets around the cooktop can withstand
heat
(up to 200°F) generated
bg the cooktop.
13 max. ----L.[.
36"
30"
18" min.
min.
min.
2. Use a 36" or wider base cabinet.
• Cut the opening in the countertop.
To ensure
accuracg,
it is best to make a template
for the
opening. Make sure the sides of the opening are
parallel and the rear and front cuts are exactlg
perpendicular
to the sides.
• Observe oil minimum
clearances.
12" mJn.
from cutout
to side wall
3-3/8" min.
to rear vertical
combustibles
12" mJn.
from cutout
to side wall
_36" or wider
cabinet base
recommended
