185 mm (744")

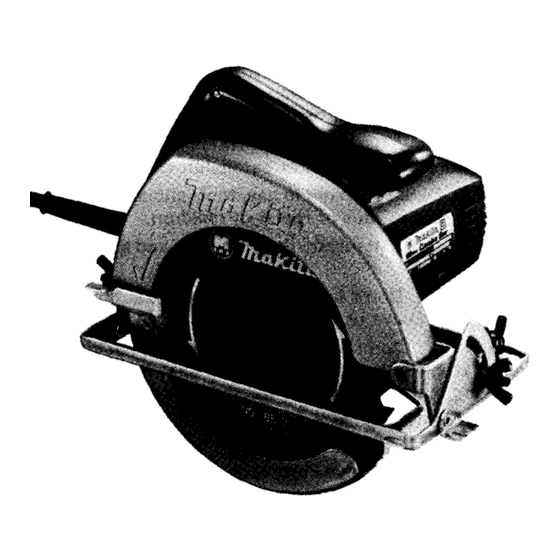

MODEL 5820
Equipped with Electric
Brake
INSTRUCTION MANUAL
'ION
SPEC IF
I CAT
I
0 N S
No load speed
Overall
I
Net
Max. cutting capacities
(RPMI
length
weight
Blade
diameter
4 3 m m
I
4,000
185 m m
6 4 m m
(7-114")
1
12-112")
I
(1.518")
285
m m
3.5
k g
1
111-114")
1
(7.7 Ibs)
*
Manufacturer reserves the right t o change specifications without notice.
Note: Specifications may differ from country to country.
Advertisement
Related Manuals for Makita 5820
Summary of Contents for Makita 5820
- Page 1 185 mm (744”) MODEL 5820 Equipped with Electric Brake INSTRUCTION MANUAL ‘ION 0 N S SPEC IF I CAT Max. cutting capacities Blade No load speed Overall diameter (RPMI length weight 185 m m 6 4 m m 4 3 m m 4,000 (7-114”)
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS (For All Tools) WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE- TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER- SONAL INJURY, INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries. CONSIDER WORK AREA ENVIRONMENT. - Page 3 14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking t o see that keys and adjusting wrenches are removed from tool before turning it on. AVOID UNINTENTIONAL STARTING. Don't carry plugged-in tool with finger on switch. Be sure switch is when plugging 16.
-
Page 4: Additional Safety Rules
ADDITIONAL SAFETY RULES Wear hearing protection. Keep Guards In Place and Working Order. Never wedge or tie lower guard open. Check operation of lower guard be- fore each use. Don't use if lower guard does not close briskly over saw blade. full CAUTION: If saw is dropped, lower guard may be bent, restricting return. - Page 5 NEVER place your hand or fingers kickback oc- behind the saw. curs, the saw could easily jump backwards over your hand, possi- bly causing severe injury. Fig. Lower Guard. Raise lower guard with the retracting handle. Adjustments. Before cutting be sure depth and bevel adjustments are tight. Use Only Correct Blades In Mounting.
- Page 6 13. Place the wider portion of the saw base on that part of the workpiece which is solidly supported, not on the section that will fall off when the cut is made. examples, Fig. illustrates the RIGHT way t o cut the end of a board, and Fig.
- Page 7 TIGHTEN THE HEX BOLT SECURELY in CLOCKWISE direction. Fig. CAUTION .Use only the Makita wrench and socket wrench to install or remove the blade. the recessed side the inner position flange on the blade side when mounting.
- Page 8 Adjusting depth Loosen the wing nut on the depth guide and move the base up or down. At the desired depth of cut, secure the base by tightening the wing nut. CAUTION : a shallow depth of cut when cutting thin workpiece for cleaner, safer cuts. After adjusting the depth of cut, always tighten the wing nut securely.
- Page 9 When this occurs, both carbon brushes should be replaced. To maintain product SAFETY and RELlABl LITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.
- Page 10 ACCESSORI ES CAUTION : These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use any other accessories or attachments might present risk injury t o persons. The accessories or attachments should be used only in the proper and intended manner.
-
Page 11: Circular Saw
Feb.-O6-'89 (7-1/4") CIRCULAR SAW Model 5820 Note: The switch, noise suppressor and other part configurations may differ from country to country. - Page 12 MAKITA L I M I T E D ONE YEAR WARRANTY Warranty Policy Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted t o be free of defects from workmanship and matenals for the period of ONE YEAR from the date of original purchase.
