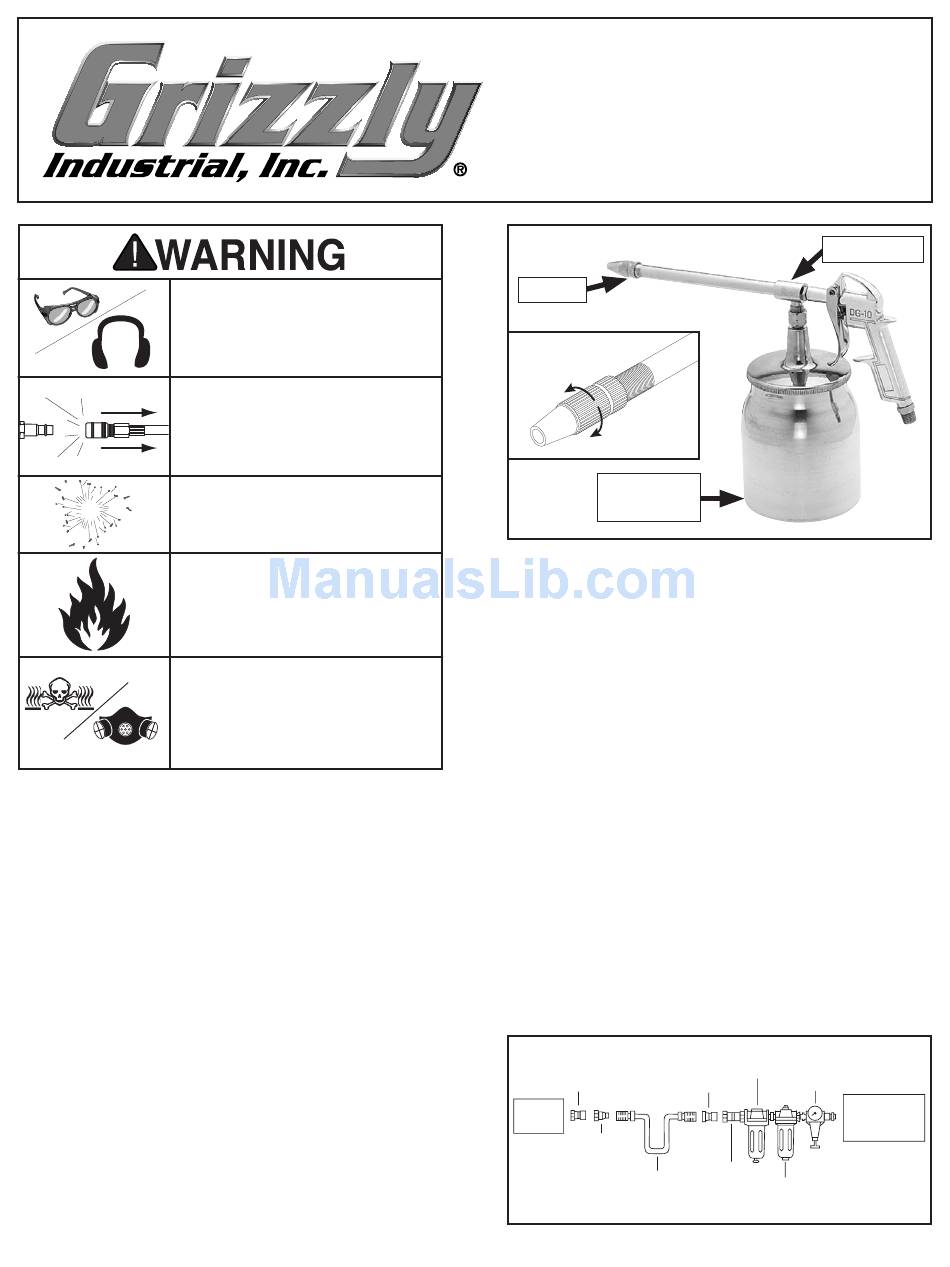

Grizzly G5357 Instruction Sheet

EYE/EAR INJURY HAZARD!
Wear safety glasses and
hearing protection when
using this tool!
Always disconnect tool from
air to prevent unexpected
operation during service!
DO NOT EXCEED 90 PSI!
Personal
occur.
Do not spray flammable
fluids near and open flame
or ignition source.
Always wear a respirator
when using this tool and
use in a well ventilated
area.

Specifications

Air Inlet Size .............................................
Air Consumption ........................................ 4 CFM
Operating Air Pressure ........................ 30–90 PSI
Wand Length ..................................................... 8"
Weight (empty) ...........................................1.1 lbs
Operation
1.
Make sure the engine is cool to the touch and
disconnect and insulate the positive battery
cable.
2. Fill the fluid container with an approved engine
cleaning solvent or detergent. Never use cor-
rosive fluids in the container.
3.
Connect the gun body to the fluid container.
4. Connect the engine cleaning gun (Figure 1) to
an air supply set at 60 PSI.
INJURY HAZARD!
injury could
EXPLOSION HAZARD!
LUNG HAZARD!
1
ENGINE CLEANING GUN
Nozzle
Increase Fluid
5. Hold the gun so the nozzle is 6–10" from the
surface and squeeze the trigger.
6. Adjust the nozzle, as shown in Figure 1, to
adjust the fluid amount. Lock the adjustment
by tightening the rear section of the nozzle
towards the front.
7.
When you are done, fill the fluid container
with water and squeeze the trigger until the
cleaning gun sprays clean water.
⁄ " NPT
4
Air Supply
The engine cleaning gun MUST be regularly lubri-
cated with 3-4 drops of air tool oil directly into the
air fitting before each use. For best results, we
recommend using an in line filter, lubricator, and
regulator, as shown in Figure 2.
Quick
Connector
Your
Tool
Quick
Coupler
MODEL G5357
INSTRUCTION SHEET
Decrease Fluid
Fluid
Container
Figure 1. Model G5357.
Quick
Lubricator
Connector
Quick
Air Hose
Coupler
Figure 2
Installing your tool.
.
Gun Body
Regulator
Air
Compressor
Filter
