Grizzly G0738 Owner's Manual

Hanging 3-speed air filter
Hide thumbs Also See for G0738:
Table of Contents

Advertisement

Quick Links

Download this manual

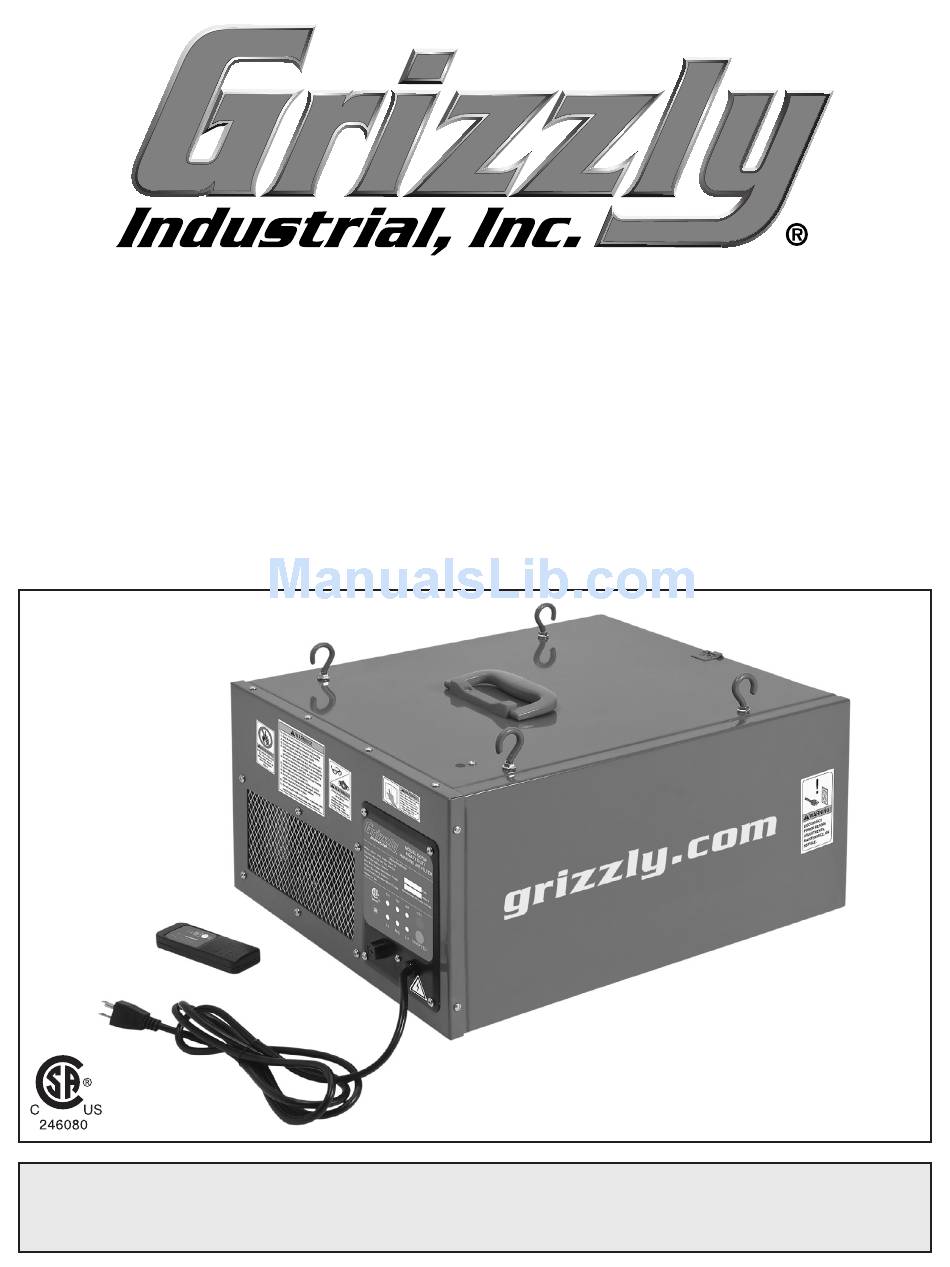

MODEL G0738
HANGING 3-SPEED

AIR FILTER

OWNER'S MANuAL
(For models manufactured since 1/12)
Copyright © FEBrUAry, 2012 By grizzly indUstriAl, inC. rEvisEd mAy, 2012 (tr)
WARNING: NO PORTION OF THIS MANuAL MAy bE REPRODucED IN ANy SHAPE
OR FORM WITHOuT THE WRITTEN APPROvAL OF GRIzzLy INDuSTRIAL, INc.
#ts14735 printEd in ChinA

Advertisement

Table of Contents
loading

Related Manuals for Grizzly G0738

Summary of Contents for Grizzly G0738

  • Page 1: Air Filter

    OWNER'S MANuAL (For models manufactured since 1/12) Copyright © FEBrUAry, 2012 By grizzly indUstriAl, inC. rEvisEd mAy, 2012 (tr) WARNING: NO PORTION OF THIS MANuAL MAy bE REPRODucED IN ANy SHAPE OR FORM WITHOuT THE WRITTEN APPROvAL OF GRIzzLy INDuSTRIAL, INc.
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 3: Table Of Contents

    Table of contents INTRODucTION ..........2 SEcTION 5: AccESSORIES ......17 manual Accuracy ........... 2 SEcTION 6: MAINTENANcE ......18 Contact info............ 2 Cleaning Filters ..........18 identification ........... 3 machine data sheet ........4 SEcTION 7: SERvIcE ........19 troubleshooting ...........

  • Page 4: Introduction

    Your Machine For your convenience, we post all available man- uals and manual updates for free on our website at www.grizzly.com. Any updates to your model of machine will be reflected in these documents as soon as they are complete.

  • Page 5: Identification

    Identification machine hook intake Front view port remote Control Control panel handle rear view outer Filter inner Filter (Behind outer Filter To reduce the risk of serious injury, read and understand this entire document before using the machine! model g0738 (mfg. since 1/12)

  • Page 6: Machine Data Sheet

    Machine Data Sheet MACHINE DATA SHEET Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL G0738 HANGING AIR FILTER, 3-SPEED Product Dimensions: Weight................................31 lbs. Width (side-to-side) x Depth (front-to-back) x Height..............20 in. x 17 in. x 10 in. Footprint (Length x Width)........................

  • Page 7: Section 1: Safety

    SEcTION 1: SAFETy For Your Own Safety, Read Instruction Manual Before Operating this Machine The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of impor- tance of the safety messages.
  • Page 8 ­ ­ DISCONNECTING POWER SUPPLY.­Always­dis- GUARDS & COVERS.­ Guards­ and­ covers­ can­ connect­ machine­ from­ power­ supply­ before­ ser- protect­ you­ from­ accidental­ contact­ with­ moving­ vicing,­ adjusting,­ or­ changing­ cutting­ tools­ (bits,­ parts­ or­ flying­ debris.­ Make­ sure­ they­ are­ prop- blades,­...

  • Page 9: Additional Safety For Air Filters

    Additional Safety for Air Filters INTENDED uSE. this air filter is designed to DIScONNEcTING POWER SuPPLy. turn the switch OFF, disconnect the air filter from the capture dust from ambient air in a woodwork- ing shop for a short time after cutting or sanding power supply, and allow the impeller to come to operations.

  • Page 10: Section 2: Power Supply

    SEcTION 2: POWER SuPPLy Availability Before installing the machine, consider the avail- ability and proximity of the required power supply Serious injury could occur if you connect circuit. If an existing circuit does not meet the the machine to power before completing the requirements for this machine, a new circuit must setup process.

  • Page 11: Grounding & Plug Requirements

    Grounding & Plug Requirements Improper connection of the equipment-grounding wire can result in a risk of electric shock. The This machine MUST be grounded. In the event wire with green insulation (with or without yellow of certain malfunctions or breakdowns, grounding stripes) is the equipment-grounding wire.

  • Page 12: Section 3: Setup

    SEcTION 3: SETuP Inventory To reduce the risk of serious injury, read and understand The following is a description of the main compo- this entire document before nents shipped with your machine. Lay the compo- using the machine! nents out to inventory them. If any non-proprietary parts are missing (e.g.

  • Page 13: Power Connection

    Power connection Test Run to avoid unexpected startups or property dam- once the assembly is complete, test run your age, use the following steps whenever connecting machine to make sure it runs properly. or disconnecting the machine. if, during the test run, you cannot easily locate the source of an unusual noise or vibration, stop connecting Power using the machine immediately, then review the...

  • Page 14: Site Planning

    Site Planning push the on spEEd button repeatedly to cycle through the three air flow speed options. the lights on the control panel should display the selected speed. site planning is an important step to maximize the effectiveness of the hanging air filter. Air circula- press the oFF button to turn the machine tion must be thought out and all obstructions to OFF.
  • Page 15 Figure 7 shows an example of poor air circulation, It is very important that the hanging air filter where the air filter is placed too close to obstruc- be supported properly. please follow these guidelines when planning where to mount the tions.

  • Page 16: Mounting To Ceiling

    Mounting to ceiling To mount the air filter to the ceiling: replace the four phillips head screws shown in Figure 8 with the four provided machine the model g0738 can be operated from a stable hooks (see Figure 9). surface that can support its weight or hung from the ceiling.
  • Page 17 Note: Some positions for the ceiling hooks may be slightly uneven from each another. To make up for this, minor adjustments can Ceiling be made to the length of the hanging assem- Joist Hook bly by adjusting the amount that the machine hook is threaded into the air filter housing (see Figure 10).

  • Page 18: Section 4: Operations

    SEcTION 4: OPERATIONS General Filtering Performance Turning ON & OFF When the air filter is connected to power, press When used in conjunction with an efficient dust the on spEEd button on the air filter control collection system, the model g0738 removes panel or the remote control to turn the unit ON.

  • Page 19: Section 5: Accessories

    To minimize this the filter. risk, only install accessories recommended for this machine by Grizzly. NOTICE Refer to the newest copy of the Grizzly catalog for other accessories available for this machine. T10503—Inner Filter for Model G0738 T10504—Outer Filter for Model G0738 Figure 13.

  • Page 20: Section 6: Maintenance

    SEcTION 6: MAINTENANcE cleaning Filters inner Filter the amount of air filter operation has a direct bearing on when you must clean or replace the filters. retaining Clips to maintain efficient operation, check the filters approximately every 40 hours of use in light or moderately dusty environments.

  • Page 21: Section 7: Service

    SEcTION 7: SERvIcE Review the troubleshooting and procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, call our Technical Support at (570) 546-9663. Note: Please gather the serial number and manufacture date of your machine before calling. Troubleshooting Motor &...

  • Page 22: Replacing Fuse

    (see Figure 17). 250v fuse (F2A250v). the correct fuse is avail- insert the batteries in the proper direction and able from grizzly as part number p0738055. replace the cover. Tool Needed phillips screwdriver #2 ........1...

  • Page 23: Section 8: Wiring

    Technical source. Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. -21- model g0738 (mfg. since 1/12)

  • Page 24: Electrical Wiring Diagram

    Electrical Wiring Diagram Power Cord Neutral Ground Control Panel 110VAC 5-15 Plug (As Recommended) Fuse F2A250V Motor Ground Ground Cabinet Impeller Housing READ ELECTRICAL SAFETY -22- model g0738 (mfg. since 1/12) ON PAGE 21!

  • Page 25: Section 9: Parts

    SEcTION 9: PARTS cabinet & Remote control REF PART # DESCRIPTION REF PART # DESCRIPTION PHTEK15M TAP SCREW M4 X 10 T10503 INNER FILTER 421 X 241 X 160MM P0738002 CABINET T10504 OUTER FILTER 421 X 241 X 45MM PS14M PHLP HD SCR M6-1 X 12 P0738016 RUBBER FOOT...

  • Page 26: Control Panel

    control Panel REF PART # DESCRIPTION REF PART # DESCRIPTION PN06M HEX NUT M5-.8 P0738058 CONTROL PANEL PLATE P0738012 GROUND WIRE 18AWG 335MM P0738059 INSULATED FLAT WASHER 3MM P0738050 POWER CORD 18G 3W 72" 5-15 PHTEK31M TAP SCREW M4 X 14 P0738051 STRAIN RELIEF 6P-4 P0738061...

  • Page 27: Motor & Impeller

    Motor & Impeller REF PART # DESCRIPTION REF PART # DESCRIPTION PHTEK15M TAP SCREW M4 X 10 P0738106 SQUIRREL CAGE IMPELLER P0738067 WIRE 18AWG 6-3/4" P0738107 REAR IMPELLER HOUSING COVER P0738100 CAPACITOR COVER P0738108 IMPELLER HOUSING PTLW01M EXT TOOTH WASHER 4MM P0738109 RUBBER SPACER PW05M...

  • Page 28: Machine Labels

    Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. -26-...

  • Page 29: Warranty Card

    Would you recommend Grizzly Industrial to a friend? _____ Yes _____No Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No 10.
  • Page 30 FOLD ALONG DOTTED LINE Place Stamp Here GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ TAPE ALONG EDGES--PLEASE DO NOT STAPLE...

  • Page 31: Warranty & Returns

    WARRANTy & RETuRNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
  • Page 32 Buy Direct and Save with Grizzly – Trusted, Proven and a Great Value! ® ~Since 1983~ Visit Our Website Today For Current Specials! ORDER 24 HOURS A DAY! 1-800-523-4777...
