Grizzly G9956 Owner's Manual

Heavy duty double air filter
Hide thumbs Also See for G9956:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

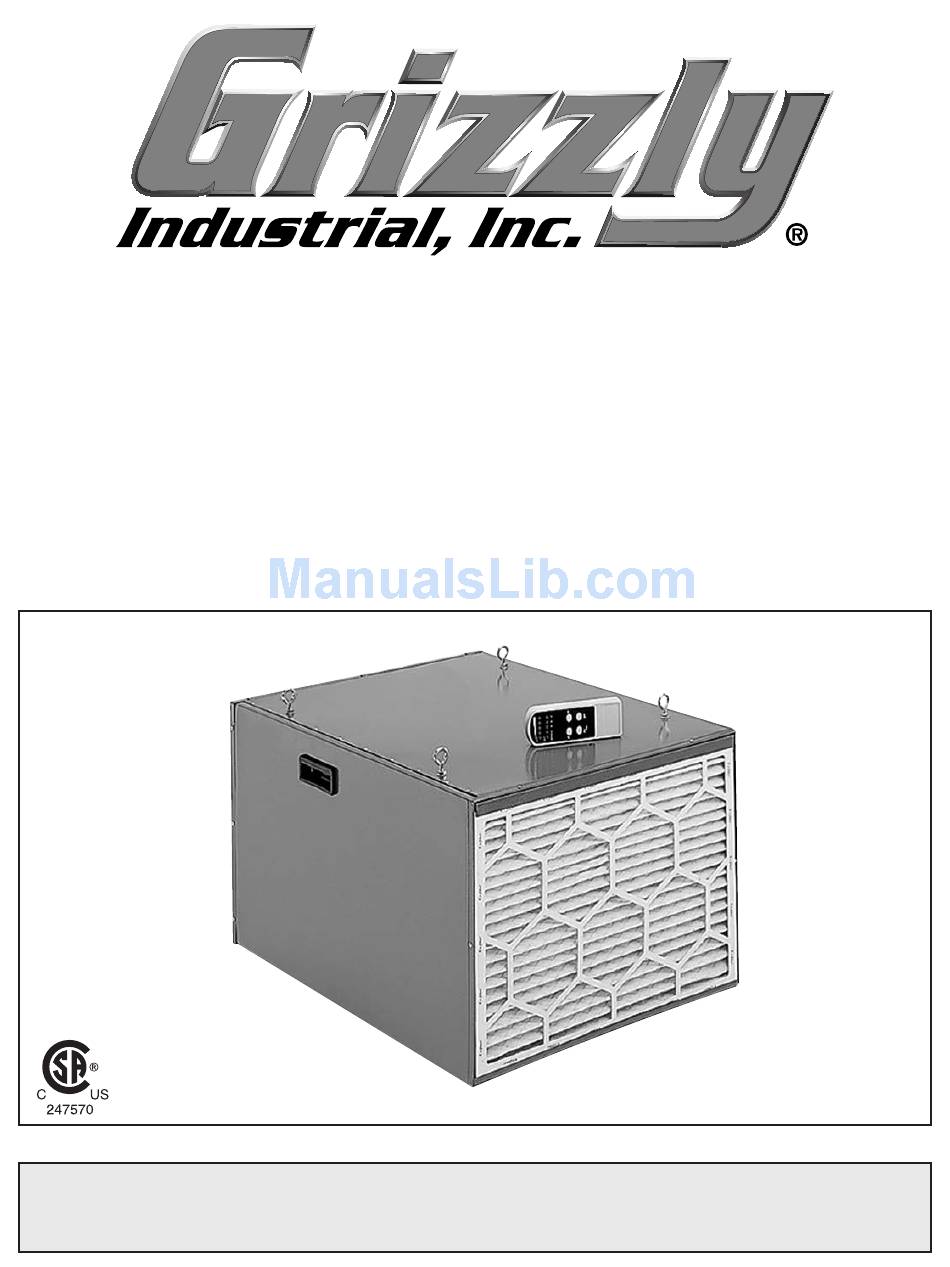

MODEL G9956
HEAVY DUTY DOUBLE

AIR FILTER

OWNER'S MANUAL
(For models manufactured since 8/15)
COPYRIGHT © APRIL, 2004 BY GRIZZLY INDUSTRIAL, INC. REVISED MARCH, 2017 (TR)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#DD6008 PRINTED IN TAIWAN

Advertisement

Table of Contents
loading

Related Manuals for Grizzly G9956

Summary of Contents for Grizzly G9956

  • Page 1: Air Filter

    OWNER'S MANUAL (For models manufactured since 8/15) COPYRIGHT © APRIL, 2004 BY GRIZZLY INDUSTRIAL, INC. REVISED MARCH, 2017 (TR) WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ..........2 SECTION 4: OPERATIONS ......16 Manual Accuracy ........... 2 Operation Controls ........16 Contact Info............ 2 Machine Storage .......... 18 Machine Description ........2 SECTION 5: MAINTENANCE ......19 Identification ........... 3 Cleaning Filters ..........19 Accessories ............

  • Page 4: Introduction

    Depending on the size of the shop and layout of Serial Number the air filter in relation to the woodworking machin- ery, the air filter may be used in conjunction with others. Model G9956 (Mfg. Since 8/15)

  • Page 5: Identification

    Thermal Main Switch Control Breaker Primary Pull Chain Switch Power Cord Filter Figure 1. Front and rear view of G9956 air filter. To reduce the risk of serious injury when using this machine, read and understand this entire ACCESSORIES manual before beginning any operations.

  • Page 6: Machine Data Sheet

    ⁄ Voltage ..................................120V Phase ..................................Single Amps .................................... 3A Number of Speeds ................................5 Speeds ........................800, 900, 1000, 1100, 1200 RPM Cycle ..................................60 Hz Power Transfer ................................ Direct Bearings ........................Shielded and Permanently Sealed Model G9956 (Mfg. Since 8/15)
  • Page 7 Paint .................................Powder Coated Other Specifications: ISO Factory ................................. ISO 9001 Country Of Origin ................................Taiwan Warranty ................................... 1 Year Serial Number Location ..........................Machine ID Label Assembly Time ................................. 30 Minutes Features: Programmable Remote Control 2-Stage Filtration Model G9956 (Mfg. Since 8/15)

  • Page 8: Section 1: Safety

    Everyday ery. Never operate under the influence of drugs or eyeglasses are NOT approved safety glasses. alcohol, when tired, or when distracted. Model G9956 (Mfg. Since 8/15)
  • Page 9 EXPERIENCING DIFFICULTIES. If at any time debris. Make sure they are properly installed, you experience difficulties performing the intend- undamaged, and working correctly BEFORE ed operation, stop using the machine! Contact our operating machine. Technical Support at (570) 546-9663. Model G9956 (Mfg. Since 8/15)

  • Page 10: Additional Safety For Air Filters

    Model G9956 (Mfg. Since 8/15)

  • Page 11: Section 2: Power Supply

    Model G9956 (Mfg. Since 8/15)

  • Page 12: Grounding & Plug Requirements

    Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground. -10- Model G9956 (Mfg. Since 8/15)

  • Page 13: Section 3: Setup

    IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack- aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

  • Page 14: Power Connection

    Power Connection Test Run To avoid unexpected startups or property dam- Before you install the model G9956, bench-test age, use the following steps whenever connecting the unit to make sure it runs properly. or disconnecting the machine. Note: Do not be alarmed if you notice a small Connecting Power amount of vibration during the Test Run.

  • Page 15: Site Planning

    • Hang the air filter where it can be accessed easily for operation and cleaning. -13- Model G9956 (Mfg. Since 8/15)

  • Page 16: Mounting

    To make the unit operate at the optimum height of 7' from the floor, we recommend installing the air filter unit in your shop by hanging it with lag eye bolts, chain, and S-hooks. -14- Model G9956 (Mfg. Since 8/15)
  • Page 17 "-20 Hex Nut Eye Bolts on Filter Figure 9. Model G9956 hanging from joists. Figure 8. Location to install eye bolts. Measure the desired length of your chains from the eye bolts. Remember to account for Tighten the hex nut on each eye bolt until the the S-hooks and eye bolts on the double air eyes will not move by hand.

  • Page 18: Section 4: Operations

    (IR) and must be pointed directly at the control panel. Operation Controls The Model G9956 Double Air Filter can be oper- ated at the machine or with the remote control. At Machine Connect power to the air filter.
  • Page 19 Decrease the amount of time the fan runs before automatically shutting off by pressing the decrease button. Note: If the automatic shutoff feature will not be used, press the decrease button until the continue light is illuminated. -17- Model G9956 (Mfg. Since 8/15)

  • Page 20: Machine Storage

    When the air filter is not in use, unplug the power cord from the power source. Place the cord away The Model G9956 will recirculate the volume of from potential damage sources, such as high air in a 20' x 20' x 8' room approximately 26 times traffic areas, sharp objects, heat sources, harsh in one hour.

  • Page 21: Section 5: Maintenance

    If you steps. If you do, you will damage the filters cannot see a lot of light through them after clean- and reduce filtering quality. ing, replace the filters. -19- Model G9956 (Mfg. Since 8/15)

  • Page 22: Section 6: Service

    4. Replace motor fan housing. motor fan blade to hit the housing while spinning. Air filter does 1. The primary or secondary filter are dirty. 1. Clean or replace the filters. not adequately collect dust; poor performance. -20- Model G9956 (Mfg. Since 8/15)

  • Page 23: Remote Control Battery Replacement

    Tip: If you use the air filter infrequently, remove the battery when the unit is not used. This will reduce battery drainage from the remote control. Battery Cover Figure 14. Remote control battery compartment cover removed. -21- Model G9956 (Mfg. Since 8/15)

  • Page 24: Section 7: Wiring

    Technical Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. READ ELECTRICAL SAFETY -22- Model G9956 (Mfg. Since 8/15) ON PAGE 22!
  • Page 25 Electrical Components Figure 15. Remote unit exterior view. Figure 17. Remote wiring inside view. Figure 16. Motor and remote unit. READ ELECTRICAL SAFETY -23- Model G9956 (Mfg. Since 8/15) ON PAGE 22!

  • Page 26: Wiring Diagram

    20 MFD 250VAC Remote Unit SEG5 RECEIVER REV.B Transmit 16(4)A 250V-T120 Switch (viewed Breaker/Reset Pull Chain from behind) (viewed from behind) Switch Neutral 5-15 Plug Ground 120 VAC READ ELECTRICAL SAFETY -24- Model G9956 (Mfg. Since 8/15) ON PAGE 22!

  • Page 27: Section 8: Parts

    SECTION 8: PARTS Main Breakdown 36V2 38V2 39V2 24V2 21V2 -25- Model G9956 (Mfg. Since 8/15)

  • Page 28: Main Parts List

    PHLP HD SCR 10-24 X 3/4 BUTTON HEAD SCREW 5/16-18 X 1/2 P9956023 P9956049 24V2 P9956024V2 PLASTIC FAN V2.12.09 RESPIRATOR LABEL 3.8 X 2H P9956050 MOTOR 1/3HP 120V 1PH 60HZ BATTERY 9V P9956025 P9956051 RUBBER GROMMET P9956026 -26- Model G9956 (Mfg. Since 8/15)
  • Page 29 Would you recommend Grizzly Industrial to a friend? _____ Yes _____No Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No 10.
  • Page 30 FOLD ALONG DOTTED LINE Place Stamp Here GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ TAPE ALONG EDGES--PLEASE DO NOT STAPLE...

  • Page 31: Warranty & Returns

    WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
