Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2

Step-By-Step Configuration of FWG114P Gateway B

Log in to the NETGEAR FVS328 labeled Gateway B as in the illustration.
1.
Out of the box, the FVS328 is set for its default LAN address of
default user name of
assume you have set the local LAN address as 172.23.9.1 for Gateway B and have set your
own user name and password.
Click the IKE Policies link under the VPN category link on the left side of the Settings
2.
management GUI. This will open the IKE Policies Menu. Click Add. This will open a new
screen titled IKE Policy Configuration.

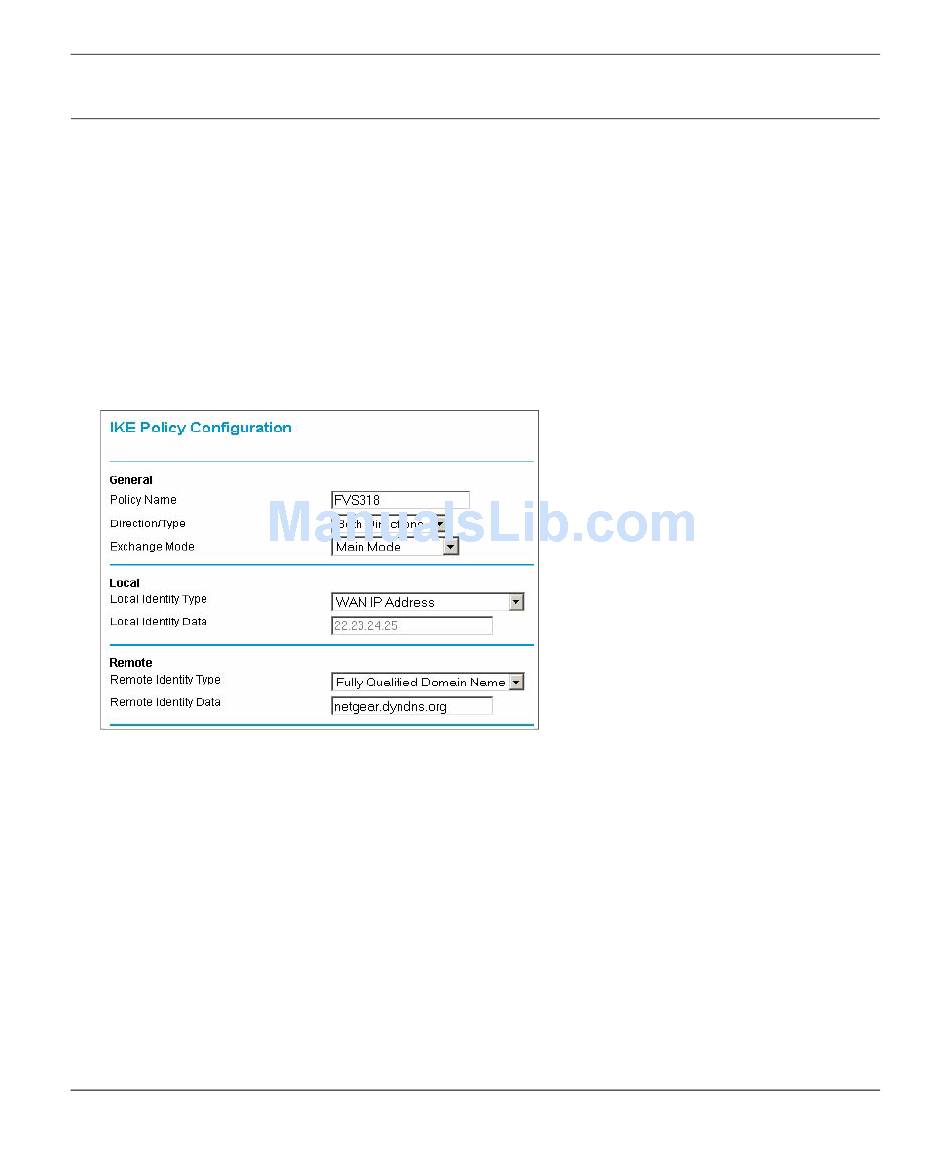

Figure G-5: NETGEAR FVS328 IKE Policy Configuration – Part 1
– Enter an appropriate name for the policy in the Policy Name field. This name is not
supplied to the remote VPN Endpoint. It is used to help you manage the IKE policies. In
our example we have used FVS318 as the Policy Name. In the Policy Name field type
FVS318.
– From the Direction/Type drop-down box, select Both Directions.
– From the Exchange Mode drop-down box, select Main Mode.
– From the Local Identity drop-down box, select WAN IP Address (WAN IP address will
automatically be populated into the Local Identity Data field after policy is applied).
– From the Remote Identity drop-down box, select Remote WAN IP (WAN IP address will
automatically be populated into the Local Identity Data field after policy is applied).
NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P v2
admin and default password of
201-10301-02, May 2005
http://192.168.0.1,
password . For this example we will
with its
G-5
