Power Supply Removal

Remove the power supply as follows.
1. Remove the system unit cover as previously described (see "System Unit Cover
Removal").
2. Unplug the two power cables attached to the system board's connectors. See
Appendix A for connector locations.
Unplug the power cables from all installed devices.
3.
Cut any tie wraps that may be securing the power cables to the system unit chassis
4.
or drive brackets.
5. Remove the four screws securing the power supply to the system unit chassis (see
Figure Section 5-16).
Remove the power supply from the system unit chassis.
6.

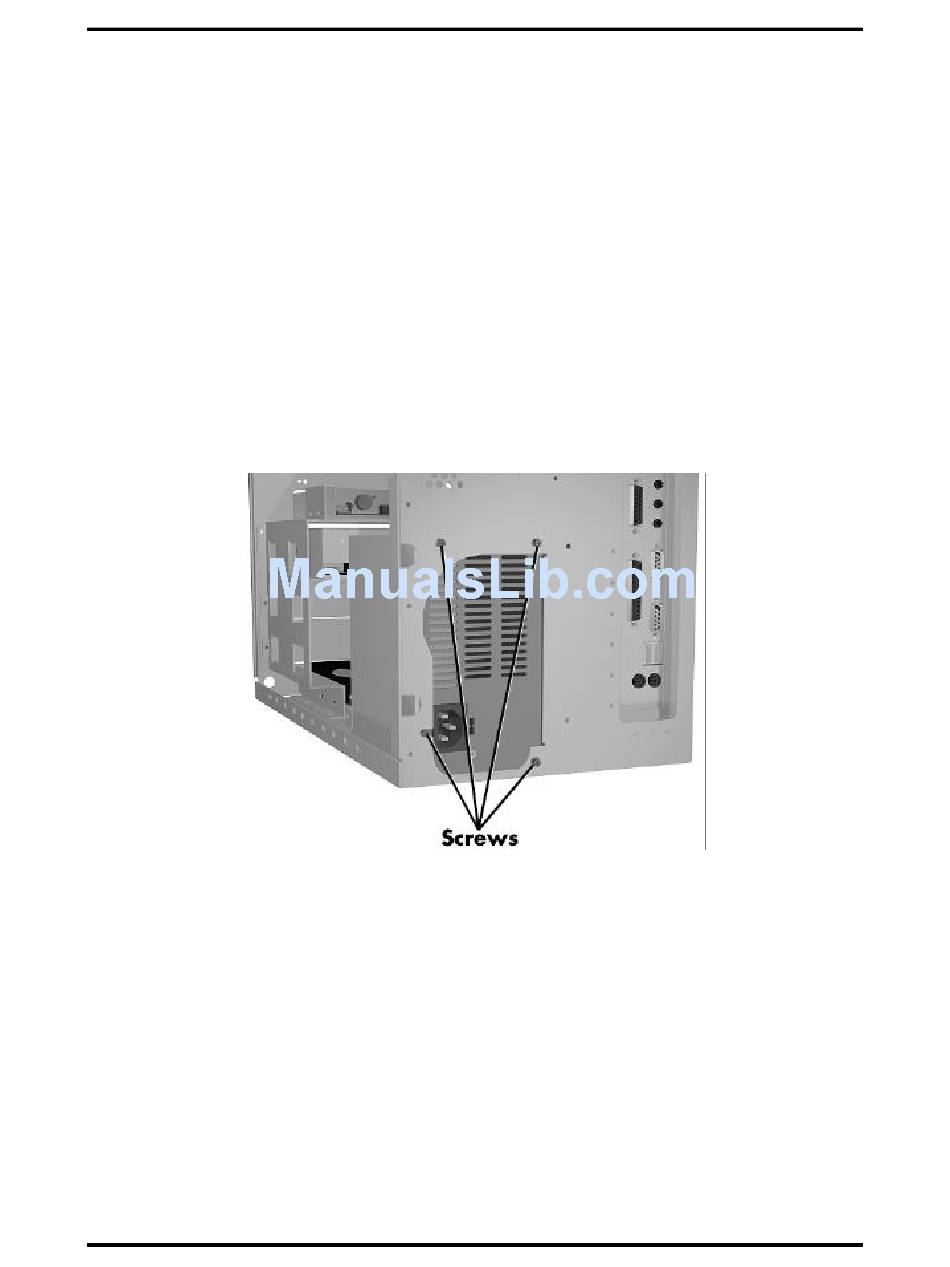

Figure Section 5-16 Power Supply Screws
Repair 5-13
