Setting Up the Chassis
Take the following steps to wall-mount the chassis:
Step 1
Figure 3-8
0
Step 2
3-8 Router Installation and Configuration Guide

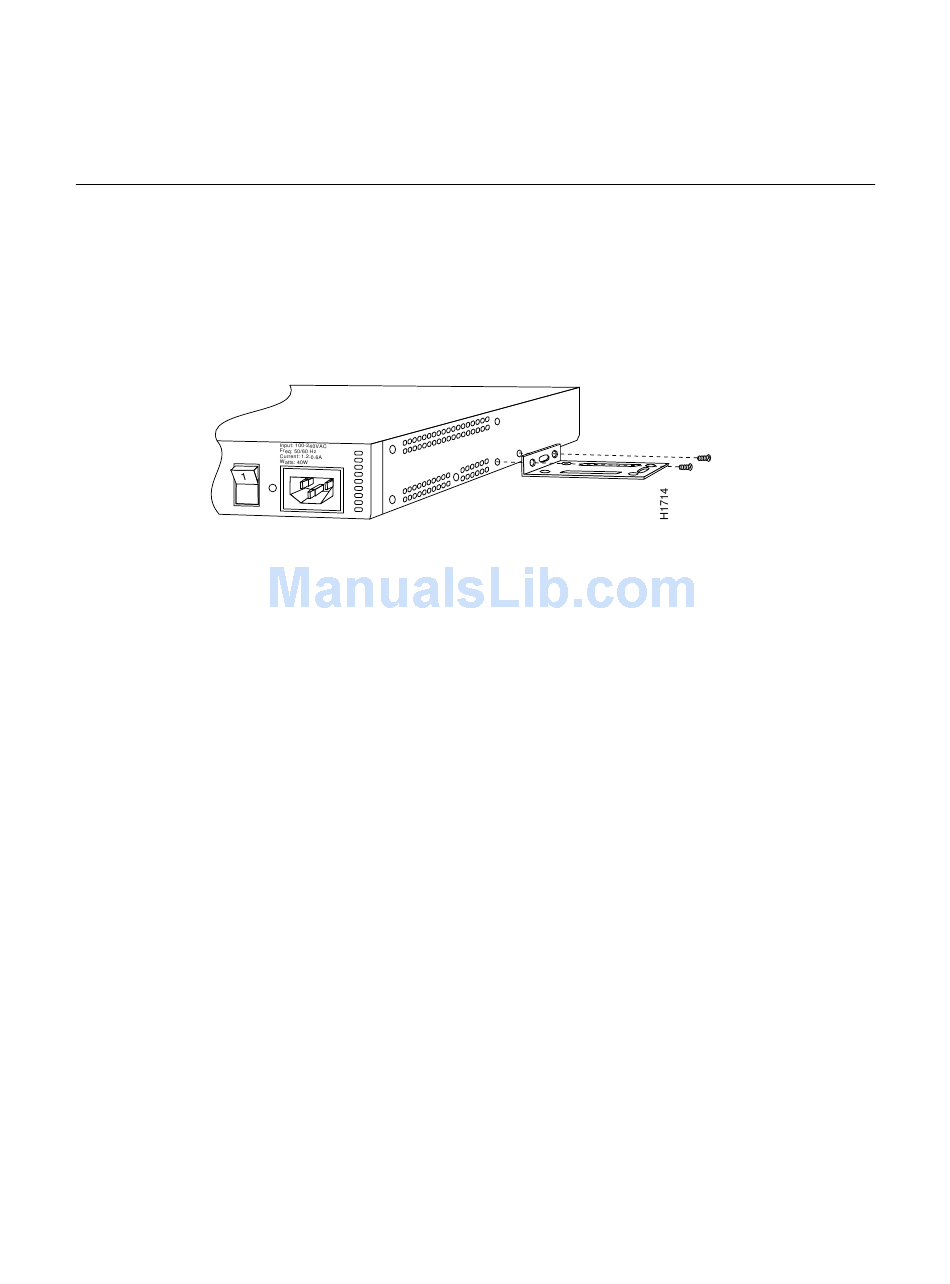

Attach the brackets as shown in Figure 3-8.
Attaching the Wall-Mount Brackets
Attach the chassis assembly to the wall as shown in Figure 3-9, using screws and
anchors that you provide. We recommend the following:
•
For the best support of the chassis and cables, attach the brackets so that the
screws align with a vertical wall stud. (See Figure 3-9.) This position will
prevent the chassis from pulling away from the wall when cables are
attached.
•
For the best ventilation of the chassis, mount the chassis with the power
supply and fan at the top. Make sure there is clearance between the router and
the wall.
