Installing in a Rack

After the brackets are secured to the chassis, you can rack-mount it. Using the screws you
provide, attach the chassis to the rack as shown in Figure 3-7.
Figure 3-7

Wall-Mounting the Chassis

Use the small brackets (for use with a 19-inch rack) to wall-mount the chassis. The small
brackets provide the most stable position for the chassis.

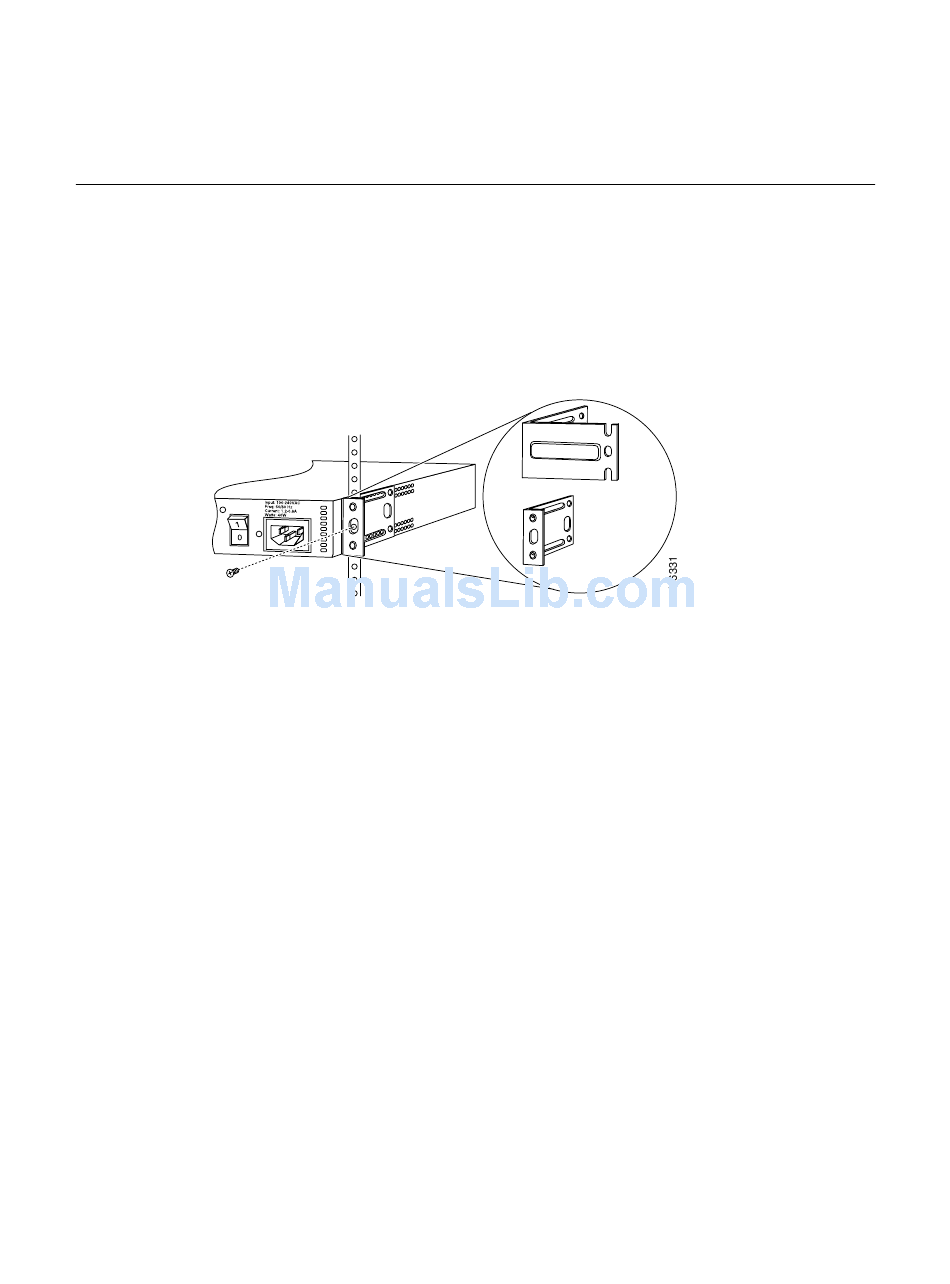

Attaching the Chassis to a Rack (Rear Panel Forward Shown)
Setting Up the Chassis
24 in.
brackets
19 in.
brackets
Installing the Router 3-7
