Summary of Contents for Makita UV001GM201

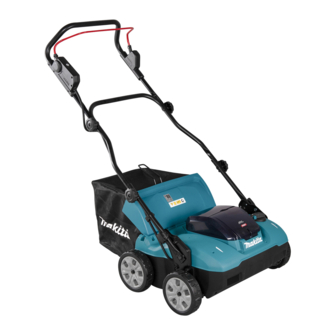

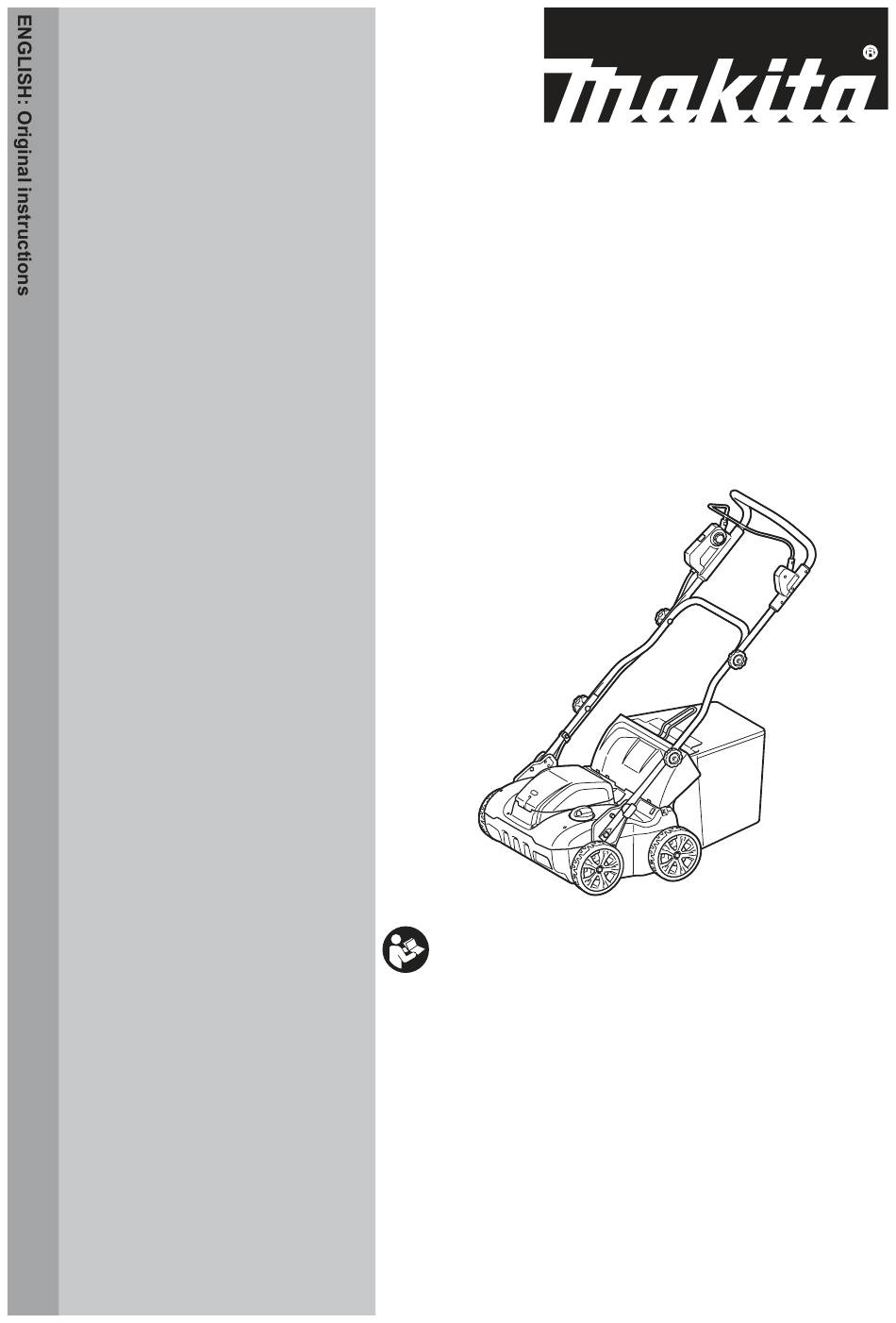

- Page 1 INSTRUCTION MANUAL Cordless Scarifier UV001G Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: UV001G Working width 380 mm No load speed 3,200 min Part number of replacement Vertical cutter 1913J5-0 scarifier blades Thatching blades 1913J7-6 Dimensions during operation L: 1,020 mm to 1,240 mm (L x W x H) W: 680 mm H: 915 mm to 1,155 mm when stored 550 mm x 680 mm x 640 mm... -
Page 3: Intended Use
Power tools can produce electromagnetic fields Intended use (EMF) that are not harmful to the user. However, users of pacemakers and other similar medical The machine is intended for removing the thatch and devices should contact the maker of their device and/ mosses from the lawns or cutting the roots of lawns to or doctor for advice before operating this power tool. - Page 4 Do not use a battery pack or tool that is dam- Power tool use and care aged or modified. Damaged or modified batteries Do not force the power tool. Use the correct may exhibit unpredictable behaviour resulting in power tool for your application. The correct fire, explosion or risk of injury.
- Page 5 12. When working on slopes, always be sure of Children should be supervised to ensure that your footing, always work across the face they do not play with the machine. of slopes, never up or down and exercise Physical condition - Do not operate machine while under the influence of drugs, alcohol, or extreme caution when changing direction.
- Page 6 20. Stop operation immediately if you notice any- Operation thing unusual. Switch off the machine. Then Do not overreach. Keep the balance at all inspect the machine. times. Always be sure of the footing on slopes. 21. Never attempt to make working depth adjust- Walk, never run.
- Page 7 Check the blade mounting bolt at frequent Do not wet the terminal of battery with liquid intervals for proper tightness. such as water, or submerge the battery. Do not leave the battery in the rain, nor charge, use, Always allow the machine to cool down before or store the battery in a damp or wet place.
-
Page 8: Installing The Handle
Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and Fig.1 charger. ► 1. Middle handle 2. Thumb nut 3. Bolt 4. Lower handle... - Page 9 Align the hole in the middle handle with the Installing or removing the grass hole in the upper handle, then insert the bolt from the basket inside, and then tighten the thumb nut from the outside. Perform the same procedure on the other side. To install the grass basket, follow the steps below.
-
Page 10: Functional Description
Installing or removing battery cartridge FUNCTIONAL DESCRIPTION Always switch off the machine CAUTION: before installing or removing of the battery cartridge. CAUTION: Always be sure that the machine is switched off and the battery cartridges are CAUTION: Hold the machine and the battery cartridge firmly when installing or removing bat- removed before adjusting or checking function on tery cartridge. - Page 11 ► 1. Indicator lamps 2. Check button Let the machine and battery(ies) cool down. If no improvement can be found by restoring protection system, then contact your local Makita Service Center. NOTICE: If the machine stops due to a cause not described above, refer to the section for troubleshooting.
-
Page 12: Main Power Switch
Makita Authorized Service Center. Install the battery cartridges, and then close the battery cover. NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly Press the main power switch. -
Page 13: Adjusting The Handle Height
To adjust the working depth, turn off the machine, and NOTE: When you turn the adjusting dial to the right and set it to then turn the adjusting dial while pressing the lock-off the lower scale of the machine, the working depth is set to -12 mm. button. -
Page 14: Operation
This machine is equipped with an electric brake. If the machine consistently fails to quickly stop the scarifier blades after releasing the switch lever, have the machine serviced at Makita Authorized Service Center. Fig.20 NOTE: When working on dense lawn, if a poor finish... -
Page 15: Maintenance
Before each periodic be performed by Makita Authorized or Factory Service check, be sure to stop and turn off the machine. Centers, always using Makita replacement parts. -
Page 16: Carrying The Machine
Loosen the thumb nuts on both sides of the lower Carrying the machine handle, and then fold the upper and middle handles. CAUTION: Before carrying the machine, make sure that all the battery cartridges are removed. When carrying the machine, hold the middle handle and the lower holding part on the front of the machine with two people as shown in the figure. - Page 17 Fold the upper handle as shown in the figure. Guideline for replacing the vertical cutter If the tips of the vertical cutter blades have reached the wear lines, replace the vertical cutter with a new one. Fig.27 NOTICE: Be careful not to pinch the cords when folding the handle.
- Page 18 Installing the scarifier blades Lift the scarifier blades upward slightly, and then remove the scarifier blades from the machine. When you replace the scarifier WARNING: blades, always follow the instructions provided in this manual. Tighten the bolts clockwise firmly WARNING: to secure the scarifier blades.
-
Page 19: Troubleshooting
Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to disassemble the machine. Instead, ask Makita Authorized Service Centers, always using Makita replacement parts for repairs. - Page 20 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885A42-922 20230615 www.makita.com...
