Makita BVF104, BVF154 - Cordless Garden Sprayer Manual

SPECIFICATIONS

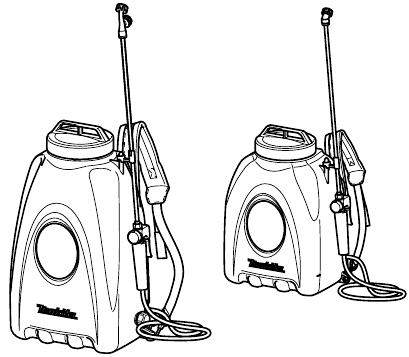

BVF104
BVF154

Model				BVF104	BVF154
Pump type				Ceramic gear system
Chemical tank capacity				10 L	15 L
Tank drain				Without	With
Spray valve				Integral grip lever
Dimension (W X L X H)				315 mm x 225mm x 415 mm	345 mm x 235 mm x 525 mm
Net weight				3.8 kg	4.1 kg
Performance	Maximum pressure			0.3 Mpa
	Discharge		Upright double-headed nozzle	0.8 L / min
			Wide-angle herbicide nozzle	1.3 L / min
	Continuous work time	Battery BL1815	Upright double-headed nozzle	60 min
			Wide-angle herbicide nozzle	90 min
		Battery BL1830	Upright double-headed nozzle	125 min
			Wide-angle herbicide nozzle	200 min
Rated voltage				D.C. 18 V	D.C. 18 V

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003

Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.

	Read instruction manual.
	Do not use in rain.
	Wear protective mask.
	Wear protective gloves.
	Only for EU countries Do not dispose of electric equipment or battery pack together with household waste material! In observance of the European Directives, on Waste Electric and Electronic Equipment and Batteries and Accumulators and Waste Batteries and Accumulators and their implementation in accordance with national laws, electric equipment and batteries and battery pack(s) that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Intended use
The tool is intended for spraying agricultural and horticultural chemicals for pest and weed control.

Noise
The typical A-weighted noise level determined according to EN60745:
Sound pressure level (L_pA): 70 dB(A) or less
Uncertainty (K): 3 dB(A)
The noise level under working may exceed 80 dB(A)
Wear ear protection

Vibration
The vibration total value (tri-axial vector sum) determined according to EN60745:
Work mode: spraying liquid
Vibration emission (a_h): 2.5 m/s² or less
Uncertainty (K): 1.5 m/s²

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.
• The declared vibration emission value may also be used in a preliminary assessment of exposure.

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

FUNCTIONAL DESCRIPTION

•
  Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

Installing or removing battery cartridge

1. Red indicator
2. Button
3. Battery cartridge
4. Battery pack cover

• Open Garden Sprayer's battery pack cover.
• Always switch off the tool before insertion or removal of the battery cartridge.
• To remove the battery cartridge, withdraw it from the tool while sliding the button on the front of the cartridge.
• To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red part on the upper side of the button, it is not locked completely. Insert it fully until the red part cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

ASSEMBLY

•
  Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

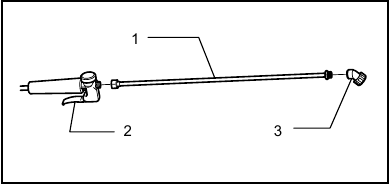

Spray pipe and nozzle assembly method

1. Spray pipe
2. lever cock
3. Nozzle

• As shown in the figure, assemble spray pipe and then nozzle onto lever cock.
• Adjust direction of nozzle using nut on spray pipe.
• Firmly attach components to ensure there is no leaking.
• Select nozzle according to type of spraying to be done.

NOTE:

• All connector units use packing. Before assembly, always check to see that the units have packing.
• Check to make sure that the spray hose is not cracked, worn and/or damaged.
• Firmly tighten on the spray pipe to prevent liquid leaks.
• If there is a leak from a connector unit, tighten further using a hand tool (by approximately 45 degrees).
• Do not use a spray pipe that is longer than the standard one provided. Doing so may cause leaking from connector units.

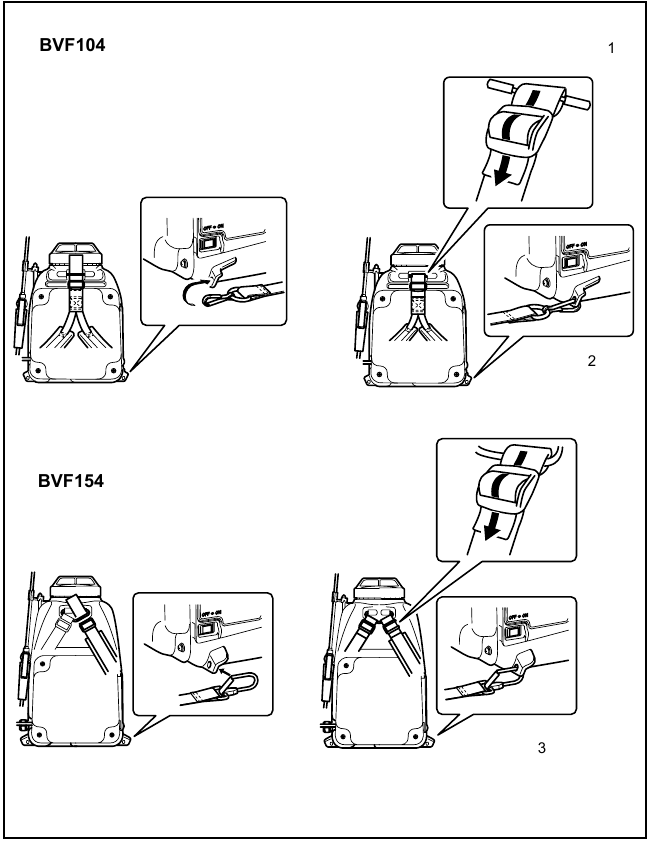

Back strap attaching method

1. Pass the belt part of the back strap through the slot on the sprayer.
2. Clip on back strap hooks
3. Clip on back strap hooks

Use the figure pointers to attach the back strap at top and bottom, making sure there are no twists in the strap.

NOTE:

• Check to make sure that back strap is securely attached to chemical tank.

OPERATION

•
  Before inserting the battery cartridge into the tool, always check to see that the tool is switched off.

Spraying

• To prevent sudden spraying, be sure to set the lever cock to STOP, before turning sprayer switch ON or OFF.
• When spray work is interrupted, be sure to turn switch OFF, to prevent inadvertent spraying.

1. Switch

Be sure to check the situation of surroundings before turning sprayer switch ON.
Operate lever cock to spray.
Once spraying is complete, immediately set lever cock to STOP, and then turn sprayer switch OFF.

How to use lever cock

1. Position "A" is the STOP position.
2. Position "B" is the spray position. Release the lever, and it will return to position "A" and spraying will stop. (Intermittent spraying)
3. Position "C" is the continuous spray position. (Continuous spraying)

NOTE:

• Check to make sure the tank is loaded with chemical or clean water when operating the sprayer, as continued operation of the sprayer with an empty tank may burn out the pump.
• Running the sprayer for prolonged periods with the lever cock closed may have an adverse effect on the pump as well as drain the battery. Be sure to turn sprayer switch OFF whenever possible.
• If spray splutters, or pumps suddenly screeches, the chemical tank is empty, so immediately turn sprayer switch OFF.
• Do not spray with the battery cover open and/or with the back-support cushioning removed, as there is a risk of damage to electrical system. Moreover, do not spray pointing the spray nozzle at the sprayer.
• Do not forcibly handle the lever cock and/or the spray pipe.

Mixing chemical

• Never use Kelthane water dispersible powder (acaricide) because it tends to harden due to heat generated by pump during operation, which causes the pump to stop. Use a Kelthane emulsion, Akar emulsion or Osadan water dispersible powder as the acaricide.
• When using a water dispersible powder or lime sulfur, be sure to dissolve well prior to use.
• Take maximum care when handling chemicals. Wash away thoroughly if chemical comes into contact with body.
• Chemicals are harmful. Always adhere to chemical manufacturer instructions when handling chemicals.
• See the following chart for ratio information that is useful when diluting chemicals.
• Never spray chemicals undiluted.
• When using a water dispersible powder, etc., dissolve thoroughly in a container such as a bucket.

	Chemical
	Dilution ratio
Water	500	1,000	2,000
4 L	8 mL	4 mL	2 mL
6 L	12 mL	6 mL	3 mL
8 L 10 L	16 mL 20 mL	8 mL 10 mL	4 mL 5 mL
12 L	24 mL	12 mL	6 mL
15 L	30 mL	15 mL	7.5 mL

Chemical replenishment

• When changing chemical, be sure to carefully wash the tank, pump, and nozzle, etc. with clean water. Residue of the previous chemical may cause a spray injury. Moreover, if chemicals mix, a chemical change may occur, with the danger of generating a toxic gas.
• Be sure to wear protective gloves.
• Do not change chemical in poorly ventilated locale. (prevent chemical poisoning)

Check to make sure the sprayer switch is OFF and replenish chemical tank with mixed chemical.
When filling tank with chemical, always strain chemical through equipped tank strainer.
The side of the chemical tank is marked with scale divisions, so be sure to use these as operation guidelines. Firmly tighten chemical tank lid to prevent leaking.

Back strap adjustment

Adjust back strap to a length that brings the sprayer as close to the body as feasibly possible.

Lengthening strap

1. Lift up buckle.
2. Pull the belt on the side connected to the sprayer.

   1. Buckle
   2. Lift up buckle
   3. Pull

Shortening strap
Pull the belt on the free side.

1. Pull

NOTE:
When shortening the strap, it will move relatively easily if there is no weight exerted on the strap.

MAINTENANCE

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.
• For inspection and maintenance, always wear protective gloves.
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

After-use maintenance

• After use, remove residual liquid from chemical tank, and wash away clinging chemical from inside of tank using clean water.
• Now fill up chemical tank with clean water and run the sprayer for 2 to 3 minutes to wash out residual chemical from the pump, hose, and nozzle, etc.
• Remove the residual liquid from inside the chemical tank, restart the pump, and run the sprayer until residual liquid ceases to come out of the nozzle, and then turn sprayer switch OFF.
• Wipe away moisture and dirt from equipment, and then check for damage and leaks.

Daily checks

• Before work, check to see whether or not fastened units are loose and components are missing.
• Check to make sure the spray hose is not cracked, worn and/or damaged.
• After use, always be sure to wipe dirt off of exterior, and to check for damage and/or leaks.

Cleaning water absorption strainer

After removing chemical from tank, remove the water absorption strainer at the bottom of the tank, and clean it.

1. Water absorption strainer

Cleaning lever cock strainer

Remove lever cock cap and clean strainer.

1. Lever cock cap
2. Strainer

NOTE:
Water absorption strainer

• This is a filter used to prevent dirt and dust (that for some reason has got passed the tank strainer into the tank) from getting into the pump. If the water absorption strainer becomes blocked, spraying will deteriorate, and there is a risk of the pump being adversely affected.

Lever cock strainer

• Spraying deteriorates if the lever cock strainer becomes blocked.

Sprayer storage

• Wash the equipment using the after-use maintenance procedures.
• In particular, when storing during the winter season, breakdown or damage may occur due to freezing of residual chemical and/or washing water in the pump. Run the pump until all residual liquid has exited from the nozzle, check to make sure there is no more residual liquid, turn the sprayer switch OFF, and then store the sprayer away.

Store the Garden Sprayer out of reach of children, in an indoor locale that does not freeze, is away from direct sunlight, and has good ventilation.

• Take full care in storing the sprayer, as, in some cases, the plastic components will deteriorate markedly if left in direct sunlight for a prolonged period; moreover, product caution labels will discolor and/or come off.

Useful Tips

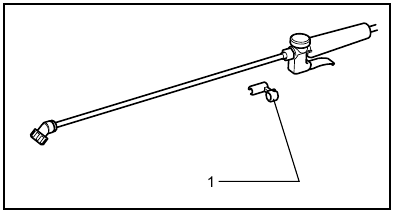

Spray pipe holder
Be sure to attach the holder in the right direction.

1. Spray pipe holder

NOTE:

• For configuration reasons, force is required in the attaching process, but care should be taken not to bend the spray pipe.

Use the holder when taking a rest, replenishing chemical liquid, and at times of storage, etc.

1. Hooking holder onto post on shoulder of tank

For Model BVF154 only

1. Hooking holder onto metal ring of back strap

Chemical tank holder post

The holder post also serves as a temporary holder for the chemical tank lid, so please hook it onto this post.

Tank strainer

Hands can be freed up by inserting the water hose in the useful notched section of the tank strainer.

1. Insert water hose here

Main plant diseases and pests

Always adhere to chemical manufacturer instructions when handling chemicals. Thoroughly dissolve chemical prior to use.

What to do if you think there is a breakdown

Before asking for repairs, first, conduct your own inspection. If you find a problem that is not explained in the manual, do not rashly dismantle the sprayer. Instead, ask Makita Authorized Service Centers, always using Makita replacement parts.

Malfunction status		Cause	Action
Motor (pump) will not work	Switch OFF	The switch is OFF	Turn switch ON
	Switch ON	Battery problem (under voltage)	Recharge If recharging is not effective, replace battery.
		Wiring connector is disconnected	Request an overhaul
		Wiring break	Request an overhaul
		Switch breakdown	Request an overhaul
		Motor breakdown	Request an overhaul
		Blown fuse	Request an overhaul
Pump is working but spray is not coming out		Blocked nozzle	Clean or replace
		No liquid in chemical tank	Replenish
		Chemical tank lid's blowhole is blocked	Clean
		Blocked piping	Request an overhaul
		Broken or cracked piping	Request an overhaul
		Disconnected or broken piping	Request an overhaul
		Blocked water absorption strainer	Remove and clean
Sprayer sprays but is abnormal or spray pressure is weak		Chemical tank lid's blowhole is blocked	Clean
		Blocked piping	Request an overhaul
		Broken or cracked piping	Request an overhaul
		Disconnected or broken piping	Request an overhaul
		Blocked water absorption strainer	Remove and clean
		Blocked lever cock strainer	Remove and clean
		Abnormal pressure regulator	Request an overhaul
		Worn gear case	Request an overhaul
A strange sound is emitted when switch is turned ON		Coupling that drives pump is broken	Request an overhaul
		Blocked nozzle	Clean or replace
When sprayer is left after being switched OFF, a large amount of liquid flows out of the nozzle		Lever cock is set to continuous spray	Set lever cock to STOP

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

•
  These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Various nozzles
• Makita genuine battery and charger

NOTE:

• Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

General Power Tool Safety Warnings

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.

DEVICE SAFETY WARNINGS

Safety Warnings for Spraying Operation:

1. Do not use the sprayer for any other purpose than spraying agricultural and horticultural chemicals for pest and weed control.
2. Do not use the sprayer for spraying flammable materials.
3. Be aware of any hazards presented by the material being sprayed. Consult the markings on the container or the information supplied by the manufacturer of the material to be sprayed.
4. Do not spray any material where the hazard is not known.
5. Concerning the use of chemical sprays, be sure to thoroughly read the chemical instructions, in order to become fully acquainted with toxicities and usage methods.
6. If chemical comes into contact with skin, immediately wash thoroughly with soap.
7. Firmly close chemical tank lid to prevent leaking.
8. Never transfer chemical to another container.
9. Always thoroughly wash empty chemical containers when mixing spray liquid and then follow chemical manufacturer's instructions to correctly dispose of containers at all times.
10. Before using the sprayer, be sure to check there are no abnormalities, such as displacement of packing from connector, looseness of screws, missing components, and/or cracked/worn/damaged hose. Using an incomplete sprayer may cause an accident and/or injury.
11. People not involved in spraying should refrain from approaching the worksite during spraying.
12. When transporting a chemical-loaded sprayer by vehicle, there is a risk of leaking, so always firmly tighten the chemical tank lid, and secure the sprayer in an upright position.
13.
    Never use items such as strongly acidic chemicals, paints, thinners, gasoline or benzene with the sprayer, as there is a danger of burns or fire.
14. Do not clean the sprayer with flammable solvents.
15. Be sure to select the appropriate chemical (taking into consideration usage method and effectiveness) to deal with the pest or weed in question.
16. An inappropriately mixed chemical may harm humans as well as damage crops/plants. When mixing chemical, thoroughly read chemical instructions, and dilute chemical correctly prior to use.
17. Always mix chemical before loading it into tank.
18. To prevent inhalation and/or contact with chemical, be sure to wear safety clothing (hat, protective goggles, protective mask, rubber gloves, long-sleeved pest-control jacket, long trousers and gumboots), so that skin is not exposed when spraying.
19. Always load the tank with chemical or clean water when operating the sprayer, as operating the sprayer with an empty tank may damage the pump.
20. If the sprayer stops running, or an abnormal sound is emitted, immediately switch OFF the sprayer, and discontinue use.
21. Constantly be aware of wind direction while spraying, to ensure spraying from upwind to downwind, in order to prevent direct chemical contact with body. Also, be careful to keep chemical from reaching surroundings, and stop using the sprayer when the wind is strong.
22. As there is a risk of chemical poisoning when spraying in a greenhouse, always ventilate while spraying.
23. Avoid spraying when atmospheric temperature is high.
24. Avoid prolonged operation of sprayer. Whenever possible, rotate operators.
25. If even a slight headache or dizziness, etc., occurs, stop spraying work immediately, and consult a doctor. Moreover, be sure to clearly inform the doctor of the name of the agrochemical being used, and the operating circumstances.
26. In cases where spray status deteriorates and nozzle needs cleaning, there is a risk of the chemical liquid coming into contact with the face, so be sure to switch OFF the sprayer, and then remove the nozzle to clean.
27. Be sure to dispose of wastewater generated from washing used containers and chemical tank appropriately in a location where it will not flow into rivers and streams and/or contaminate groundwater.
28. After spraying, if chemical remains in the chemical tank, spray hose, spray pipe and nozzle, it may cause spray injury. Be sure to fully wash away residual chemical with clean water - in particular, after spraying with herbicide.
29. Keep agrochemicals away from children. Be sure to store residual chemicals in chemical-designated storage containers.
30. After completion of spraying, be sure to wash (spray wash) equipment with clean water, drain off the washing water, and store indoors away from direct sunlight and freezing temperatures, and out of reach of children.
31. After completion of spraying, be sure to thoroughly wash entire body with soap, rinse eyes, and gargle. During spraying period, change clothes daily.

SAVE THESE INSTRUCTIONS.

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product.
MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3.
   If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
   1. Do not touch the terminals with any conductive material.
   2. Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
   3. Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

6. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50 ﾟ C (122 ﾟ F).
7. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. Follow your local regulations relating to disposal of battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged.
   Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge.
   Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10 ﾟ C - 40 ﾟ C (50 ﾟ F - 104 ﾟ F). Let a hot battery cartridge cool down before charging it.
4. Charge the battery cartridge once in every six months if you do not use it for a long period of time.

EC Declaration of Conformity

Tomoyasu Kato
Director
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi, 446-8502, JAPAN

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Makita BVF104, BVF154 - Cordless Garden Sprayer Manual
