QuickStartGuide

Cisco Small Business Pro

SPA500S 32-Button Attendant Console for Cisco

Small Business Pro SPA500 Series IP Phones

Package Contents

• SPA500S 32-Button Attendant Console

• Quick Start Guide

• Attachment Arm

• Attachment Arm Screws (2)

• Auxiliary Interconnect Cable

• Stand

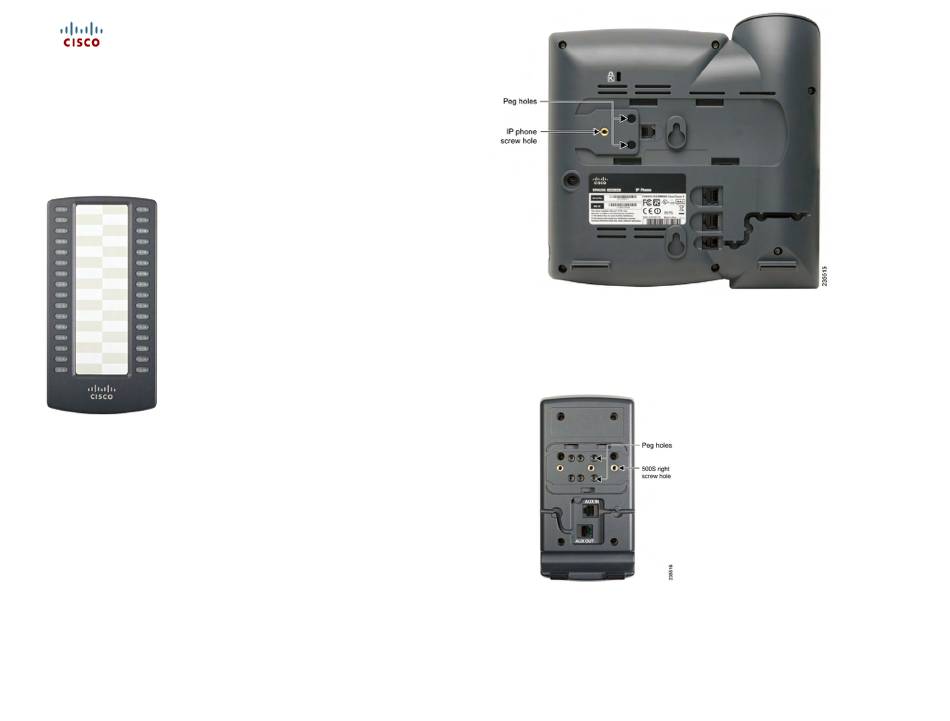

Connecting t o t he S PA500 S eries I P P hone

The following procedure describes how to attach the SPA500S to a

SPA500 Series IP Phone.

Step 1

Turn both the SPA500 Series IP Phone and the SPA500S face down.

Step 2

Align the screw hole in the SPA500 Series IP Phone with one of the

holes on the attachment arm.

Step 3

Insert the pegs on the attachment arm into the peg holes on the

SPA500 Series IP Phone.

Step 4

Using an attachment arm screw, secure the attachment arm to the

SPA500 Series IP Phone.

Step 5

Align the right screw hole in the SPA500S with the unused hole on

the attachment arm.

Step 6

Insert the pegs on the attachment arm into the peg holes on the

SPA500S.

Step 7

Using an attachment arm screw, secure the attachment arm to

the SPA500S.

Page 1 QuickStartGuide Cisco Small Business Pro SPA500S 32-Button Attendant Console for Cisco Small Business Pro SPA500 Series IP Phones Package Contents • SPA500S 32-Button Attendant Console • Quick Start Guide • Attachment Arm • Attachment Arm Screws (2) Step 5 Align the right screw hole in the SPA500S with the unused hole on •...
Page 2 Connecting a S econd S PA500S A maximum of two SPA500S attendant consoles can be connected to a AUTION SPA500 Series IP Phone. The instructions in this section are for Do not plug a telephone line cord into the AUX port. Use only the auxiliary connecting a second SPA500S.
Page 3 Using t he S PA500S Step 4 Using the attachment arm screw, secure the attachment arm to the first SPA500S. You can press a button on the SPA500S to dial an associated line, pick up Step 5 Align the right screw hole in the second SPA500S with the a call ringing at a line, or transfer a call to the line.
