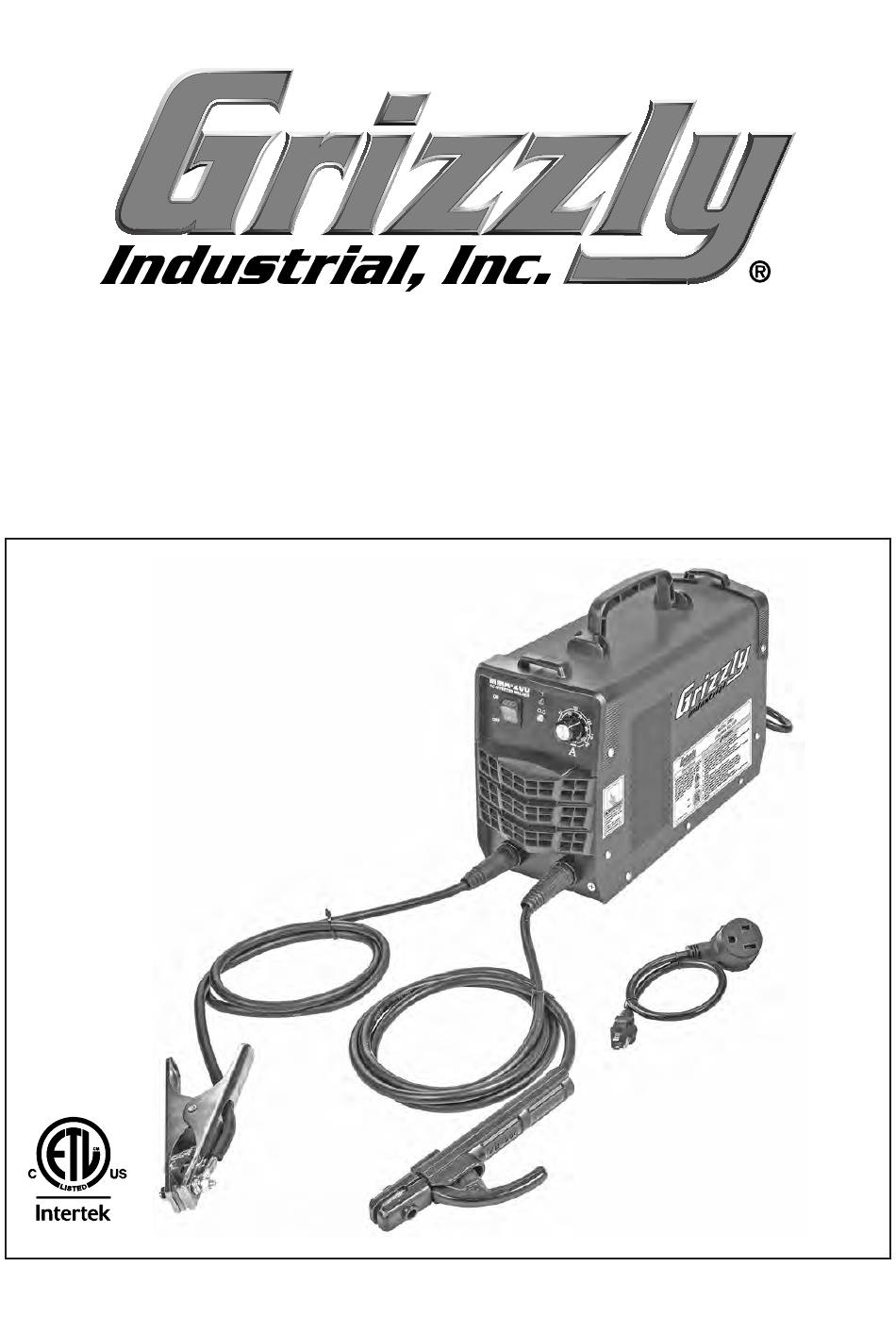

- Page 1 MODEL G0881 200A MMA WELDER OWNER'S MANUAL (For models manufactured since 03/19) 4009939...
- Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.
- Page 3 Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL G0881 200A MMA WELDER Product Dimensions: Weight ..................................... 18 lbs. Width (side-to-side) x Depth (front-to-back) x Height ................6-1/2 x 17 x 11-1/2 in.
-
Page 4: Safety Instructions For Machinery
SAFETY For Your Own Safety, Read Instruction Manual Before Operating This Machine The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of impor- tance of the safety messages. - Page 5 WEARING PROPER APPAREL. Do not wear FORCING MACHINERY. Do not force machine. clothing, apparel or jewelry that can become It will do the job safer and better at the rate for entangled in moving parts. Always tie back or which it was designed. cover long hair.
-
Page 6: Safety Caution
Safety Caution! On the process of welding or cutting, there will be any possibility of injury, so please take protection into consideration during operation. More details please review the Operator Safety Guide, which complies with the preventive requirements of the manufacturer. Electric shock--may lead to death!! ·Set the ground fitting according to applying standard. -
Page 7: About The Machine
About the machine The welding machine is a rectifier adopting the most advanced inverter technology. The development of inverter gas-shielded welding equipment profits from the development of the inverter power supply theory and components. Inverter gas-shielded welding power source utilizes high-power component MOSFET to transfer 50/60HZ frequency up to 100KHZ, then reduce the voltage and commutate, and output high-power voltage via PWM technology. - Page 8 INSTALLMENT The induction power is equipment with power voltage compensation equipment. When power voltage moves between ±15% of rated voltage, it still can work normally. When use long cable, in order to prevent voltage form going down, bigger section cable is suggested. If cable is too long, it may affect the performance of the power system.
-
Page 9: Operation
polarity of the fastening plug. 6. According to input voltage grade, connect Site resistance • Toxic gases are given off during the MIG welding process. Always use in a well-ventilated area. If distance of work piece and machine is too far (500-l00m), and the cables (torch cable and ground cable) are too long, please choose cable of bigger section to minimize the reduction of the voltage. -
Page 10: Panel Instruction
2) Insert plug of remote control in socket of remote control correctly and tighten firmly in order to prevent poor contact. 3) If remote control device is not be used, make sure the switch is on "OFF" position, or welding current will not be adjusted on panel. Warning! Before connecting operation please make sure all the power is turned off. -
Page 11: Notes Or Preventive Measures
NOTES OR PREVENTIVE MEASURES Environment 1) The machine can perform in environment where conditions are dry with a dampness lever of max 90%. 2) Ambient temperature is between 10 to 40 degrees centigrade. 3) Avoid welding in sunshine or drippings. 4) Do not use the machine in environment where condition is polluted with conductive dust on the air or corrosiveness gas on the air. -
Page 12: Questions To Be Run Into During Welding
QUESTIONS TO BE RUN INTO DURING WELDING Fittings, welding materials, environment factor, supply powers maybe have something to do with welding. User must try to improve welding environment. A. Arc-striking is difficult and easy to pause 1. Make sure quality of tungsten electrode is high. 2. -
Page 13: Check Fault
CHECK FAULT Notes: If user wants to operate machine as following, the operator must be a personnel in a specific field of electricity and safety and hold the relevant certificate that proves their ability and knowledge. Before maintenance, contact with our company for authorization is suggested. 1. - Page 14 Problem Solutions Indicator of power switch is not lit, A. Make sure power switches close. fan is not working B. Make sure electrify wire net (which is connected to input cable) is in and there is not work. welding output. A.
-
Page 15: Warranty And Returns
WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
