DS-1105KI Network Keyboard
Quick Start Guide

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-1105KI

Summary of Contents for HIKVISION DS-1105KI

  • Page 1 DS-1105KI Network Keyboard Quick Start Guide...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 DS-1105KI Network Keyboard Quick Start Guide PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER...
  • Page 4 DS-1105KI Network Keyboard Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device,a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 DS-1105KI Network Keyboard Quick Start Guide collection points. For more information see: http://www.recyclethis.info. 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information.
  • Page 6 Before using the product, please read the user manual carefully and keep it for future reference. Data Acquisition Visit our website (http://www.hikvision.com/) for user manuals, application tools and development materials. Scan the QR code below to obtain more operation information.
  • Page 7 DS-1105KI Network Keyboard Quick Start Guide Applicable Model This manual is applicable to DS-1105KI Network Keyboard. Important Clause Please strictly abide by the applicable laws and regulations for the use and maintenance of monitoring interface. It is illegal to use video monitoring device for illegal purposes, or to explore other people's privacy.
  • Page 8 DS-1105KI Network Keyboard Quick Start Guide Operation Description ● ● If device is video recorder: ○ Press a numeric button and MON button to select an output channel. ○ Number represents output channel ID. Go to Keyboard → Channel → Output Channel for the ID.
  • Page 9 DS-1105KI Network Keyboard Quick Start Guide Safety Instructions ● DangerThis equipment is not suitable for use in locations where children are likely to be present. ● Do not ingest battery. Chemical burn hazard! ● This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

  • Page 10: Table Of Contents

    DS-1105KI Network Keyboard Quick Start Guide Contents Chapter 1 Legal Informationi Chapter 1 Regulatory Informationiii Chapter 1 Prefacev 1.1 Data Acquisitionv 1.2 Applicable Modelvi 1.3 Important Clausevi 1.4 Symbol Conventionsvi 1.5 Operation Conventionvi 1.6 Safety Instructionsviii Chapter 1 Product Introduction1 1.1 Panel Introduction1...
  • Page 11 DS-1105KI Network Keyboard Quick Start Guide 4.5.1.1 Instant Playback17 4.5.1.2 Playback by Time17 4.5.2 Video Wall Playback17 4.5.2.1 Instant Playback17 4.5.2.2 Playback by Time17 4.6 Video Recorder18 4.6.1 Remote Panel18 4.6.2 Live View21 4.6.3 PTZ Control21 4.6.4 Playback21 4.7 Connect the Device Through Serial Ports21 4.7.1 Connect Video Recorders21...

  • Page 12: Chapter 1 Product Introduction1

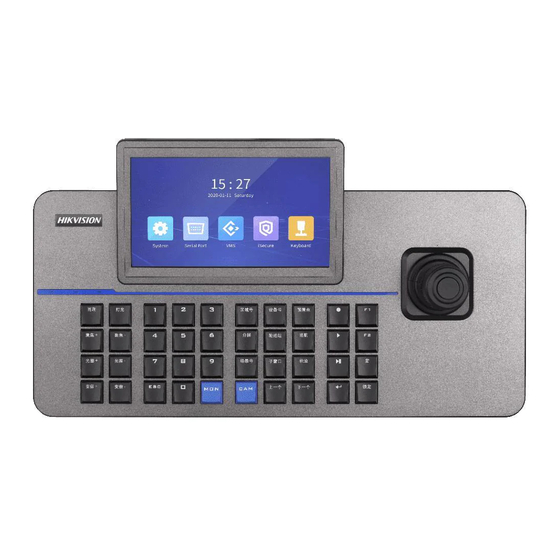

    DS-1105KI Network Keyboard Quick Start Guide Chapter 1 Product Introduction DS-1105KI is a network keyboard independently developed by Hikvision. It features in 7-inch full view multi-touch LCD screen and four-dimensional joystick. It supports network access to DVR, DVS, NVR, network camera, network dome, video integrated platform, decoder, iSecure, HikCentral and other platform software, with powerful functions and quick and simple operations.

  • Page 13: Interface Introduction2

    DS-1105KI Network Keyboard Quick Start Guide 1.2 Interface Introduction Figure 1-2 Interface Table 1-1 Interface Description Description Description Microphone Input Audio Output HDMI Interface VGA Interface USB Interface RS-485 Interface RS-232 Interface Network Interface 12 VDC Power Supply Power Switch...

  • Page 14: Chapter 2 Activation3

    DS-1105KI Network Keyboard Quick Start Guide Chapter 2 Activation The network keyboard can be activated by local menu, and SADP software. Here we take local menu as an example. Steps 1. Connect your network keyboard power supply to an electrical outlet, and turn on the network keyboard.

  • Page 15: Chapter 3 Network4

    DS-1105KI Network Keyboard Quick Start Guide Chapter 3 Network Network parameters must be properly configured before you can add network devices and operate the network keyboard over network. Steps 1. Go to System → Network. 2. Configure network parameters. – Enable DHCP to obtain IP settings automatically.

  • Page 16: Chapter 4 Keyboard5

    DS-1105KI Network Keyboard Quick Start Guide Chapter 4 Keyboard Keyboard mode is mainly applied to small-sized security projects. Network keyboard works as a control center and manages security devices in it. 4.1 Login Steps 1. Tap Keyboard at home page.

  • Page 17: Add Devices6

    DS-1105KI Network Keyboard Quick Start Guide 4.2 Add Devices Up to 4000 devices can be added. 4.2.1 Manually Add Steps 1. Go to Keyboard → Device. Figure 4-2 Device Management 2. Tap Center Device or IPC/IP Dome as desired. 3. Tap 4.
  • Page 18 DS-1105KI Network Keyboard Quick Start Guide Figure 4-3 Add Center Device...

  • Page 19: Add In Batches8

    DS-1105KI Network Keyboard Quick Start Guide Figure 4-4 Add Network Camera 4.2.2 Add in Batches Add Online Devices in Batches You can add the devices with the same user name and password in batches. Steps 1. Go to Keyboard → Device.

  • Page 20: Import Input Channels In Batches9

    DS-1105KI Network Keyboard Quick Start Guide Figure 4-6 Online Devices 3. Check the devices to be added and tap 4. Enter user name and password. 5. Tap Add. Import Input Channels in Batches The information of added input channel can be generated into an excel file and exported to the USB flash drive for backup.

  • Page 21: Preview By Operating Keyboard Shortcut10

    DS-1105KI Network Keyboard Quick Start Guide 4.3.2 Preview by Operating Keyboard Shortcut Press the keys of the keyboard to preview the input channel. Steps 1. Press 0+MON. 2. Preview the channel as desired. ● Press Num+CAM to preview the signal of the corresponding channel.

  • Page 22: Ptz Control11

    ● Press Num+CAM to control PTZ without previewing images from speed domes. ● The captured image and the recording can be saved in USB flash drive or uploaded to FTP server. For FTP configuration, refer to DS-1105KI Network Keyboard User Manual. 4.3.3 PTZ Control...

  • Page 23: Video Wall12

    DS-1105KI Network Keyboard Quick Start Guide ● Press Num+PATROL to call the patrol. ● Press Num+PATTERN to call the pattern. 4.4 Video Wall 4.4.1 Video Wall Configuration Configure Region Divide a video wall into several regions to manage video wall by region.

  • Page 24: Link Output Channel To Video Wall13

    DS-1105KI Network Keyboard Quick Start Guide Link Output Channel to Video Wall Steps 1. Tap of region to configure. Figure 4-10 Region Configuration 2. Tap of a grid. 3. Select a decoding device and select its output channel. 4. Tap OK to finish setting.

  • Page 25: Video Wall Control14

    DS-1105KI Network Keyboard Quick Start Guide Figure 4-11 Add Output 4.4.2 Video Wall Control Layout Operation Select a monitor to open, close, resize, and divide windows. Steps 1. Press Num+REGION. 2. Tap to select a monitor. 3. Operate the window as desired.

  • Page 26: Window Operation15

    DS-1105KI Network Keyboard Quick Start Guide Divide window Press Num+MON and press Num+MULT to divide the window. Expand/restore Press Num+MON, press Num+WIN to select a sub-window, and press sub-window F2 to expand the sub-window to cover the whole monitor. Press F2 again to restore the sub-window.

  • Page 27: Ptz Control16

    DS-1105KI Network Keyboard Quick Start Guide Figure 4-12 Scene Table 4-2 Icon Description Icon Description Switch scene. Save scene. – Press Num+SCENE to switch scenes. 4.4.3 PTZ Control You can control the added speed dome, like control PTZ movement, turn on/off light, turn on/off wiper, zoom in/out, increase/decrease focus, increase/decrease iris, set/call preset, patrol and pattern.

  • Page 28: Playback17

    DS-1105KI Network Keyboard Quick Start Guide 4.5 Playback 4.5.1 Local Playback Play videos on the touchscreen. Instant Playback Play videos in 3/5/10/15 minutes. Steps 1. Start local live view. For detailed steps, see Preview by Operating Touchscreen and Preview by Operating Keyboard Shortcut.

  • Page 29: Video Recorder18

    DS-1105KI Network Keyboard Quick Start Guide 2. Tap , tap By Time, and select a day in calendar. 4.6 Video Recorder Control video recorder by operating video record remote panel. 4.6.1 Remote Panel Press Num+DEVICE to show video recorder remote panel. Num refers to video recorder ID. Go to Device for video recorder ID.
  • Page 30 DS-1105KI Network Keyboard Quick Start Guide Button Description characters. ● In editing mode, tap it to delete the content before the cursor. ● Check/uncheck a checkbox. EDIT ● In setting menu, tap it to enter editing mode. ● Enter main menu interface.
  • Page 31 DS-1105KI Network Keyboard Quick Start Guide Figure 4-14 Remote Panel (Enable PTZ) Table 4-4 Button Description Button Description Enable PTZ In PTZ live view mode, enable PTZ to enter PTZ control mode. Numeric Button Switch to the corresponding channel. PRESET Tap PRESET+Num to call the preset.

  • Page 32: Live View21

    DS-1105KI Network Keyboard Quick Start Guide 4.6.2 Live View Video Recorder (Version before 4.0) Whatever interface the video recorder is in, tap ESC till you enter the live view mode. Video Recorder (Version: 4.0 and above) Whatever interface the video recorder is in, tap directional button to enter the live view mode.
  • Page 33 DS-1105KI Network Keyboard Quick Start Guide Note T+ and T- of RS-485 interface correspond to D+ and D- of KB port respectively. 2. Enter Serial Port Control, and select DVR/NVR. 3. Select Device Address. 4. Select Device Version. Note ● The device version is the firmware version of the corresponding device.

  • Page 34: Connect Analog Matrix23

    DS-1105KI Network Keyboard Quick Start Guide Figure 4-16 Connect Video Recorder (PTZ Enabled) 4.7.2 Connect Analog Matrix The keyboard can be connected to the analog matrix through RS-232 serial port. Steps 1. Connect the analog matrix to the RS-232 interface on the keyboard.

  • Page 35: Connect Analog Dome24

    DS-1105KI Network Keyboard Quick Start Guide 3) Press 2+CAM to switch the input port 2 to the output port 1. 4.7.3 Connect Analog Dome The keyboard can be connected to the analog dome through RS-485 serial port to control PTZ control, set and call preset, call patrol and pattern, etc.

  • Page 36: Chapter 5 Isecure Mode25

    DS-1105KI Network Keyboard Quick Start Guide Chapter 5 iSecure Mode 5.1 Login Steps 1. Tap iSecure at home page. Figure 5-1 Log in to iSecure 2. Tap Server IP on the upper right corner. Figure 5-2 Server IP Configuration 3. Select Http or Https as the login mode.

  • Page 37: Local Live View26

    DS-1105KI Network Keyboard Quick Start Guide keyboard. ● Different users have different kinds of permissions. Please refer to the messages on the interface. 5.2 Local Live View You can preview the cameras on iSecure platform on the touchscreen. 5.2.1 Enable Local Live View Preview the images of cameras by operating keyboard shortcut.

  • Page 38: Video Wall Operation27

    DS-1105KI Network Keyboard Quick Start Guide 5.3 Video Wall Operation 5.3.1 Region Configuration The whole video wall can be divided into different regions. Steps 1. Tap on the upper-right corner. 2. Tap Figure 5-3 Add Region 3. Enter video wall ID, start and end coordinates.

  • Page 39: Ptz Operation28

    DS-1105KI Network Keyboard Quick Start Guide ● Select a video wall to switch scenes and display the current layout. ● Switch the designated camera to the designated monitor or sub-window of the video wall. ● Do not support camera group.

  • Page 40: Chapter 6 Hikcentral Mode29

    DS-1105KI Network Keyboard Quick Start Guide Chapter 6 HikCentral Mode The keyboard is accessible to HikCentral platform, and the images of the cameras accessible to HikCentral platform can be displayed on the video wall and previewed locally. 6.1 Login Steps 1.

  • Page 41: Local Live View30

    DS-1105KI Network Keyboard Quick Start Guide 6.2 Local Live View You can preview the cameras on HikCentral platform on the touchscreen. 6.2.1 Enable Local Live View Preview the images of cameras by operating keyboard shortcut. Steps 1. Press 0+MON to enter local live view.

  • Page 42: Ptz Operation32

    DS-1105KI Network Keyboard Quick Start Guide Note In HikCentral interface, press Num+CAM to control PTZ without previewing the images from speed domes. 6.2.2 PTZ Operation You can control the added speed dome, like control PTZ movement, turn on/off light, turn on/off wiper, zoom in/out, increase/decrease iris, increase/decrease focus, set and call preset, call patrol/pattern.

  • Page 43: Video Wall Control32

    DS-1105KI Network Keyboard Quick Start Guide 4. Tap OK. Note ● Up to 16 regions are supported. ● The maximum region specification is 6 × 8. ● If you do not configure the region, region 1 corresponds to video wall 1, region 2 corresponds to video wall 2, and region 16 corresponds to video wall 16 by default.
  • Page 44 DS-1105KI Network Keyboard Quick Start Guide Method 2 1. Select a wall in the wall list. 2. Press Num+MON. 3. Select a channel with records to start playback.
