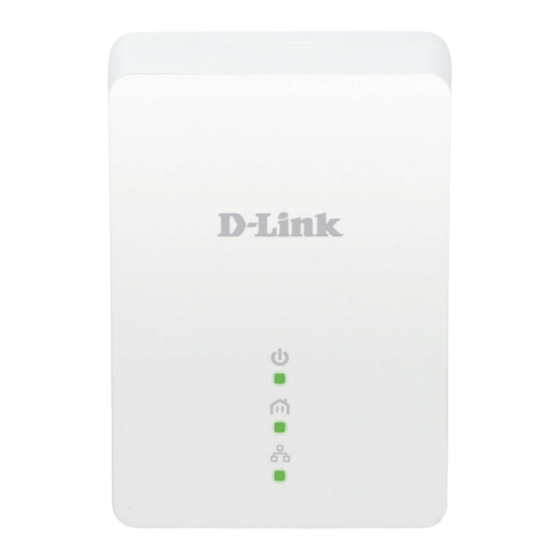

- Page 1 Version 2.10 | 09/16/2014 User Manual Powerline AV Mini Adapter DHP-208AV/DHP-209AV...
-
Page 2: Preface
Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description May 08, 2014 • Initial release for hardware revision B1 2.10... -
Page 3: Table Of Contents
Package Contents ................. 4 Introduction ................... 5 Features .................... 5 Hardware Overview ..............6 LEDs ................... 6 Connection ................7 Hardware Installation ............8 Push Button Security ..............9 Powerline Installation Considerations ........12 Troubleshooting ..............14 Technical Specifications ..........15 D-Link DHP-208AV/DHP-209AV User Manual... -
Page 4: Product Overview
Product Overview Package Contents DHP-208AV • D-Link DHP-208AV Powerline AV Mini Adapter • Ethernet Cable • Quick Install Guide DHP-209AV • D-Link DHP-208AV Powerline AV Mini Adapter x2 • Ethernet Cable x2 • Quick Install Guide D-Link DHP-208AV/DHP-209AV User Manual... -
Page 5: Introduction
Section 1 - Product Overview Introduction D-Link announces a fast, 200Mbps* Powerline AV Mini Adapter which allows you to connect your computers, networking devices and gaming devices through the most pervasive medium in your house - the electric wiring - and share Internet connections, share printers, transfer files, play games, and more. -
Page 6: Hardware Overview
• Off. The device is not receiving electrical power. Ethernet LED • Solid. The Ethernet port is linked. • Off. There is no Ethernet connection. D-Link DHP-208AV/DHP-209AV User Manual... -
Page 7: Connection
Simple Connect Button Press to secure your network or reset your device back to the factory default settings. Refer to page 9 for more information. Ethernet Port Connects to your PC or Ethernet device through an Ethernet cable. D-Link DHP-208AV/DHP-209AV User Manual... -
Page 8: Hardware Installation
Hardware Installation Power Plug in the DHP-208AV into an AC wall outlet. Note that it is not recommended to connect the DHP-208AV to a power strip or UPS. Note: Power source is confirmed when the Power LED on the DHP-208AV is illuminated. -
Page 9: Push Button Security
Press the Simple Connect Button of the first adapter for no more than three seconds. The Power LED will start blinking after you release the button. The adapter will create a private, randomly generated encryption key that each Powerline AV Mini Adapter will use. 3. Second Adapter D-Link DHP-208AV/DHP-209AV User Manual... - Page 10 Simple Connect Button on any adapter in your existing Powerline network for no more than two seconds. The Power LED will start blinking after you release the button. Note: Both Simple connect buttons must be pressed within two minutes. Now your new adapter will be able to connect to your existing Powerline network. D-Link DHP-208AV/DHP-209AV User Manual...
- Page 11 Section 2 - Installation ROOM A ROOM B Internet Router DHP-208AV DHP-208AV ROOM A ROOM B Internet Router DHP-208AV DHP-208AV D-Link DHP-208AV/DHP-209AV User Manual...
-
Page 12: Powerline Installation Considerations
5. To help prevent against electrical shock, be sure to plug the power cables into properly grounded electrical outlets. 6. The Powerline device is equipped with a three-pronged plug to help ensure proper grounding. Do not use adapter plugs or remove the grounding prong from the cable. D-Link DHP-208AV/DHP-209AV User Manual... - Page 13 7. Do not cover or block the vents on the device. 8. Make sure that the device has adequate room for ventilation. 9. Avoid placing the device near a heater or radiator. 10. The device should be located only where sufficient ventilation can be ensured. D-Link DHP-208AV/DHP-209AV User Manual...
-
Page 14: Troubleshooting
If you are having problems configuring the network with two or more Powerline AV Mini Adapters, please make a reset all of the Network adapters and start configuring the adapters again. Please see page 9 for more details. D-Link DHP-208AV/DHP-209AV User Manual... -
Page 15: Technical Specifications
Humidity • Operation: 10% ~ 90% RH • Compatible with IEEE1901 • Storage: 5% ~ 90% RH • Homeplug AV • CE Class B / FCC Safety • CE LVD / UL Encryption • 128-bit AES D-Link DHP-208AV/DHP-209AV User Manual...
