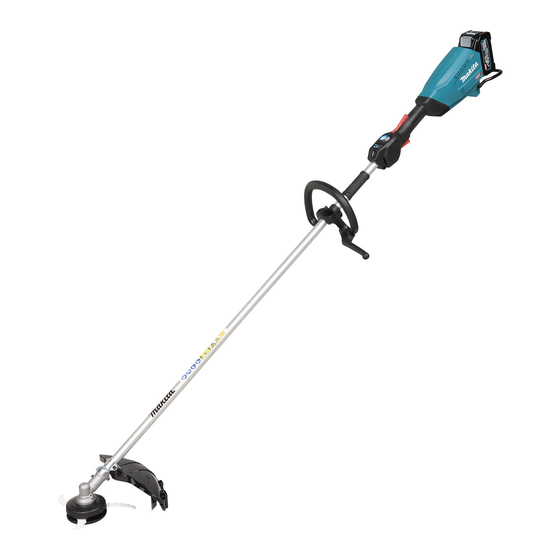

Makita UR017G Instruction Manual
Cordless grass trimmer
Hide thumbs
Also See for UR017G:
- Instruction manual (177 pages) ,
- Instruction manual (149 pages) ,
- Instruction manual (137 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Makita UR017G
Summary of Contents for Makita UR017G
- Page 1 INSTRUCTION MANUAL Cordless Grass Trimmer UR016G UR017G Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: UR016G UR017G Handle type Bike handle Loop handle No load speed 3: 6,500 min (at each rotation speed level) 2: 5,300 min 1: 3,500 min Overall length 1,792 mm (without cutting tool and battery) Nylon cord diameter 2.0 mm... -
Page 3: General Power Tool Safety Warnings
Do not expose power tools to rain or wet con- Only for EU countries Ni-MH ditions. Water entering a power tool will increase Due to the presence of hazardous com- Li-ion the risk of electric shock. ponents in the equipment, waste electrical and electronic equipment, accumulators Do not abuse the cord. -
Page 4: Intended Use
Battery tool use and care Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically desig- nated battery packs. Use of any other battery packs may create a risk of injury and fire. -
Page 5: General Instructions
General instructions During operation, keep bystanders or animals at least 15 m away from the tool. Stop the tool Never allow people unfamiliar with these as soon as someone approaches. instructions, people (including children) with Never operate the tool while people, especially reduced physical, sensory or mental capabil- children, or pets are nearby. -
Page 6: Putting Into Operation
14. If the battery cartridge gets wet, drain the If the tool gets heavy impact or fall, check the water inside and then wipe it with a dry cloth. condition before continuing work. Check the Dry the battery cartridge completely in a dry controls and safety devices for malfunction. -
Page 7: Cutting Tools
26. Avoid working in poor environment where To avoid kickback: increased user fatigue is expected. Apply the segment between 8 and 11 27. Do not use the tool in bad weather where visi- o'clock. bility is limited. Failure to do so may cause fall or Never apply the segment between 12 and incorrect operation due to low visibility. -
Page 8: First Aid
Always wear protective gloves when handling WARNING: DO NOT let comfort or familiarity the cutting blade. with product (gained from repeated use) replace Always clean dust and dirt off the tool. Never strict adherence to safety rules for the subject use gasoline, benzine, thinner, alcohol or the product. - Page 9 Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life Charge the battery cartridge before completely discharged.
-
Page 10: Parts Description
PARTS DESCRIPTION UR016G UR017G Fig.4 Speed indicator ADT indicator Caution lamp Main power button (ADT = Automatic Torque Drive Technology) Reverse button Battery cartridge Lock-off lever Switch trigger Hanger Handle Barrier (country specific) Protector Protector extension (for Shoulder harness nylon cutting head /... -
Page 11: Functional Description
Tool / battery protection system FUNCTIONAL DESCRIPTION The tool is equipped with a tool/battery protection system. This system automatically cuts off power to WARNING: Always be sure that the tool is the motor to extend tool and battery life. The tool will switched off and the battery cartridge is removed automatically stop during operation if the tool is placed before adjusting or checking function on the tool. -
Page 12: Main Power Switch
Indicating the remaining battery Main power switch capacity Tap the main power button to turn on the tool. To turn off the tool, press and hold the main power Press the check button on the battery cartridge to indi- button until the speed indicator goes off. cate the remaining battery capacity. The indicator lamps light up for a few seconds. Fig.7 ► 1 . - Page 13 To start ADT, press and hold the reverse button until the UR017G ADT indicator turns on. After that, tap the main power button to select the cutting tool attached to the tool.
-
Page 14: Electronic Function
Reverse button for debris removal ASSEMBLY WARNING: Switch off the tool and remove WARNING: Always be sure that the tool is the battery cartridge before you remove entan- switched off and battery cartridge is removed gled weeds or debris which the reverse rotation before carrying out any work on the tool. - Page 15 For UR017G Hex wrench storage Attach the upper and lower clamps on the damper. Put the handle on the upper clamp and fix it with CAUTION: Be careful not to leave the hex hex socket head bolts as illustrated. wrench inserted in the tool head. It may cause injury and/or damage to the tool. When not in use, store the hex wrench as illustrated to keep it from being lost.
- Page 16 For nylon cutting head / plastic blade Correct combination of the cutting tool and the protector CAUTION: Take care not to injure yourself on the cutter for cutting the nylon cord. CAUTION: Always use the correct combi- Attach the protector to the clamp using bolts. After nation of cutting tool and the protector.
-
Page 17: Cutter Blade
Cutter blade Insert the hex wrench through the hole in the gear case to lock the spindle. Rotate the spindle until the hex wrench is fully inserted. CAUTION: When handling a cutter blade, always wear gloves and put the blade cover on the blade. CAUTION: The cutter blade must be well pol- ished, and free of cracks or breakage. -
Page 18: Nylon Cutting Head
Put on the shoulder harness and fasten the buckle. procedures in reverse. Plastic blade NOTICE: Be sure to use genuine Makita plastic blade. Fig.30 Clasp the hook on the shoulder harness to tool's hanger. Fig.29 ► 1. Plastic blade 2. Spindle 3. Hex wrench 4. Loosen 5. Tighten Insert the hex wrench through the hole in the gear case to lock the spindle. - Page 19 ► 1 . Buckle The shoulder harness features a means of quick release. Simply squeeze the sides of the buckle to release the For UR017G tool from the shoulder harness. Wear the shoulder harness on your left shoulder. Fig.37 Fig.34 ► 1 .
- Page 20 UR016G Fig.38 ► 1 . Hanger 2. Hex socket head bolt Adjust the hanger position as shown in the figure and then tighten the hex socket head bolt. Fig.40 UR017G 750 mm 100-300 mm 750 mm Fig.39 The hanger position from the ground Fig.41 The cutting tool position from the ground When using a nylon cutting head (bump &...
-
Page 21: Maintenance
Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Cleaning the tool Clean the tool by wiping off dust, dirt, or cut off grass with a dry cloth or one dipped in soapy water and wrung out. - Page 22 95-M10L 3 m (9 ft) 100 mm (3-15/16″) 80 mm (3-1/8″) Fig.43 22 ENGLISH...
- Page 23 96-M10L 3 m (9 ft) 100 mm (3-15/16″) Fig.44 23 ENGLISH...
-
Page 24: Troubleshooting
► 1 . Arrow on the protector 2. Arrow on the blade TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. -
Page 25: Optional Accessories
The use of any other accessory or attachment may result in serious personal injury. CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. - Page 28 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885A21-920 www.makita.com 20221110...
