Boiler control

Boiler regression

Boiler regression
The Hometronic Manager can be connected to a Honeywell
heating controller (MCR 35, MCR 36, MCR 40 or MCR 200) and
thus control the boiler directly.
Prepare the cables in accordance with the table on Page 3.
►
Lay the cable between the heating control and the Hometronic
►
Manager.
Wire the plug-in connection of the Hometronic Manager to the
►
heating controller in accordance with the following figure.
If you connect several Hometronic Managers to a heating control-
ler:
Loop the connections through in accordance with the connec-
►
tion diagram on Page 4.
At the MCR 200 controller the temperature selection and ground
input lie at different terminals, depending on the respective de-
sign.

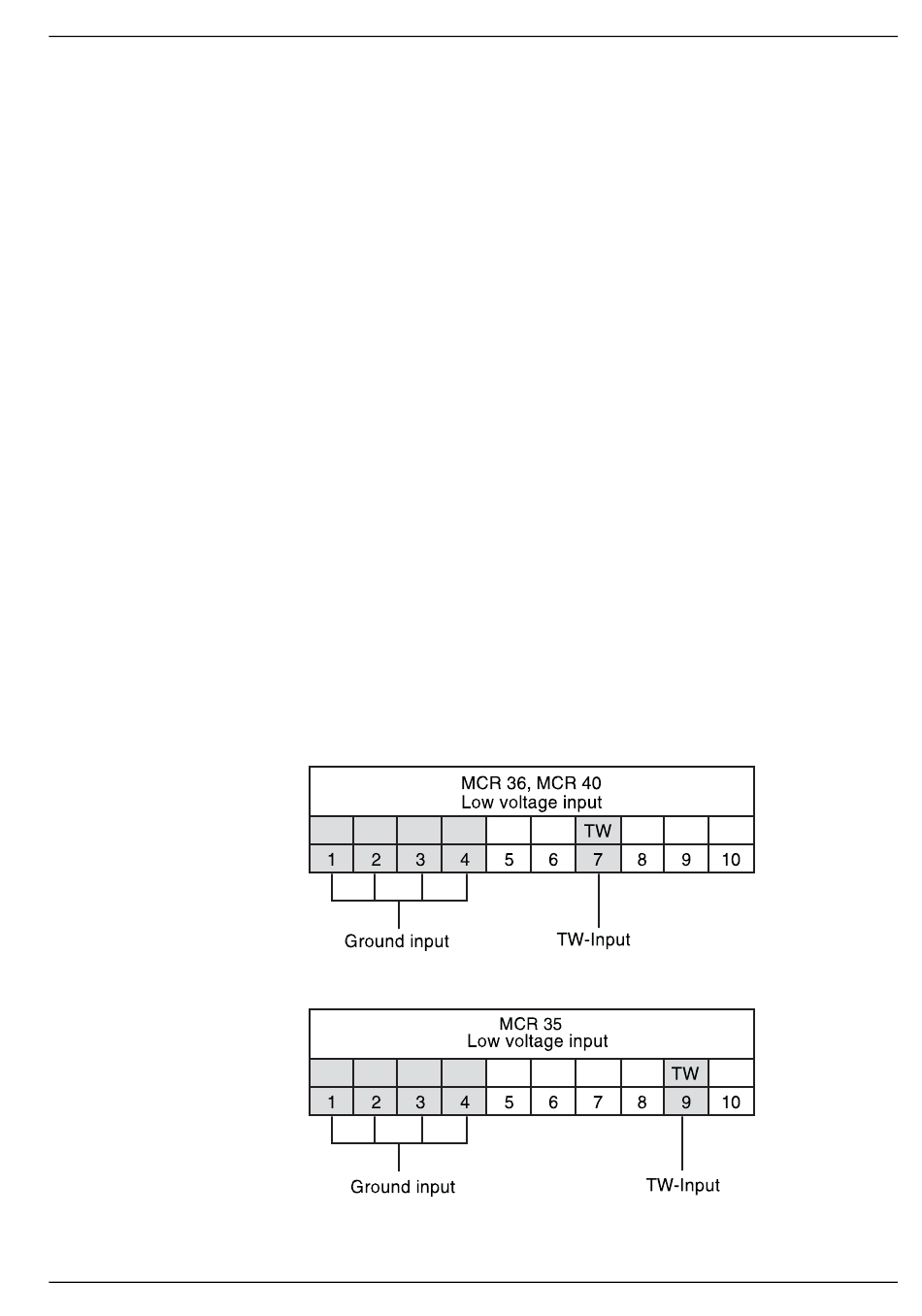

At the controllers MCR 35, MCR 36 and MCR 40 the temperature
selection and ground input lie at the following terminals:
