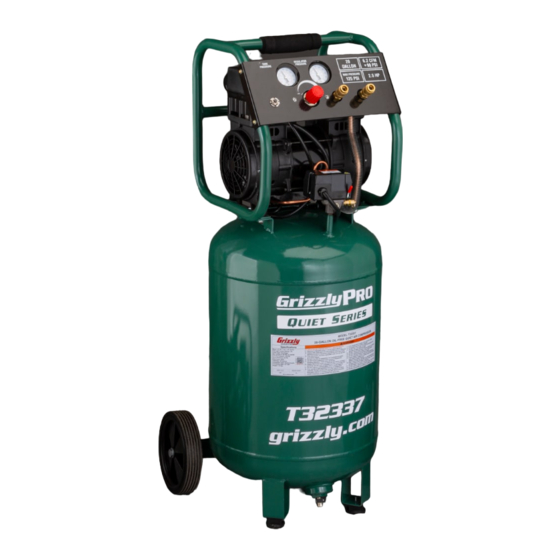

- Page 1 MODEL T32337 20-GALLON OIL-FREE QUIET AIR COMPRESSOR OWNER'S MANUAL (For models manufactured since 11/20)
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ................................Safety Rules ................................Precautions ................................Basic Air Compressor Components ......................... Assembling the Air Compressor ..........................Electrical Power Requirements ..........................Operations ................................Maintenance ................................Service ..................................Troubleshooting ............................... Glossary Terms ............................... Parts ..................................Warranty & Returns .............................. -
Page 3: Introduction
INTRODUCTION Thank you for purchasing this superior quality portable air compressor from Grizzly Industrial, Inc. When operating and maintaining this product as instructed in this manual, your air compressor will give you many years of reliable service. Product Specifications: This Air Compressor is oil-less, dual pump, quiet, and a portable product. -
Page 4: Safety Rules
WARNING! Failure to comply with instructions in this manual could result in personal injury, property damage, and / or voiding of your warranty. Grizzly Industrial, Inc. will not be liable for any damage because of failure to follow these instructions. - Page 5 SAFETY RULES Improper operation or maintenance of this product could result in serious injury and WARNING! property damage. Read and understand all warnings and operating instructions before using this equipment. When using air tools, basic safety precautions should always be followed to reduce the risk of personal injury.
- Page 6 SAFETY RULES Risk of Eye or Head Injury What could happen: Air powered equipment and power tools are capable of propelling materials such as fasteners, metal chips, saw dust, and • other debris at high speed which could result in serious eye injury. Compressed air can be hazardous.
- Page 7 SAFETY RULES Risk of Hearing Loss What could happen: Long term exposure to noise produced from the operation of air tools can lead to permanent hearing loss. • How to prevent it: Always wear ANSI S3.19 hearing protection when using a compressor. •...
- Page 8 SAFETY RULES Risk of Injury (Cont.) How to prevent it: Never carry the tool by the hose. • Avoid unintentional starting. • Repair servicing should be done only by an authorized service representative. • Never operate tool while under the influence of drugs or alcohol. •...
- Page 9 SAFETY RULES Risk of Entanglement What could happen: Tools containing moving elements or driving other moving tools (grinding wheels, sockets, sanding discs, etc.) can become • entangled in hair, clothing, jewelry and other loose objects, resulting in injury. How to prevent it: Never wear loose-fitting clothes or apparel that contain loose straps, ties, etc., which could become entangled in moving parts.
-
Page 10: Precautions
PRECAUTIONS The power cord on this product contains lead, a chemical known to the state of California to WARNING! cause cancer and birth defects or other reproductive harm. Wash hands after handling Precautions Drain the moisture from the tank daily to help prevent corrosion. •... -
Page 11: Basic Air Compressor Components
BASIC AIR COMPRESSOR COMPONENTS Precautions Oil-less air compressor are factory lubricated for life and do not require any oil. The basic components of the air compressor are the electric motor, pump, pressure switch, and tank. The electric motor powers the pump. The electric motor is equipped with an overload protector and an automatic reset. -
Page 12: Assembling The Air Compressor
ASSEMBLING THE AIR COMPRESSOR Assembling the Air Compressor Unpack the air compressor. Inspect the unit for damage. If the unit has been damaged in transit, contact the carrier and complete a damage claim. Do this immediately because there are time limitations to damage claims. The carton should contain the following: •... -
Page 13: Electrical Power Requirements
ELECTRICAL POWER REQUIREMENTS Electrical Wiring Refer to the Product Specifications on Page 3 for the voltage and amperage requirements of the T32337. For best performance and reliable starting, the air compressor must be plugged into a dedicated circuit, as close as possible to the fuse box or circuit breaker. The compressor will use the full capacity of a 20 amp circuit. -
Page 14: Operations
OPERATIONS Breaking in the Pump 1. Turn the switch to the OFF position. 2. Open the drain valve. Turn counterclockwise (loosen). 3. Plug in the air compressor and switch the power switch to the ON position. 4. The compressor will start. Allow the compressor to run for 15 minutes to break in the internal parts. - Page 15 OPERATIONS Operating Instructions When adjusting from a higher to a lower pressure, turn the knob counterclockwise to reach the WARNING! desired pressure. Do not exceed operating pressure of the tool or accessory being used. 5. Adjust the regulator to the working pressure of the tool (never exceed 90 PSI). Shut Down 1.
-
Page 16: Maintenance
MAINTENANCE Maintenance To avoid personal injury, always shut off and unplug the compressor and relieve all WARNING! Air pressure from the system before performing any service on the air compressor. Relieve the air pressure in the system and open the drain valve on the bottom of the tank to drain. WARNING! Condensation will accumulate in the tank. -
Page 17: Troubleshooting
TROUBLESHOOTING Troubleshooting Troubleshooting problems may have similar causes and solutions. NOTE! Low pressure, not enough air, or compressor does not stop. • Tank drain valve is open: Close drain valve. Prolonged excessive air. • Decrease amount of air used. Compressor not large enough for job. •... - Page 18 TROUBLESHOOTING Troubleshooting Excessive wire length. • Furnish adequate power. If using extension cord, try again without it. Restricted air passages. • Contact authorized service center. Back pressure in pump head. • Replace check valve. Replace pressure switch bleeder valve. Overheating. •...
-
Page 19: Glossary Terms
GLOSSARY OF TERMS Glossary of Terms CFM: Cubic feet per minute; a unit of measure of airflow. • PSI: Pounds per square inch; a unit of measure of air pressure. • Cut-in Pressure: Factory set low pressure point that starts the compressor to pressurize the tank to a higher pressure. •... -
Page 20: Parts
PARTS... - Page 21 PARTS LIST REF DESCRIPTION REF DESCRIPTION FILTER COVER HANDLE GRIP FILTER ELEMENT ELBOW FITTING FILTER BASE ROLL CAGE O-RING 19 X 2.8 TUBE GASKET LOCK RING CONNECTING TUBE FLARE NUT 3/8-24 HEX BOLT M6-1 X 65 PRESSURE SWITCH FENWAI FW-10 CYLINDER HEAD CHECK VALVE NUT RUBBER MAT...
-
Page 23: Warranty & Returns
WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
