Page 1: Air Compressor

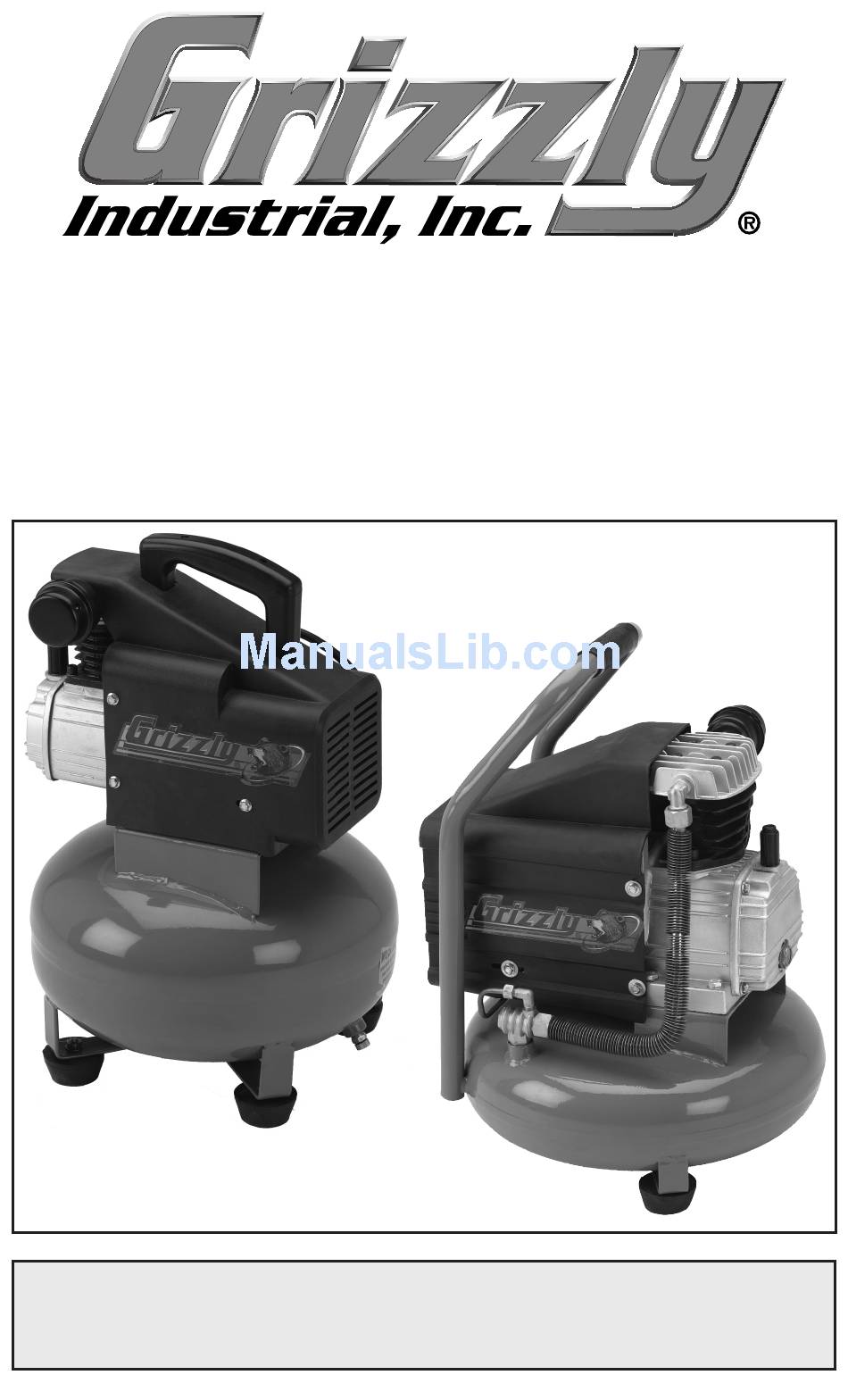

AIR COMPRESSOR MODELS G0466/G0469 INSTRUCTION MANUAL COPYRIGHT © JULY, 2005 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #EW7391 PRINTED IN CHINA... -
Page 3: Table Of Contents
SECTION 6: SERVICE ...18 Troubleshooting ...18 Changing Oil ...20 Check Valve ...20 Fixing Air Leaks ...21 Pressure Switch ...22 Service Notes ...23 G0466 Parts Breakdown ...24 G0466 Parts List ...25 G0469 Parts Breakdown ...26 G0469 Parts List ...27 WARRANTY AND RETURNS ...28... -
Page 4: Introduction
INTRODUCTION Foreword We are proud to offer the Model G0466/ G0469 Grizzly Air Compressors. These models are part of a growing Grizzly fam- ily of fine power tools. When used accord- ing to the guidelines set forth in this man- ual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s... -
Page 5: Machine Data Sheet
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901 HORSEPOWER TANK VOLUME MAXIMUM PSI CFM @40 PSI CFM @90 PSI Model G0466/G0469 Air Compressors DATA SHEET AIR COMPRESSOR MODEL G0466/G0469 MODEL G0466 ⁄... -
Page 6: Section 1: Safety
Wear protective hair covering to contain long hair and wear non-slip footwear. ANSI 6. NEVER OPERATE MACHINERY WHEN TIRED, OR UNDER THE INFLUENCE ALCOHOL. Be mentally alert at all times when running machinery. Model G0466/G0469 Air Compressors HEARING DRUGS... - Page 7 16. REMOVE ADJUSTING KEYS AND WRENCHES. Make a habit of check- ing for keys and adjusting wrenches before turning machinery ON. Model G0466/G0469 Air Compressors 17. REDUCE 18. USE PROPER AIR HOSE for the UNATTENDED 19. DO NOT FORCE MACHINERY. Work 20.
-
Page 8: Additional Safety Instructions For Air Compressors
Use this and other machinery with caution and respect. Failure to do so could result in seri- ous personal injury, damage to equip- ment or poor work results. Model G0466/G0469 Air Compressors... -
Page 9: Section 2: Circuit Requirements
Amperage Draw The motors on the air compressors will draw the following amps: G0466 Motor Draw ... 8 Amps G0469 Motor Draw ...14 Amps Circuit Requirements Only connect your machine to a cir- cuit that meets the requirements below. -
Page 10: Extension Cords
The extension cord must contain a ground wire and plug pin. • Use at least a 14 gauge cord. Use a 12 gauge cord if the cord is between 25-100 feet. • DO NOT use extension cords over 100 feet. Model G0466/G0469 Air Compressors... -
Page 11: Section 3: Set Up
2. Be sure the air filter is attached to the cylinder head as shown in Figure 2. Figure 2. Air filter attached to cylinder head. Model G0466/G0469 Air Compressors NOTICE Never run this compressor without a full oil reservoir. The oil provides lubrication to the cylinder rings, which deliver the compressed air. -
Page 12: Placement
Keep work area clear from flammable gas when using the compressor. Do not place the compressor in a paint spraying or gluing booth. The electric motor on the compressor could cause the fumes to explode. Model G0466/G0469 Air Compressors... -
Page 13: Section 4: Operations
Be certain the safety glasses you wear meet the appropriate standards of the American National Standards Institute (ANSI). Model G0466/G0469 Air Compressors Starting To start the air compressor: 1. Place the compressor on a solid, level surface with access to a properly fused power supply. -
Page 14: Line Pressure Regulation
Note: If the compressor does not turn OFF at 120 PSI, flip the ON/OFF switch to OFF before the pressure reaches the maximum PSI shown on Page 3. See Pressure Switch on Page 22 to adjust the automatic shut-off. Model G0466/G0469 Air Compressors... -
Page 15: Connecting Tools
Model G0466/G0469 Air Compressors Figure 9. Quick connect coupler. These air compressors are specifi- cally designed for air tool operation. -
Page 16: Storage
Always disconnect the air hose from tools whenever not in use or while servicing! During maintenance, a tool connected to air may operate accidentally, causing serious per- sonal injury! Model G0466/G0469 Air Compressors... -
Page 17: Section 5: Maintenance
Draining Tank on Page 16, and leave the drain valve open until the next use. Model G0466/G0469 Air Compressors If the compressor is used on a daily basis, perform the following checks each week. Weekly 1. -
Page 18: Draining Tank
Note: The safety valve is preset to release air if the tank exceeds its maxi- mum pressure. DO NOT try to adjust the safety valve pressure setting! Model G0466/G0469 Air Compressors... -
Page 19: Maintenance Notes
Maintenance Notes This page is for tracking oil changes and other maintenance proce- Date dures to ensure that they are performed at the scheduled intervals. Model G0466/G0469 Air Compressors... -
Page 20: Section 6: Service
SECTION 6: SERVICE This section is provided for your convenience—it is not a substitute for the Grizzly Service Department. If you need help troubleshooting, replacing parts, or you are unsure of how to perform the procedures in this section, then feel free to call our Technical Support at (570) 546-9663. - Page 21 OFF. Compressor knocking. Pressure relief valve stays open and motor won’t stop running. Model G0466/G0469 Air Compressors Possible Cause 1. Pulley setscrews or keys are missing or loose. 2. Motor fan is hitting the cover.
-
Page 22: Changing Oil
2. Remove the cap from the check valve (see Figure 14). Oil Fill Plug Oil Sight Glass Model G0466/G0469 Air Compressors Possible Solution 1. Repair the check valve (see Page 20). 2. Replace pressure switch. 1. Open drain valve and make certain all the water is drained out. -
Page 23: Fixing Air Leaks
5. Re-assemble the check valve. Make sure the diaphragm presses squarely against the air supply tube opening. Model G0466/G0469 Air Compressors Fixing Air Leaks Air leaks will cause low air output and increase the time the compressor must run. -
Page 24: Pressure Switch
OFF switch to OFF before the pres- sure reaches 125 PSI. 8. If the PSI level still needs adjustment, repeat Steps 1–7. 9. Replace the cover when the proper adjustments have been completed. Model G0466/G0469 Air Compressors Maximum Tank Pressure Minimum Tank Pressure... -
Page 25: Service Notes
Service Notes Model G0466/G0469 Air Compressors... -
Page 26: G0466 Parts Breakdown
�� �� �� �� � �� �� �� �� �� �� �� �� �� �� �� �� �� Model G0466/G0469 Air Compressors ���� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� ��... -
Page 27: G0466 Parts List
ROTOR P6004 BALL BEARING 6004 P0466041 STATOR P0466042 REAR MOTOR COVER PLW01M LOCK WASHER 5MM Model G0466/G0469 Air Compressors REF PART # DESCRIPTION PN06M HEX NUT M5-.8 P0466045 CENTRIFIGAL SWITCH PHTEK15M TAP SCREW M4 X 10 PLW02M LOCK WASHER 4MM... -
Page 28: G0469 Parts Breakdown
�� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� Model G0466/G0469 Air Compressors �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� ��... -
Page 29: G0469 Parts List
LOCK WASHER 3MM PS12M PHLP HD SCR M3-.5 X 6 P6204 BALL BEARING 6204 P0469039 ROTOR P6202 BALL BEARING 6202 Model G0466/G0469 Air Compressors REF PART # DESCRIPTION P0469041 STATOR 100V/60HZ P0469042 REAR MOTOR COVER P0469043 P0469044 HEX BOLT M5-.8 X 120... -
Page 30: Warranty And Returns
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. - Page 31 ____20-29 ____50-59 How long have you been a woodworker/metalworker? ____0-2 Years How many of your machines or tools are Grizzly? ____0-2 Do you think your machine represents a good value? ____Yes Would you recommend Grizzly Industrial to a friend? ____Yes Would you allow us to use your name as a reference for our customers in your area? Note: We never use names more than 3 times.
