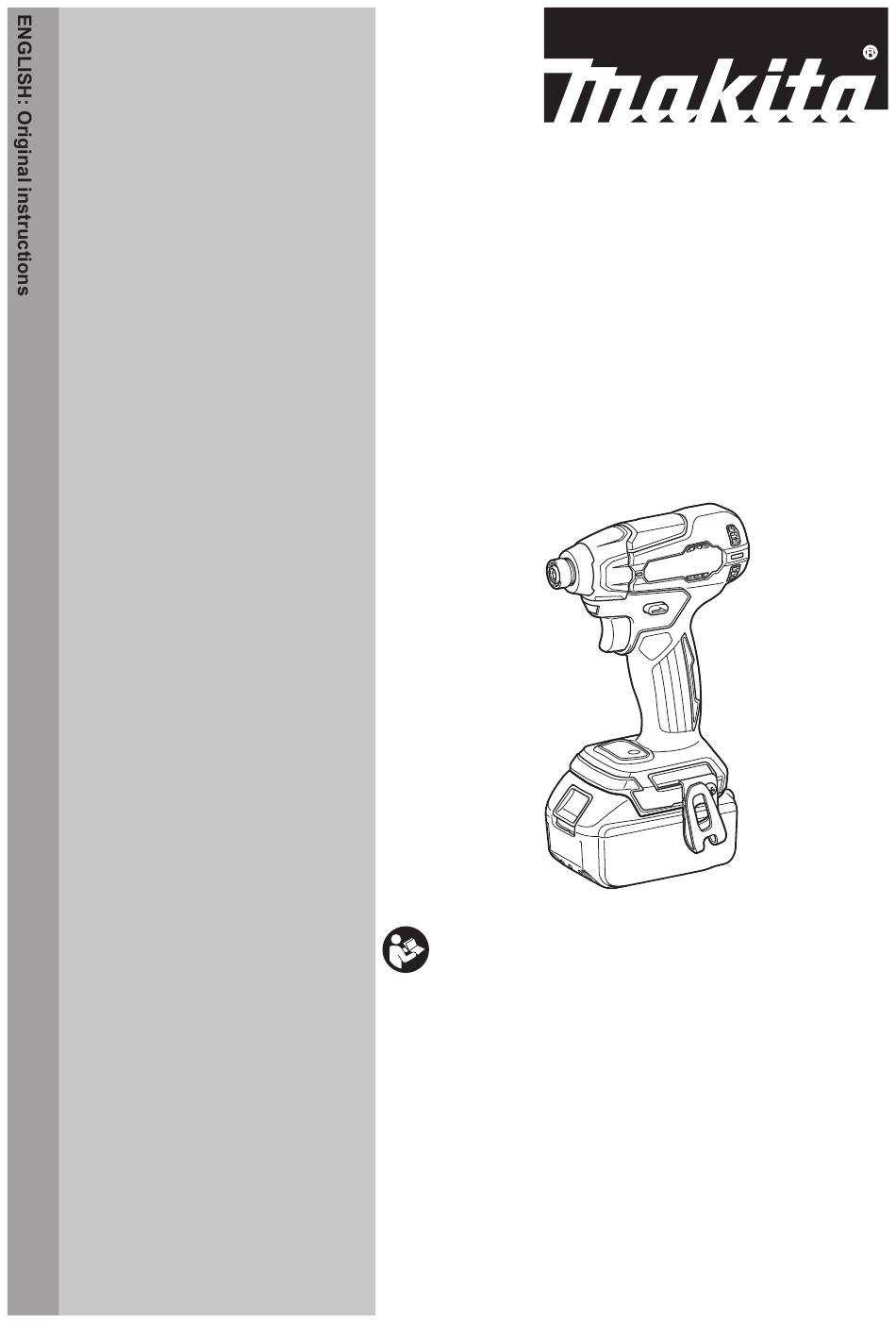

- Page 1 INSTRUCTION MANUAL Cordless Impact Driver DTD157 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DTD157 Fastening capacities Machine screw M4 - M8 Standard bolt M5 - M14 High tensile bolt M5 - M12 No load speed Hard impact mode 0 - 3,000 min Soft impact mode 0 - 1,300 min Impacts per minute Hard impact mode 0 - 4,100 min Soft impact mode... -
Page 3: Ec Declaration Of Conformity
Electrical safety Vibration Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any The vibration total value (tri-axial vector sum) deter- adapter plugs with earthed (grounded) power mined according to EN62841-2-2: tools. Unmodified plugs and matching outlets will Work mode: impact tightening of fasteners of the maxi- reduce risk of electric shock. - Page 4 Do not let familiarity gained from frequent use Keep handles and grasping surfaces dry, clean of tools allow you to become complacent and and free from oil and grease. Slippery handles and ignore tool safety principles. A careless action can grasping surfaces do not allow for safe handling and cause severe injury within a fraction of a second.
- Page 5 It may result in loss of your eyesight. CAUTION: Do not short the battery cartridge: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that (1) Do not touch the terminals with any con- have been altered, may result in the battery bursting ductive material.
-
Page 6: Functional Description
Indicating the remaining battery FUNCTIONAL capacity DESCRIPTION Only for battery cartridges with the indicator CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch off the tool before... -
Page 7: Overdischarge Protection
Electric brake Reversing switch action This tool is equipped with an electric brake. If the tool consistently fails to quickly stop after the switch trigger is released, have the tool serviced at a Makita service center. Lighting up the front lamp CAUTION: Do not look in the light or see the source of light directly. - Page 8 This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for coun- terclockwise rotation. When the reversing switch lever is in the neutral posi- tion, the switch trigger cannot be pulled.
-
Page 9: Installing Hook
Procedure 2 ASSEMBLY In addition to Procedure 1, insert the bit-piece into the sleeve with its pointed end facing in. CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. Installing or removing driver bit/ socket bit ► 1 . -
Page 10: Operation
High tensile bolt OPERATION N•m (kgf•cm) (1632) (1428) (1224) (1020) (816) (612) The proper fastening torque may differ depending upon the kind or size of the screw/bolt, the material of the (408) workpiece to be fastened, etc. The relation between fas- tening torque and fastening time is shown in the figures. (204) Standard bolt 1. Fastening time (second) 2. Fastening torque N•m (kgf•cm) 3. -
Page 11: Maintenance
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center. - Page 12 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885857-224 www.makita.com 20201019...
