Summary of Contents for d&b audiotechnik Z5394
- Page 1 Z5394 Rigging manual 1.2 en...
- Page 2 General information Z5394 Rigging manual Version: 1.2 en, 03/2021, D2719.EN .01 Copyright © 2021 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference.
-
Page 3: Table Of Contents
2.4 Hoisting and securing the array (secondary safety)....8 Care and maintenance............9 3.1 Transport / Storing..............9 3.2 Visual and functional inspection..........9 Manufacturer's declaration........... 10 4.1 EU conformity (CE symbol)............10 4.2 Disposal..................10 d&b Z5394 Rigging manual 1.2 en... -
Page 4: Z5394 Y Flying Adapter

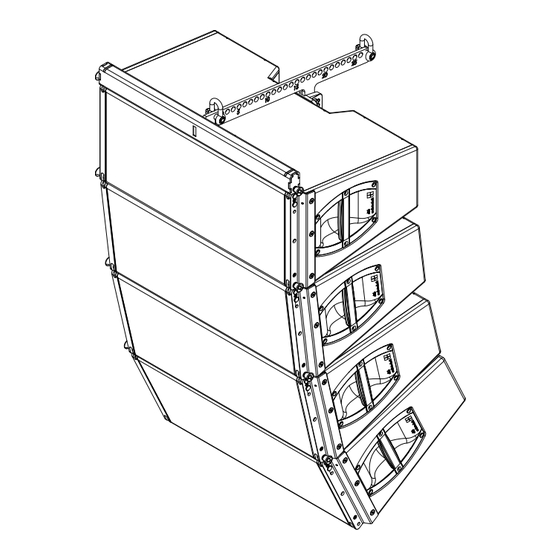

Z5394 Y Flying adapter Z5394 Y Flying adapter 1.1 Safety 1.1.1 Intended use The Z5394 Y Flying adapter must only be used in conjunction with the d&b Y-Series Y8 and Y12 loudspeakers as described in this manual. 1.1.2 General safety ▪... -
Page 5: Assembly
▪ Check that the hoists are exactly in the specified position. ▪ Ensure the chains are not twisted. ▪ Prepare the cables and link cables according to the number of amplifier channels and cabinets used. d&b Z5394 Rigging manual 1.2 en... -
Page 6: Order Of Assembly
1. Attach the Flying adapter on top of the cabinet until the Front links of the cabinet fit into the slots at the front of the adapter. 2. Insert and lock the Locking pins of the cabinet's Front links on both sides. d&b Z5394 Rigging manual 1.2 en... - Page 7 2. Lift the assembly to a suitable working height. 3. Attach the prepared cabinet to the corresponding slots on the front of the upper cabinet. 4. Insert and lock the Locking pins of the cabinet's Front links on both sides. d&b Z5394 Rigging manual 1.2 en...
-
Page 8: Hoisting And Securing The Array (Secondary Safety)
The chain hoist motors must raise the system slowly and evenly so that it does not swing or move from side to side during hoisting. When the array is in its final operating position the secondary safety must be applied. d&b Z5394 Rigging manual 1.2 en... -
Page 9: Care And Maintenance
® ▪ Regularly lubricate the Locking pins using WD-40 or a similar product. Z5394 Y Flying adapter Visual inspection regarding deformation and damage (e.g. cracks and corrosion) including all drilled holes of the component. d&b Z5394 Rigging manual 1.2 en... -
Page 10: Manufacturer's Declaration
When out of use the rigging components must be disposed of in accordance with the national environmental regulations. Ensure that damaged rigging components are disposed of in a way that they cannot be used again. d&b Z5394 Rigging manual 1.2 en... - Page 11 www.dbaudio.com...
