d&b audiotechnik Z Series Mounting Instructions

Hide thumbs Also See for Z Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Z
Z5147
Mounting instructions 2.3 en

Advertisement

Table of Contents
loading

Related Manuals for d&b audiotechnik Z Series

Summary of Contents for d&b audiotechnik Z Series

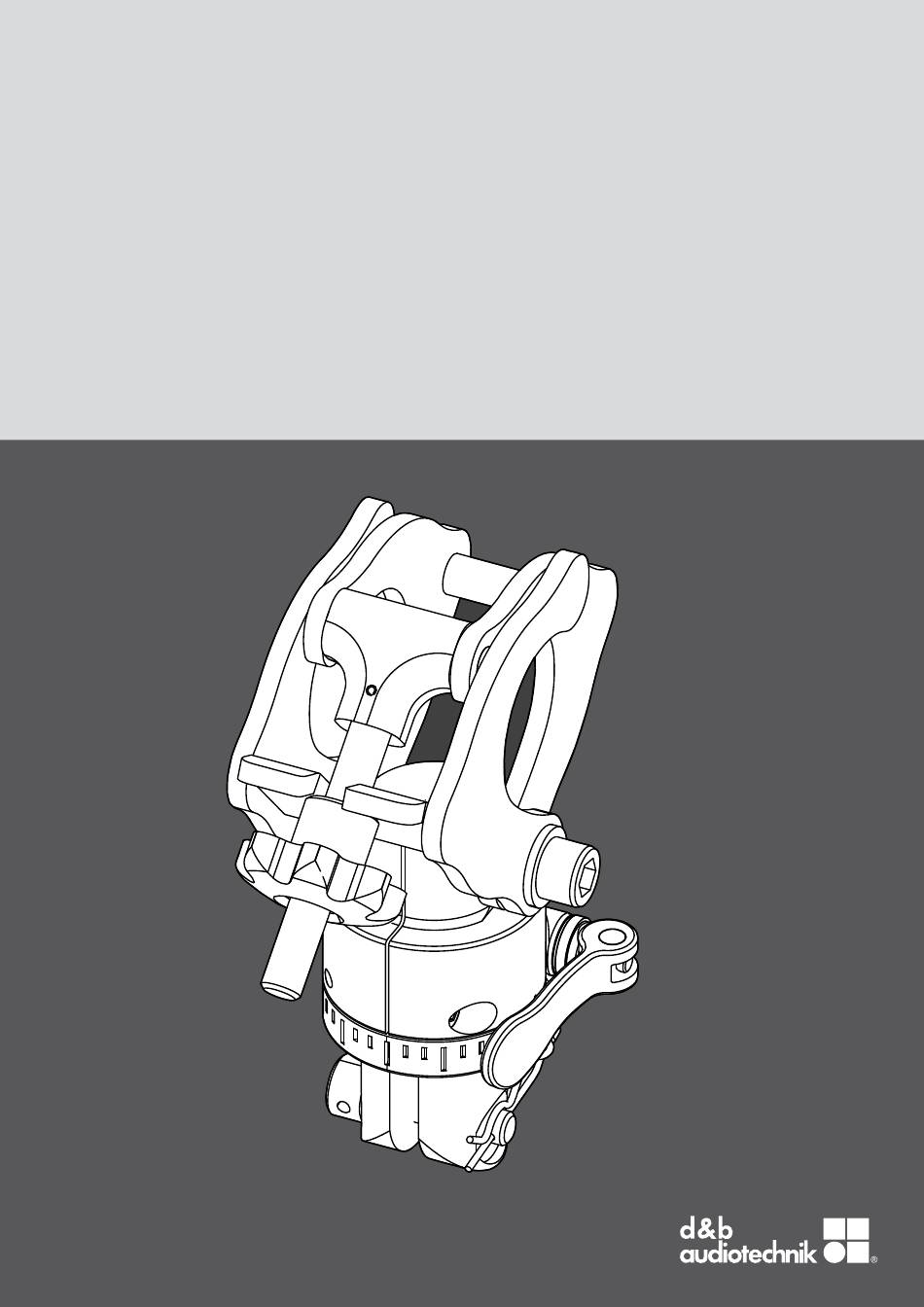

  • Page 1 Z5147 Mounting instructions 2.3 en...
  • Page 2 General information Z5147 Mounting instructions Version: 2.3 en, 04/2020, D2970.EN .02 Copyright © 2020 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this document to the new owner.

  • Page 3: Table Of Contents

    Contents Z5147 Rota clamp............... 4 1.1 Scope of supply and weight............4 1.2 Safety precautions..............4 1.3 Intended use................5 1.4 Assembly..................5 1.5 Installation................... 6 1.6 Operation / adjustments............7 1.7 Care and maintenance............... 8 Manufacturer's declaration........... 10 2.1 EU conformity (CE symbol)............10 2.2 Disposal..................

  • Page 4: Z5147 Rota Clamp

    Z5147 Rota clamp 1.1 Scope of supply and weight Pos. Qty. d&b Code Description Z5147 Rota clamp (pre-assembled) including: [1a/b] 1/1 Ring cotter and fixing bolt Handwheel Eccentric lever Connecting bolt with self- securing nut M10 Scope of supply and built-in dimensions D2970.EN .02 Z5147 Mounting instructions Weight...

  • Page 5: Intended Use

    1.3 Intended use The Rota clamp must only be used to suspend d&b loudspeaker cabinets from a single suspension point in connection with applicable d&b rigging accessories. The Rota clamp allows the load to be attached to overhead bars or truss with a tube diameter of up to 70 mm (2.75”).

  • Page 6: Installation

    1.5 Installation When the Rota clamp is fitted to the assembly as described in the previous section, the assembled unit is now ready to install. Proceed as follows: 1. First release the handwheel [2] of the clamping lever until it reaches its end-position.

  • Page 7: Operation / Adjustments

    1.6 Operation / adjustments Positional adjustment (horizontal position) NOTICE! Potential risk of damage to material Only carry out positional and directional adjustments one at a time. Never try to make more than one adjustment without having all others firmly locked. If an adjustment of the position on the bar is necessary, proceed as follows: 1.

  • Page 8: Care And Maintenance

    1.7 Care and maintenance Cleaning Regularly clean and lubricate the Rota clamp with WD-40® or a similar product. Inspections To eliminate the potential risk of accident because of malfunction of a component, it is essential to regularly inspect all system components according to the appropriate regulations for lifting devices.
  • Page 9 Adjusting the lever To ensure proper clamping and even gap dimensions [S] to both sides of the clamping halves of the rotatable unit [4] while the lever [3] is in its hinged position (90°), the clamping screw [3a] needs to be regularly adjusted as follows: Tools required: ▪...

  • Page 10: Manufacturer's Declaration

    Manufacturer's declaration 2.1 EU conformity (CE symbol) This declaration applies to: d&b Z5147 Rota clamp manufactured by d&b audiotechnik GmbH & Co. KG. All product variants are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
  • Page 11 www.dbaudio.com...

This manual is also suitable for:

Z5147
