Z5401 Wall mount S
Mounting instructions (1.2 EN)

Advertisement

Table of Contents
loading

Related Manuals for d&b audiotechnik Z5401 Wall mount S

Summary of Contents for d&b audiotechnik Z5401 Wall mount S

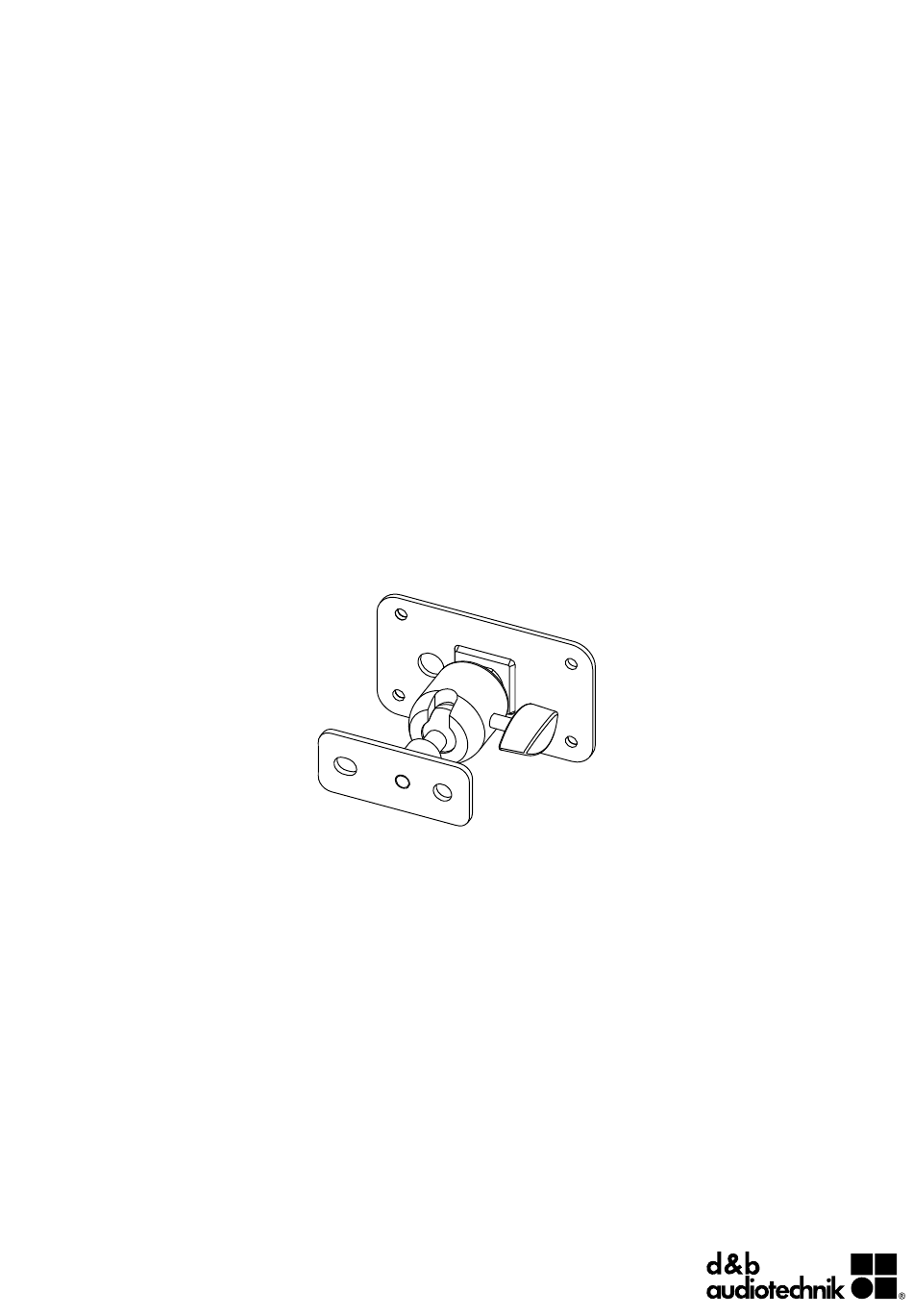

  • Page 1 Z5401 Wall mount S Mounting instructions (1.2 EN)
  • Page 2 General information Z5401 Wall mount S Mounting instructions Version: 1.2 EN, 03/2013, D2956.EN .01 Copyright © 2013 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference.

  • Page 3: Table Of Contents

    1.2. Safety precautions............4 1.3. Intended use..............4 1.4. Mounting options and angle settings......5 1.5. Assembly..............5 Fixing template..............7 Built-in dimensions............8 Declarations..............10 4.1. Manufacturer's declaration........10 4.2. Disposal..............10 d&b Z5401 Wall mount S, Mounting instructions (1.2 EN)

  • Page 4: Z5401 Wall Mount S

    3 kg (6.6 lb) (according to BGV C1) which implies the weight of one 4S or 5S cabinet. 1.3. Intended use The d&b Z5401 Wall mount S must only be used in conjunction with the d&b xS-Series loudspeakers 4S and 5S as described in these mounting instructions.

  • Page 5: Mounting Options And Angle Settings

    To mount the 4S and 5S cabinets to walls, ceilings or other surfaces, use the Mounting plate M10. A corresponding fixing template is supplied with these mounting instructions. Refer to Þ Chapter 2. "Fixing template" on page 7. d&b Z5401 Wall mount S, Mounting instructions (1.2 EN)
  • Page 6 3. Tighten the M10 socket using the spanner (#17). 4. Set the desired angle of the cabinet and adjust the set screw [S]. 5. Finally tighten the fixing screw [F]. d&b Z5401 Wall mount S, Mounting instructions (1.2 EN)

  • Page 7: Fixing Template

    2. Fixing template Fig. 2: Z5401 Wall mount S, fixing template, shown with center ( ) of the 4S/5S cabinets. Note: Mind your printer settings and scaling. d&b Z5401 Wall mount S, Mounting instructions (1.2 EN)

  • Page 8: Built-In Dimensions

    3. Built-in dimensions Fig. 3: Z5401 Wall mount S, 4S wall mounted, top setup, built-in dimensions in mm [inch] Fig. 4: Z5401 Wall mount S, 4S wall mounted, bottom setup, built-in dimensions in mm [inch] Fig. 5: Z5401 Wall mount S, 4S ceiling mounted, built-in dimensions in mm [inch]...
  • Page 9 Fig. 6: Z5401 Wall mount S, 5S wall mounted, vertical setup, built-in dimensions in mm [inch] Fig. 7: Z5401 Wall mount S, 5S wall mounted, horizontal setup, built-in dimensions in mm [inch] d&b Z5401 Wall mount S, Mounting instructions (1.2 EN)

  • Page 10: Declarations

    When out of use the rigging components must be disposed of in accordance with the national environmental regulations. Ensure that damaged rigging components are disposed of in a way that they cannot be used again. d&b Z5401 Wall mount S, Mounting instructions (1.2 EN)
  • Page 11 www.dbaudio.com...
