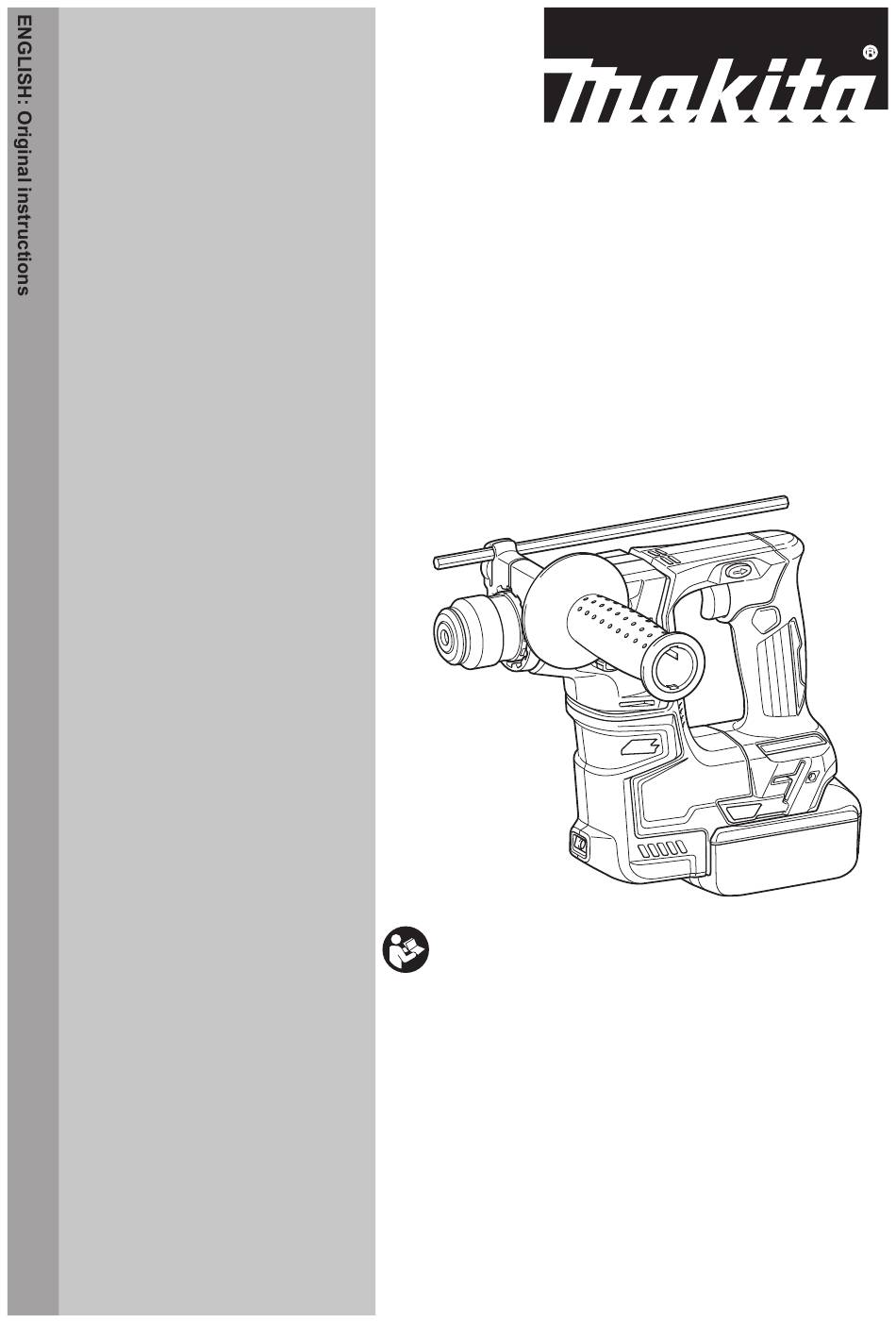

- Page 1 INSTRUCTION MANUAL Cordless Rotary Hammer DHR171 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DHR171 Drilling capacities Concrete 17 mm Steel 10 mm Wood 13 mm No load speed 0 - 680 min Blows per minute 0 - 4,800 min Overall length 273 mm Rated voltage D.C. 18 V Standard battery cartridge BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 / BL1840B / BL1850 / BL1850B / BL1860B Net weight... - Page 3 Work area safety Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away Keep work area clean and well lit. Cluttered or from moving parts. Loose clothes, jewellery or dark areas invite accidents. long hair can be caught in moving parts. Do not operate power tools in explosive atmo- If devices are provided for the connection of spheres, such as in the presence of flammable...
- Page 4 Keep cutting tools sharp and clean. Properly CORDLESS ROTARY HAMMER maintained cutting tools with sharp cutting edges SAFETY WARNINGS are less likely to bind and are easier to control. Use the power tool, accessories and tool bits Wear ear protectors. Exposure to noise can etc.
-
Page 5: Functional Description
If you can see the red indicator on the causing fires, personal injury and damage. It will upper side of the button, it is not locked completely. also void the Makita warranty for the Makita tool and charger. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. -
Page 6: Overheat Protection
Overheat protection Indicating the remaining battery capacity When the tool or battery is overheated, the tool stops automatically and the lamp blinks. In this case, let the tool and battery cool before turning the tool on again. Only for battery cartridges with the indicator Overdischarge protection When the battery capacity is not enough, the tool stops automatically. - Page 7 Rotation only Reversing switch action For drilling in wood, metal or plastic materials, rotate the action mode changing knob to the symbol. Use a twist drill bit or wood drill bit. ► 1 . Reversing switch lever CAUTION: Always check the direction of ► 1 . Action mode changing knob rotation before operation.
-
Page 8: Depth Gauge
Installing or removing drill bit Depth gauge Clean the shank end of the drill bit and apply grease The depth gauge is convenient for drilling holes of before installing the drill bit. uniform depth. Loosen the side grip and insert the depth gauge into the hole on the side grip. Adjust the depth gauge to the desired depth and tighten the side grip firmly. - Page 9 NOTE: The standard side grip cannot be used with the dust cup set being installed on the tool. When the dust cup set is installed on the tool, remove the grip from the standard side grip, and then attach it to the optional grip base set.
-
Page 10: Operation
To remove the dust cup set, hold the root of dust cup and pull it out. ► 1 . Dust cup ► 1 . Groove 2. Hook 3. Screw NOTE: If the cap comes off from the dust cup, attach The hook is convenient for temporarily hanging the tool. it with its printed side facing up so that groove on the This can be installed on either side of the tool. -
Page 11: Maintenance
When installing it, refer to the section “Installing or removing drill bit”. CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. - Page 12 If you need any assistance for more details regarding • Dust cup set these accessories, ask your local Makita Service Center. • Grip base set • Carbide-tipped drill bits (SDS-Plus carbide-tipped • Safety goggles bits) • Hook • Chuck adapter • Makita genuine battery and charger • Keyless drill chuck • Plastic carrying case • Bit grease NOTE: Some items in the list may be included in the •...
