Grizzly T28932 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T28932 Welding Table has a load capacity of
500 lbs. It provides a stable surface on which to
perform welding operations. Standard
are spaced every 2" for clamp systems or custom
jigs.
Inventory
Description
A. Work Table w/Frame .................................. 1
B. Support Legs .............................................. 4
C. Short Crossmembers ................................. 2
D. Long Crossmembers .................................. 2
E. Adjustable Feet M8-1.25 x 38 .................... 4
F.
Hex Bolts M8-1.25 x 16 .............................. 8
G. Hex Bolts M6-1 x 16 ................................... 8
H. Hex Nuts M8-1.25 ..................................... 12
I.
Hex Nuts M6-1 ........................................... 8
J.
Lock Washers 6mm.................................... 8
K. Flat Washers 6mm ..................................... 8
A
B

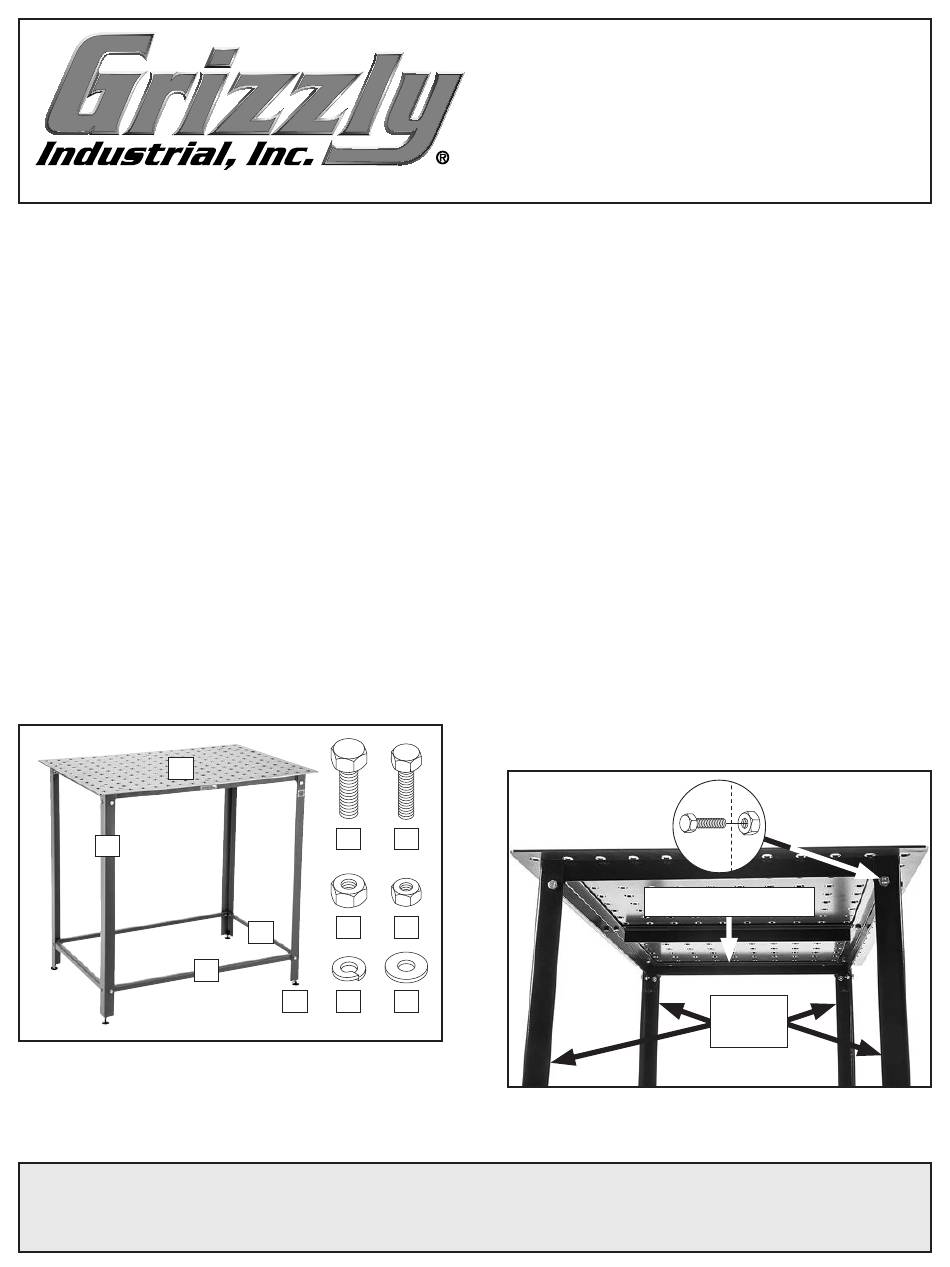

Figure 1. T28932 inventory.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄
5
8
F
H
C
D
E J
COPYRIGHT © MARCH, 2020 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 12/18) #CS20333 PRINTED IN CHINA
WELDING TABLE
Specifications
Weight Capacity ..................................... 500 lbs.
Work Table Size ....................................24" x 36"
" holes Work Table Thickness ........................... 9 Gauge
Work Table Working Height ............................ 34"
Assembly
The T28932 Welding Table requires assembly
Qty before use.
Items Needed
Wrench or Socket 14mm ................................... 2
Wrench or Socket 10mm ................................... 2
To assemble welding table:
1.
Use a non-flammable degreaser to remove
cosmoline from work table.
2.
Attach four support legs to work table frame
and secure with (8) M8-1.25 x 16 hex bolts
and (8) M8-1.25 hex nuts (see Figure 2).
G
I
K
Figure 2. Support legs attached to work table
MODEL T28932
36" X 24"
INSTRUCTIONS
x 8
Work Table Frame
Support
Legs
frame.
Qty
V1.03.20
