Grizzly T10131 Instruction Manual

the Model t10131 Bandsaw extension table
provides additional support for longer workpieces
and installs onto the grizzly bandsaw Models
g0531B, g0566B, and g0636XB.
Recommended Tools
hex Wrench 6mm ........................................ 1 eA
Wrench/Socket 13mm ................................. 1 eA
precision Straightedge ..................................... 1
Assistant for lifting ............................................ 1
degreaser (figure 6) ........................ As needed
Shop rag .......................................................... 1

Specifications

Size ......................................... 20
Weight .......................................................63 lbs.
Inventory
(figure 1)
A. extension table .......................................... 1
B. Support ....................................................... 1
C. hardware Bag (not shown) ........................ 1
—Cap Screws M8-1.25 x 40 ...................... 4
—hex Bolts M8-1.25 x 12........................... 4
—Flat Washers 8mm ................................. 8
—lock Washers 8mm ................................ 4

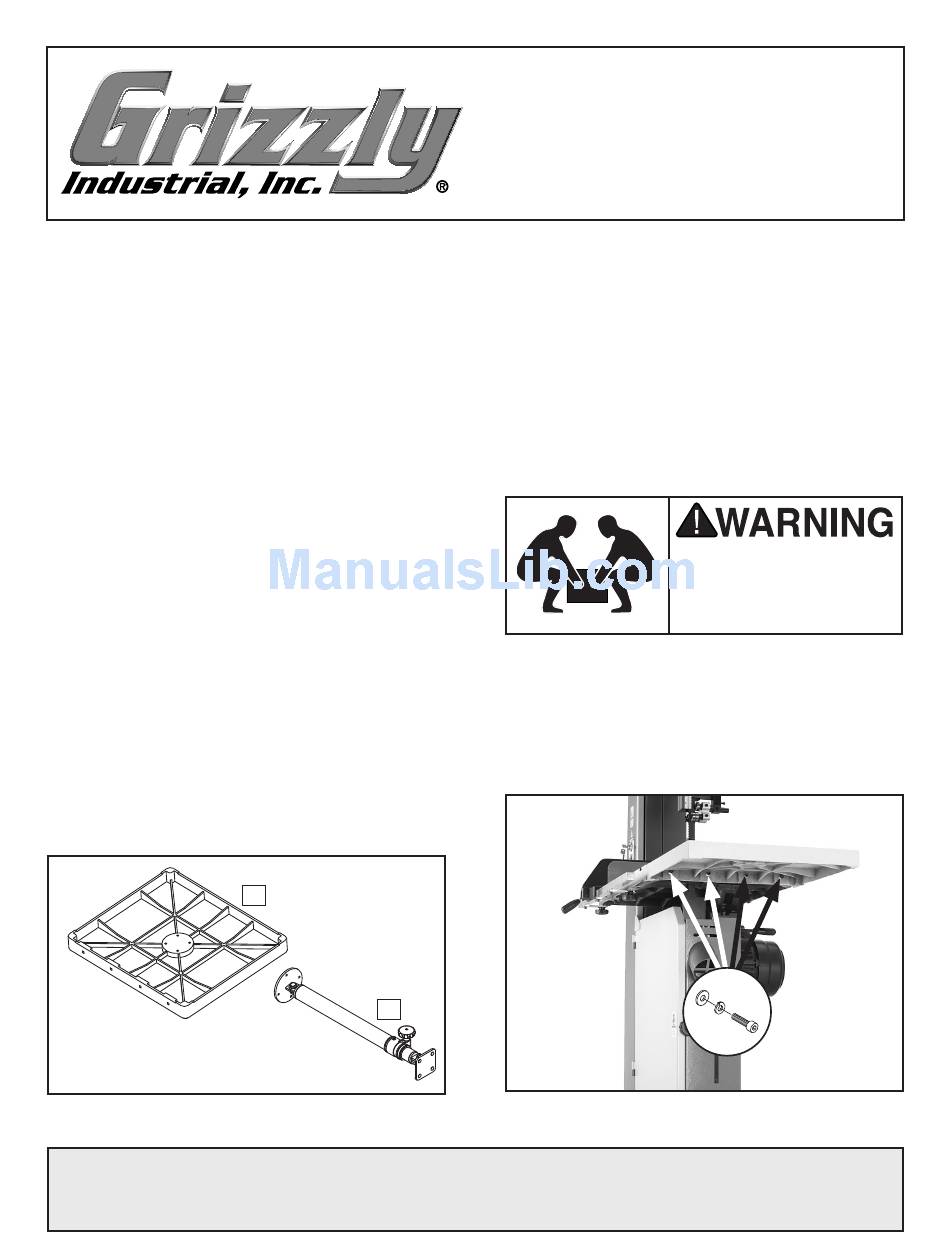

figure 1. Model t10131 inventory.
WARNINg: NO pORTION Of ThIS MANUAL MAy BE REpRODUCED IN ANy ShApE
OR fORM WIThOUT ThE WRITTEN AppROvAL Of gRIzzLy INDUSTRIAL, INC.
⁄ " x 18 ⁄ " x 2"
3 1
4 8
A
B
Copyright © AUgUSt, 2008 By grizzly indUStriAl, inC.
#Bl10994 printed in tAiWAn
MODEL T10131
BANDSAW EXTENSION
TABLE
INSTRUCTIONS
Assembly
1.
remove the protective waxy oil coating from
the top of the extension table with a solvent
cleaner or degreaser, such as shown in
Accessories on page 2. Avoid chlorine-
based solvents, such as acetone or brake
parts cleaner that may damage painted
surfaces. Always follow the manufacturer's
instructions when using any type of cleaning
product.
The extension wing is
heavy and can be dif-
ficult for one person to
install. get lifting help!
2. have another person hold the extension wing
in place and mount it to the main bandsaw
table with the four M8-1.25 x 40 cap screws,
lock washers and flat washers, as shown in
figure 2.
figure 2. extension table installed.
4x
