G 1xxx/G 2xxx

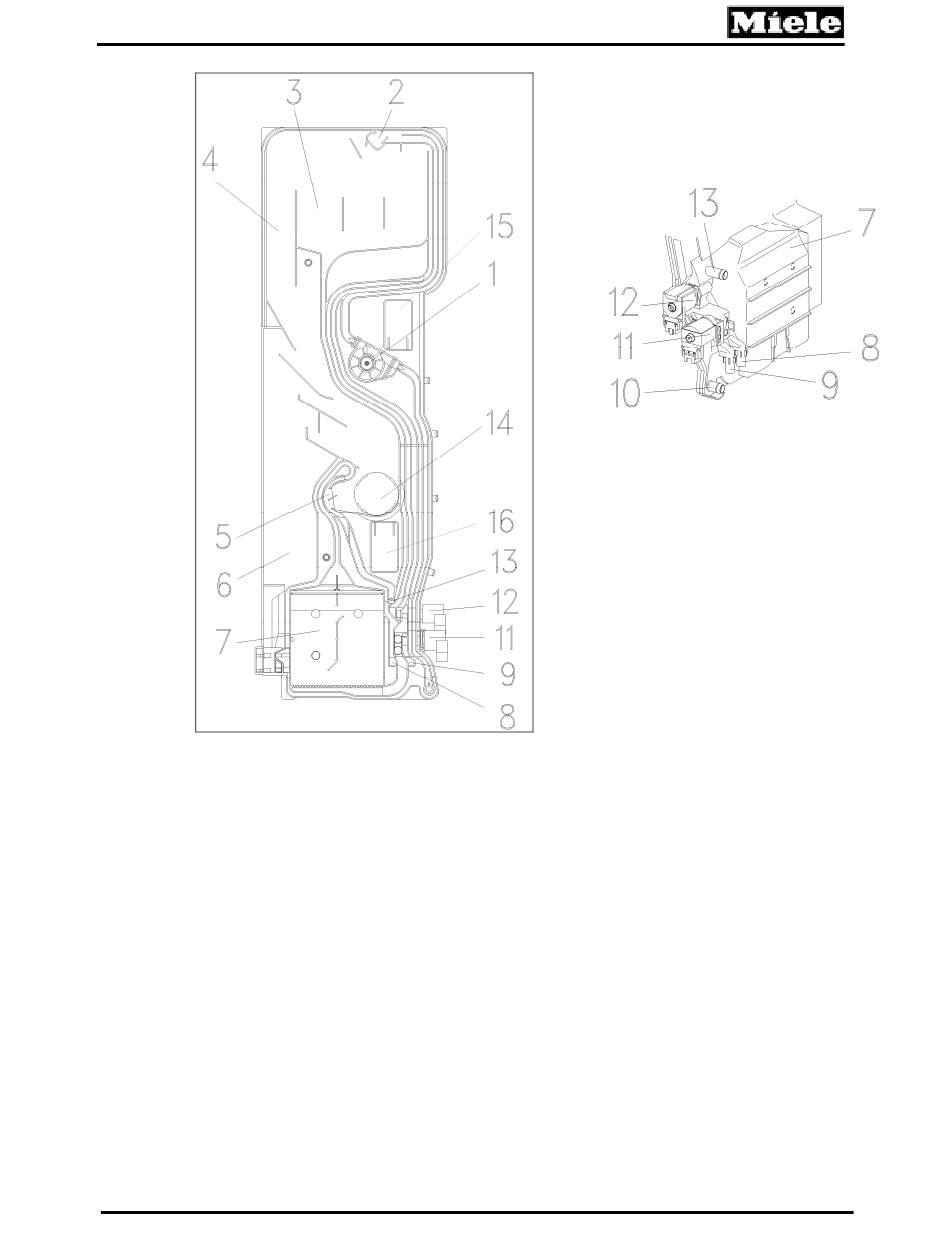

Figure 050-3: Water Diverter

1 Flow meter B3/4
2 Ball valve
3
Softener reactivation water reservoir
4 Overflow
5 Non-return device
6 Vent
7 Ion exchanger
8 Water outlet to salt container
Detail View of Valves,
Intakes and Outlets
9 Water intake from salt container
10 Connection to inlet valve
11
Reactivation valve
12 EGS (water softener) valve
13 Water outlet to sump
14 Cabinet ventilation
15 Middle spray arm sensor
16 Bottom spray arm sensor
81
