G 1262, G 2170, G X18X (Optima Slimline, Advanta, Diamante, Inspira With Incognito); Figure D-24: G 1262, G 2170, G X18X Component Layout - Miele G 1 Series Technical Information

Technical Information
3.5 G 1262, G 2170, G x18x (Optima Slimline, Advanta, Diamante,
Inspira with Incognito)

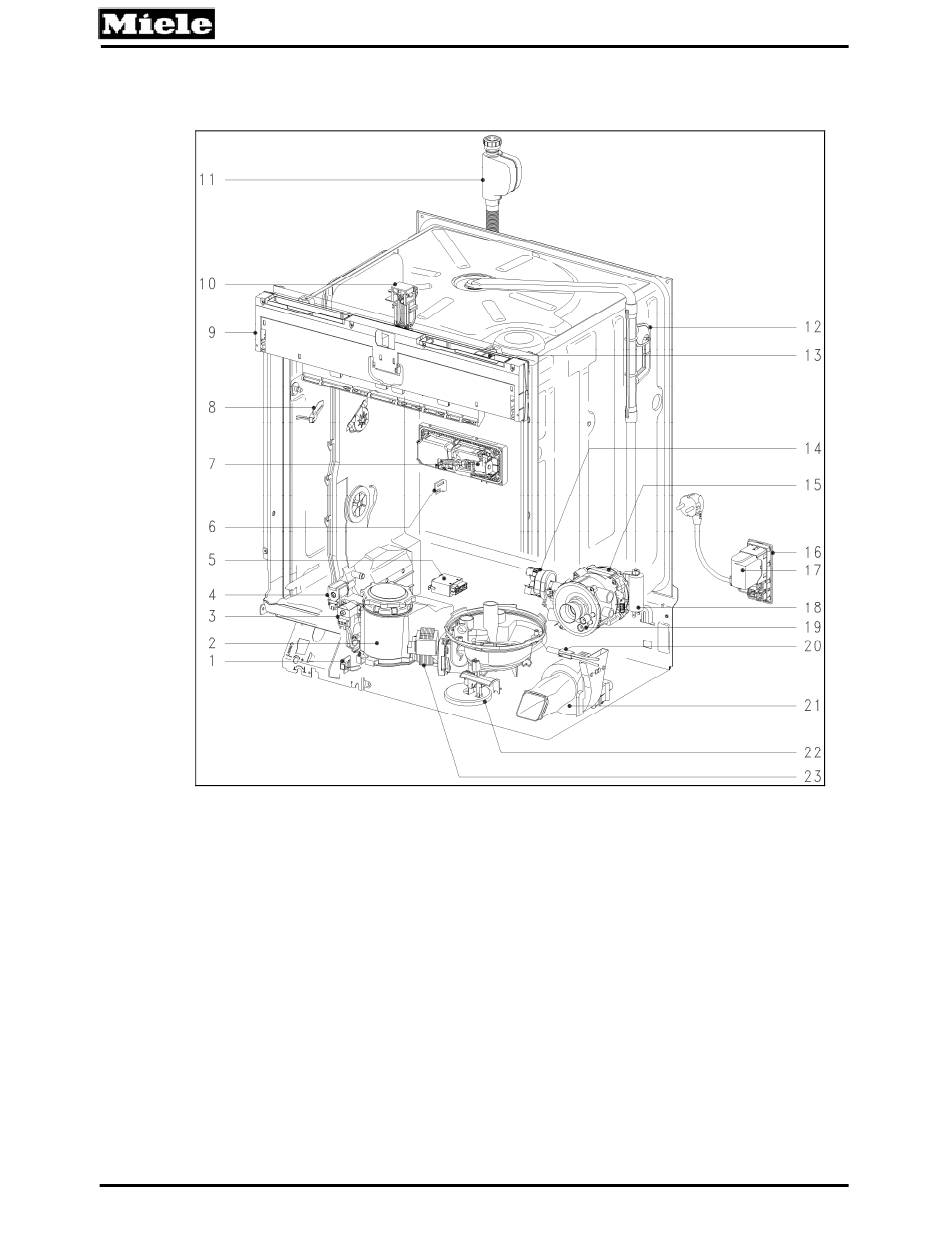

Figure D-24: G 1262, G 2170, G x18x Component Layout

1 Salt float switch, B8/2 (not G 1262)
2 Salt container (not G 1262)
3 Reactivation solenoid, Y38
4 Wash-water hardness solenoid, Y5
5
Heater relay, K1/1
6 Rinse aid float switch, B8/1
7 Combination dispenser solenoid, Y50
8 Flow rate sensor, B3/4
9 Electronic, 1N1
10 Door contact switch, S24
11 Water intake solenoid, Y2
12 Turbidity sensor, B3/10
13 Main switch, S2
14 Heater pressure switch, B1/13
15 Circulation pump (MPEH), M6
16 Terminal block, X3/1
17
Interference suppression, Z1
18 Circulation pump capacitor, C6
19 Heater, R1
20 Temperature sensor (NTC), R30
21 Fan, M2
22 Overflow float switch, B8/3
23 Drain pump, M8
