Technical Information
2.2

Fully Integrated Models, Salt Container in Sump

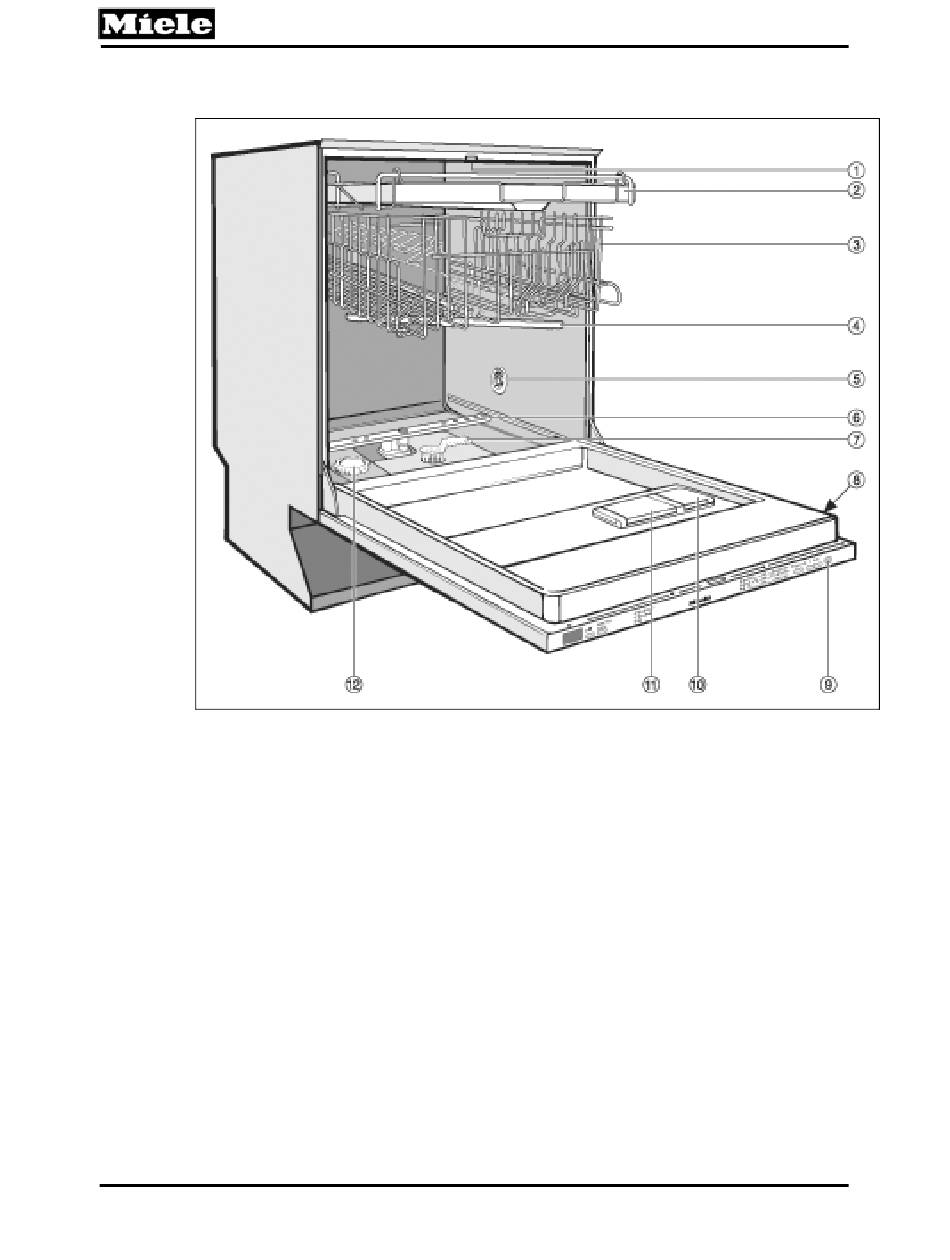

Figure D-16: Fully Integrated Model with Salt Container in Sump

1 Upper spray arm (not visible)
2 Cutlery tray (model-dependent)
3 Upper basket
4 Middle spray arm
5 Air inlet for drying (model-dependent)
6 Lower spray arm
7 Filter combination
8 Data tag
9 Optical interface
10 Rinse aid reservoir
11 Dual-compartment detergent dispenser
12 Salt container
28
G 1xxx/G 2xxx
