vEdge 100wm Router

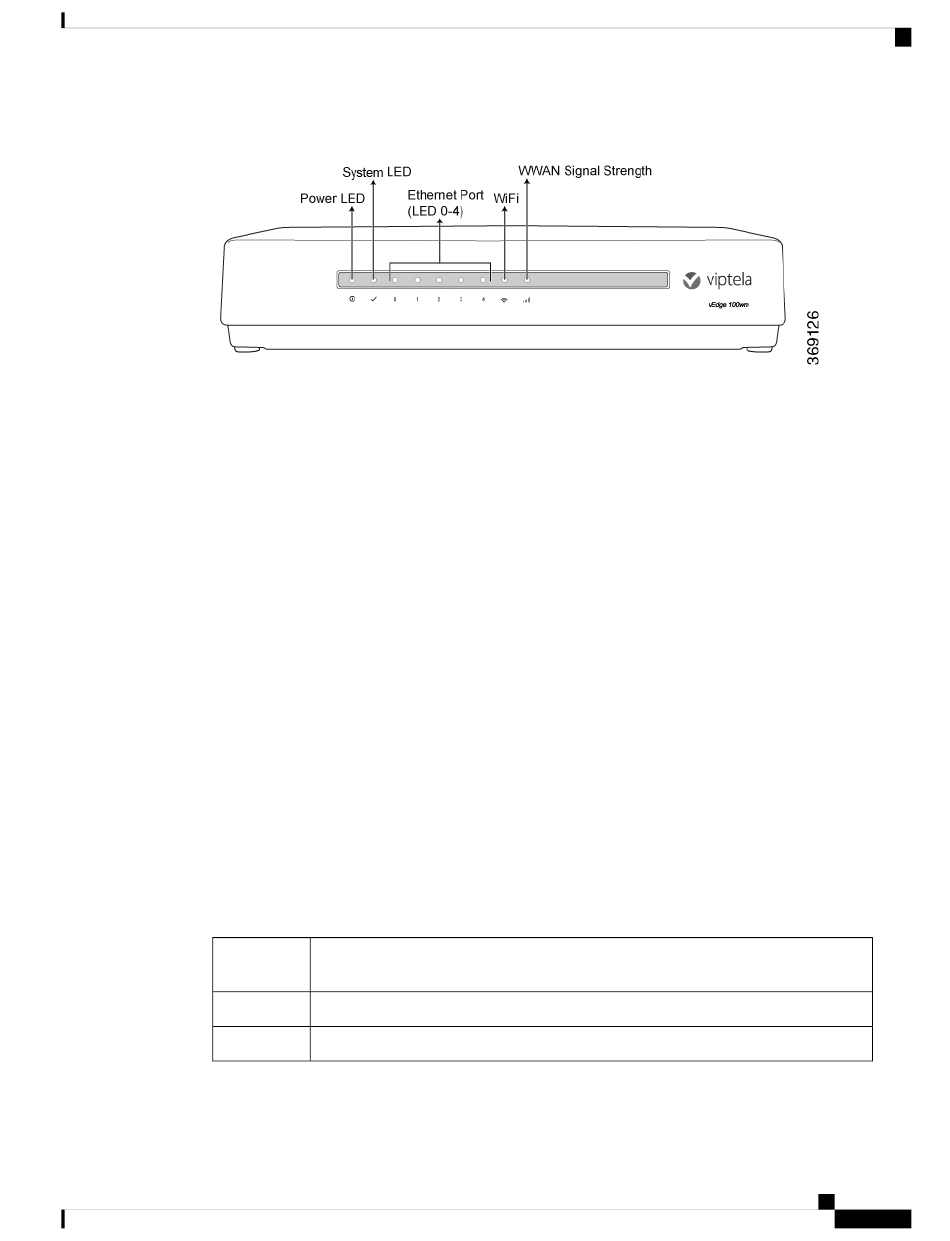

Figure 1: Chassis Status LEDs in a vEdge 100wm Router (UPDATE)
Rear Panel
The rear panel of the vEdge 100wm router has two cellular antenna terminals, a GPS antenna input, a
Kensington security lock slot, and a Reset button. See Chassis Views for the location of these components.
Cellular Antenna Terminals
The rear panel of the vEdge 100wm router has two SMA antenna terminals for attaching the two multiband
swivel-mount dipole antennas that ship with the router. For antenna specifications, see
Multiband Cellular Antenna Specifications .
GPS Input
The GPS antenna input on the rear panel of the vEdge 100wm router allows you to connect an external GPS
antenna that has an SMA connector. If you connect a GPS antenna to the router, it can automatically identify
the router's geographical location.
Kensington Security Lock Slot
The rear panel of the vEdge 100wm router has a small metal-enforced hole for attaching a Kensington lock
to secure the router.
Reset Button
The Reset button on the rear panel of the vEdge 100wm router is recessed, to avoid accidentally pressing it
while the router is operational. To press the Reset button, use a sharp narrow tool. Table 2 describes the effects
of pressing the Reset button.
Table 27:
Press
Duration
Short press
Long press
Behavior
Press for 2 seconds to reset and reboot the router.
Press for 10 seconds to reset the router and reboot it with factory default configuration.
Front and Rear Panel Components
