Assembling and Mounting a Cisco TelePresence System 1100
Attaching the Mounting Bracket to a Wall With Steel Studs
Step 9
Snap off the plastic straps that protrude from the wall until the anchor assembly is flush with the wall.
Push the straps from side to side to snap them off.

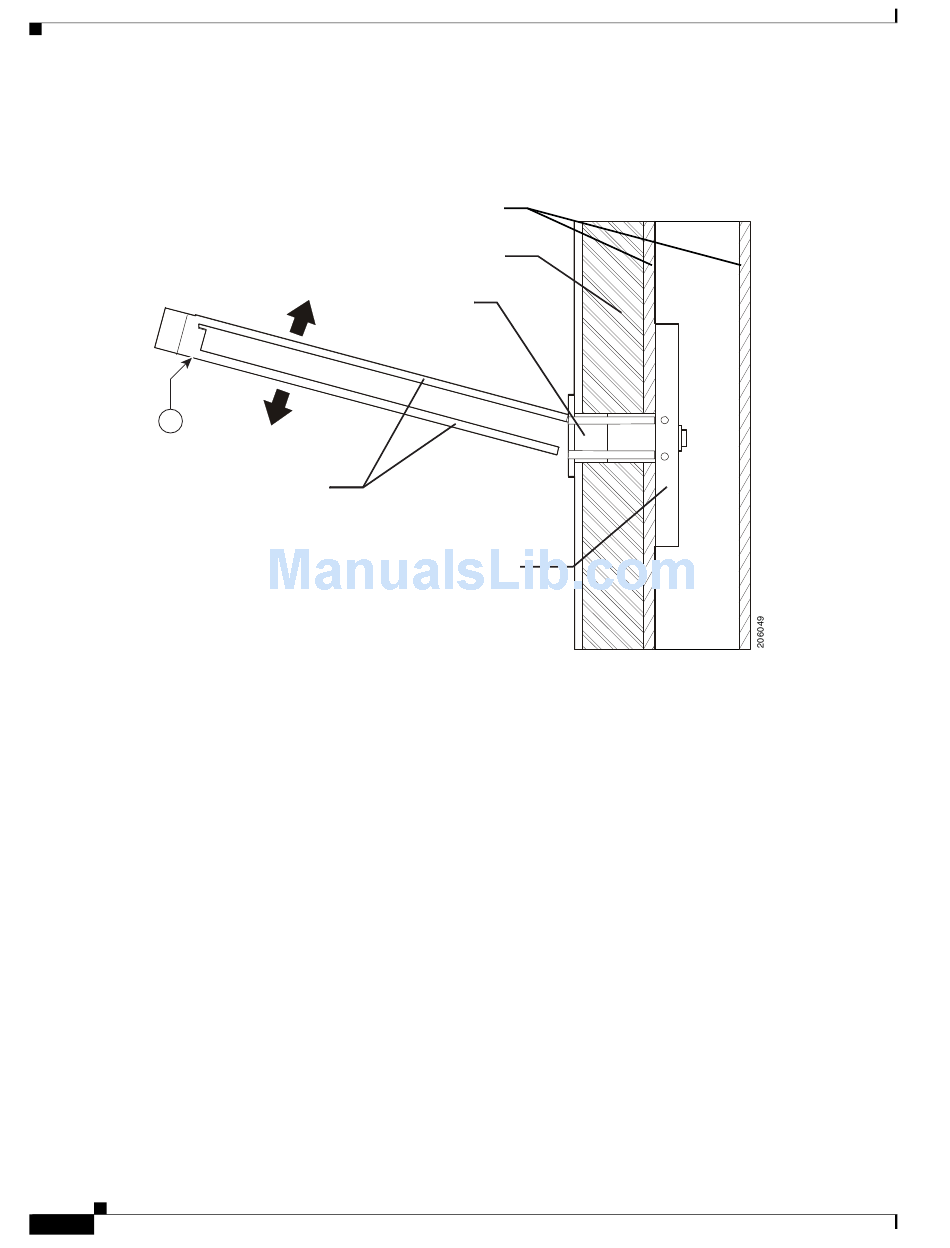

Figure 3-12
Removing the Plastic Straps
Metal Stud
Drywall
Plastic Cap
1
Plastic Straps
Anchor Metal Channel
(SIDE VIEW)
Cisco TelePresence System 1100 Assembly, First-Time Setup, and Field Replaceable Unit Guide
3-18
OL-19695-01
