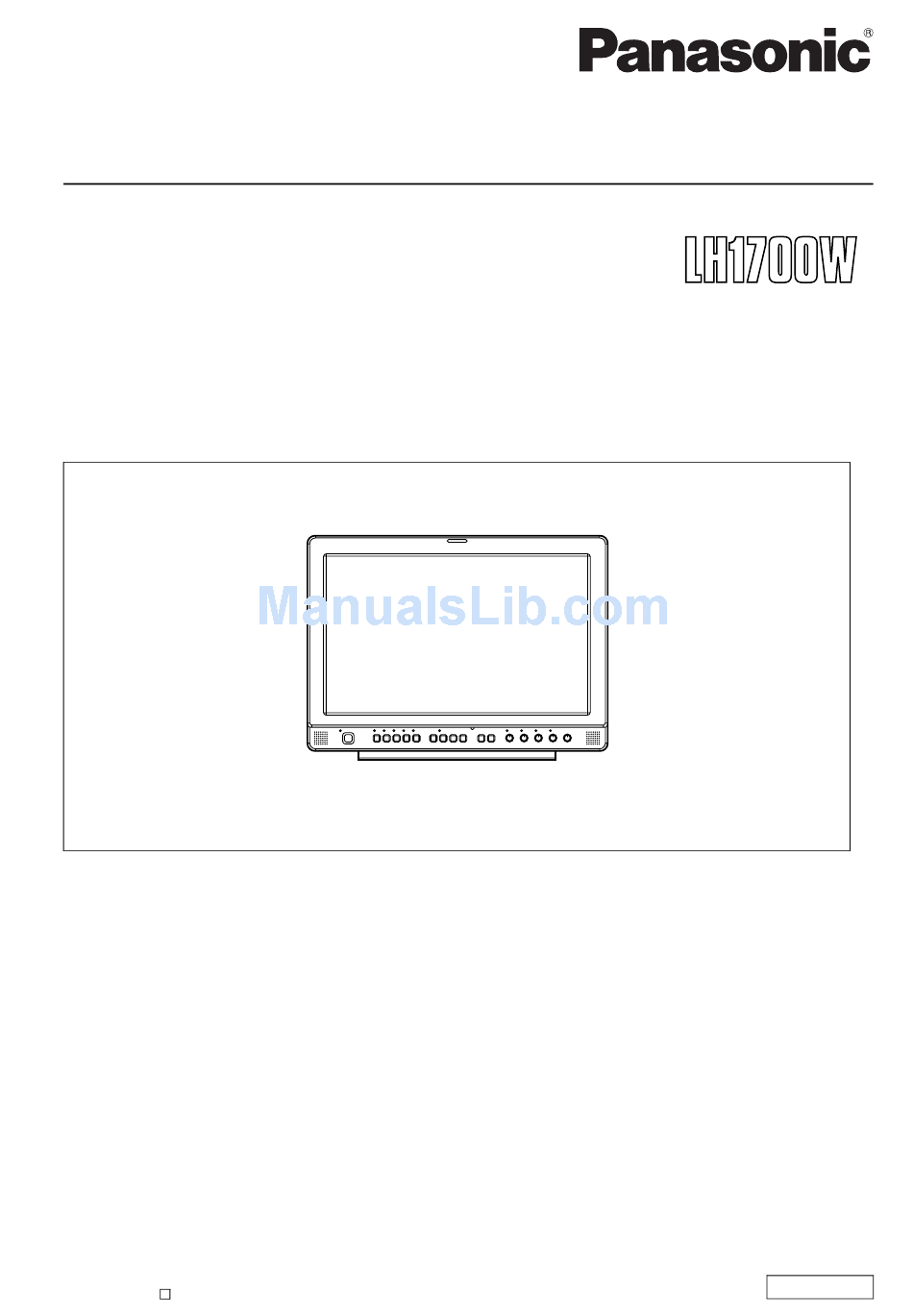

Page 1: Operating Instructions
Operating Instructions LCD Video Monitor Model Before operating this product, please read the instructions carefully and save this manual for future use. ENGLISH S0805M1095 -H Printed in Japan VQT0U69-1... -
Page 2: For Your Safety
CAUTION: Operation at a voltage other than 120 V AC may require the use of a different AC plug. Please contact either a local or foreign Panasonic authorized service center for assistance in selecting an alternate AC plug. Notice (U.S.A. only): This product has a fluorescent lamp that contains a small amount of mercury. -
Page 3: Important Safety Instructions
Responsible Party: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ07094 Support contact: Panasonic Broadcast & Television Systems Company 1-800-524-1448 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Table Of Contents
Precautions for Use • The liquid crystal portion is manufactured with highly precise technology. It includes over 99.99% effective pixels, but 0.01% or less of the pixels are either missing, or have fixed lighting (red, blue, green). This is not a sign of malfunction. -
Page 5: Outline
Outline The BT-LH1700W liquid crystal monitor was designed especially for broadcasting service and business use. It is equipped with a high performance 17.1-inch wide liquid crystal display panel. g High performance liquid crystal panel This monitor achieves outstanding color reproduction, a wide viewing angle, and high-speed response. -
Page 6: Controls And Their Functions
Controls and Their Functions Video monitor unit Front view Front panel ( Rear view page 7) An embedded audio unit (BT-YAE1700G) can be attached ( Installation Guide included). Rear panel ( page 8) Power supply [you can switch between AC and DC ( page 9)]... -
Page 7: Front Panel
Controls and Their Functions Front panel POWER switch This switches the power supply ON/OFF. When the power is ON, the LED (green) lights up. INPUT SELECT button This selects the signal input line. The green LED light above the button indicates the selected input signal. VIDEO Video input Y/C input... -
Page 8: Rear Panel
Controls and Their Functions Rear panel SDI (HD/SD) terminal (BNC) : This is the SDI input terminal (compatible with HD/SD automatic switching). : This is the SDI input terminal (compatible with HD/SD automatic switching). SWITCHED OUT : This is the active through-out terminal for the SDI input signal being displayed on the screen. * SDI active through-out is only outputted when [SDI1] or [SDI2] is selected using the [INPUT SELECT] buttons. -
Page 9: Power Supply
Power Supply Connecting and fixing the power cord 1. Attach the power cord to the monitor unit. Using the power cord hook and the screw, attach the power cord to the monitor unit. Power cord Power cord hook Screw 2. Connect the power cord to the power outlet. g When using external DC power (DC11V–17V) You can slide open the power cover, and switch from AC input to external DC input. -
Page 10: How To Use The On Screen Menu
How to Use the On Screen Menu Three types of information are displayed on the screen. The input signal status, picture adjusting knob status, and the menu display. Input signal status Picture adjusting knob status Menu display MENU Displays the operation explanation for the menu button. - Page 11 How to Use the On Screen Menu Menu operations 1. Push [MENU] to display the MAIN menu. 2. Push [ ] to select the menu, then push [ENTER]. MENU To return to the previous screen Push [MENU]. (continued) 3. Push [ ] to select the sub menu, then push [ENTER].
-
Page 12: User Data
User Data You can change the menu setting values and picture adjusting knob settings, then save and load up to 5 combinations of screen adjustment values as user data. You can also return the setting values and adjustment values to the factory preset settings. The following settings are included in user data. -
Page 13: Main Menu
Main Menu Menu configuration MAIN MARKER VIDEO CONFIG BACKLIGHT SYSTEM CONFIG FUNCTION1 FUNCTION2 SUB WINDOW WFM POSITION MENU POSITION ROTARY POSITION STATUS DISPLAY SETUP LOAD SETUP SAVE FAN MOTOR INPUT SELECT VIDEO/ Y/C NTSC SETUP COMPONENT LEVEL RGB SYNC COMP. AUDIO INPUT SELECT EMBEDDED SELECT L... -
Page 14: Marker
Main Menu (continued) MARKER Sub menu Settings *1*2 <OFF> MARKER 16:9 <4:3 > <13:9> <14:9> <CNSCO> <VISTA> <95%> <93%> <90%> <88%> <80%> *1*3 <OFF> MARKER 4:3 <95%> <93%> <90%> <88%> <80%> <NORMAL> MARKER BACK <HALF> <BLACK> <OFF> CENTER MARKER <ON> GPI PRESET1 <4:3 >... -
Page 15: Types Of Marker
Main Menu (continued) Types of MARKER g 16:9 marker (Displayed when using HD, or when using SD with a 16:9 aspect ratio) The marker is only displayed as a vertical bar. In addition, the section becomes the “MARKER BACK” item. 4:3 marker 14:9 marker VISTA marker, CNSCO marker... -
Page 16: Video Config
Main Menu (continued) VIDEO CONFIG Sub menu Settings GAMMA <NORMAL> SELECT <FILM> <VARICAM> FILM GAMMA <OTHER> COLOR TEMP. <USER0–63> <D93> <D65> <D56> <VAR1> <VAR2> <VAR3> SHARPNESS <HIGH> <LOW> MODE <0–30> SHARPNESS H <0–30> SHARPNESS V <MODE2> I-P MODE <MODE1> <OFF> MONO <ON>... -
Page 17: System Config
Main Menu (continued) g WB adjustment mode You can adjust “WHITE BALANCE VAR1” – “WHITE BALANCE VAR3” (WB) by selecting “VAR1” – “VAR3” in “COLOR TEMP.” in the “VIDEO CONFIG” menu. Sub menu Settings COLOR TEMP. <USER0–63> <D93> <D65> <D56> WB-HIGH RED <0–60>... - Page 18 Main Menu (continued) SYSTEM CONFIG Sub menu Settings SUB WINDOW <FULL> <PART> <WFM> WFM POSITION <LB> <RB> <RT> <LT> MENU <CENTER> POSITION <LB> <RB> <RT> <LT> ROTARY <CENTER> POSITION <LB> <RB> <RT> <LT> STATUS DISPLAY <CONTINUE> <3SEC OFF> <OFF> SETUP LOAD <FACTORY>...
- Page 19 Main Menu (continued) g About the SUB WINDOW You can compare saved still and moving images or show the Wave Form Monitor (WFM) by using the “SUB WINDOW” function to separate the main window into 2 displays as shown below. Depending on the settings of the “SUB WINDOW”...
-
Page 20: Gpi
Main Menu (continued) The “GPI CONTROL” item is used to set enable/disable of all GPI functions, and assigns functions to each of the GPI terminal pins ( page 23). Sub menu Settings GPI CONTROL <DISENABLE> <ENABLE> GPI1–GPI8 <UNDEF> <MARKER1 ON/OFF> <MARKER2 ON/OFF>... -
Page 21: Input Select
Main Menu (continued) INPUT SELECT Sub menu Settings VIDEO / Y/C <AUTO> <NTSC> <PAL> NTSC SETUP <75> <00> /RGB <YP > <RGB-VIDEO> <RGB-COMP.> COMPONENT <SMPTE> LEVEL <B75> <B00> RGB SYNC <G-ON> <EXT> COMP. *1 “AUTO” is set when the monitor is shipped from the factory, but if there are concerns about noise etc. from outside the input signal, we recommend assigning specific format. -
Page 22: Audio
Main Menu (continued) g “PHASE” and “CLOCK” factory preset setting values FORMAT CLOCK 640x400(70Hz) 640x480(60Hz) 640x480(75Hz) 640x480(85Hz) 800x600(60Hz) 1056 800x600(75Hz) 1056 800x600(85Hz) 1048 AUDIO Adjusting the speaker output. This can only be set when the monitor is equipped with an embedded audio unit BT- YAE1700G (optional). -
Page 23: Remote Specifications
REMOTE Specifications REMOTE operation is possible on this monitor using the GPI/RS-232C terminal. GPI terminal Each of the items in the GPI screen are compatible with the following terminals. You can assign functions to each terminal in the menu GPI screen ( The functions assigned to each terminal operate when the GND (5 Pin) is connected (ON) or open (OFF). - Page 24 Response formats 1. Setting command response STX (02h) 2. Query command response STX (02h) 3. Error response STX (02h) Error code ER001: Invalid command ER002: Parameter error BT-LH1700W Side Pin number Signal N.C. N.C. Command Data ETX (03h) Command ETX (03h)
- Page 25 REMOTE Specifications g Setting command No Command Explanation Input switch Image quality adjustment Blue only HV Delay Status display Analog mode RGB Sync Marker settings Gamma selection Color temperature settings Sharpness settings IP mode settings Monochrome settings SD aspect settings Scan settings Remote settings Remote operation...
- Page 26 REMOTE Specifications g Query command No Command Explanation Input selection Image quality adjustment Blue only Marker Gamma Color temperature Sharpness IP mode Monochrome 10 QAS Aspect 11 QSC Scan Analog mode 13 QSY RGB sync Format (continued) Data 0: SDI1 3: RGB-VIDEO 6: RGB-COMP.
-
Page 27: How To Attach The Rack Mounting
How to Attach the Rack mounting If you use rack-mounting adaptors BT-MA1710G (optional) with this monitor, you can incorporate a 19-inch standard rack (the height is 7U size). Please see the instructions below for attachment. 1. Remove the screws on the back and base of the monitor (3 places), and remove the stand. -
Page 28: Maintenance Inspections
Maintenance Inspections Maintenance inspections are necessary for the user to use this equipment safely. It is important to keep monitor functions in good condition at all times through periodical and appropriate maintenance. In order to use this monitor for a long time, and to make full use of all of its functions, be sure to carry out the following maintenance inspections. - Page 29 Specifications (continued) g List of compatible signal formats Input signal VIDEO formats NTSC 480/59.94I 480/59.94P 576/50I 576/50P 720/50P 720/59.94P 720/60P 1035/59.94I 1035/60I 1080/23.98PsF 1080/24PsF 1080/23.98P 1080/24P 1080/25P 1080/29.97P 1080/30P 1080/50I 1080/50P 1080/59.94I 1080/60I 1080/59.94P 1080/60P 640 x 400 (70Hz) 640 x 480 (60Hz) 640 x 480 (75Hz) 640 x 480 (85Hz) 800 x 600 (60Hz)
