Panasonic BT-LH1760 Brochure & Specs

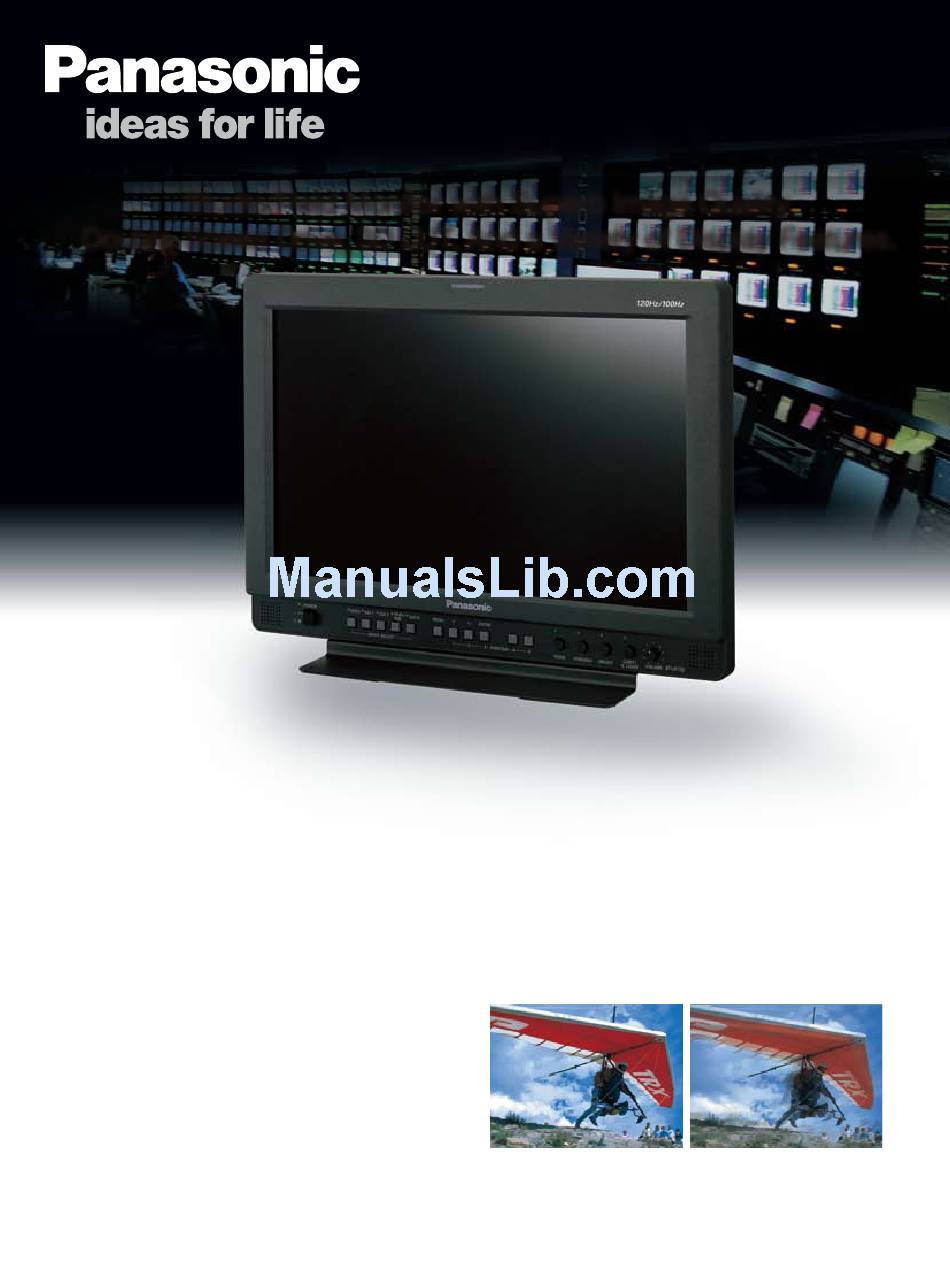

BT-LH1760
17" High Performance Widescreen LCD Monitor
Studio/Field Monitor with Superb Image Quality,
Double-Speed Drive, 3D LUT, And a Variety of Display Features.
Based on the BT-LH1700W, which has long been popular for its versatility in both studio and field applications, the BT-LH1760
provides even better image quality and performance in a 17" LCD monitor for broadcast use.
Double-speed (120 Hz/100 Hz) drive minimizes motion blur, and a new image processing engine with a three-dimensional LUT
(Look Up Table) achieves faithful color reproduction.
Efficient broadcast and image production work is made possible by a host of powerful display functions, including a vectorscope,
waveform monitor, cross hatch, pixel-to-pixel, HV delay, monochrome mode, split screen, audio level meter, time code, and closed
caption display.
With power consumption current operating on AC power reduced by 50% compared to our previous model, and the quiet operation of
its fanless drive, the BT-LH1760 is ideal for use in editing studios and MA rooms.
Double-Speed Drive for Blur-Free Moving Images
Moving images without any motion blur are achieved by driving at a
speed (120 Hz/100 Hz) that is twice the panel speed and inserting a
black frame of a certain level between frames. Unlike frame creation
methods, this system minimizes afterimages while displaying images
faithful to the input signal. This high-performance, high-speed image
display function is ideal for broadcast applications.
Faithful Color Reproduction
The BT-LH1760 features a new image processing engine. By using
a three-dimensional LUT (Look Up Table) for each RGB color and
120Hz Double-speed drive 60Hz Frame hold
applying precise 10-bit image processing, it achieves faithful color
reproduction from low to high brightness levels in all video formats.
