- Page 1 BT-LH2550 25.5" LCD HD/SD Monitor BT-LH1710 17” Wide LCD HD/SD Monitor 7.9” Wide LCD HD/SD Monitor LCD Monitor Line-up Catalog BT-LH80WU BT-LH900A 8.4” LCD HD/SD Monitor BT-LH1760 17” Wide LCD HD/SD Monitor...

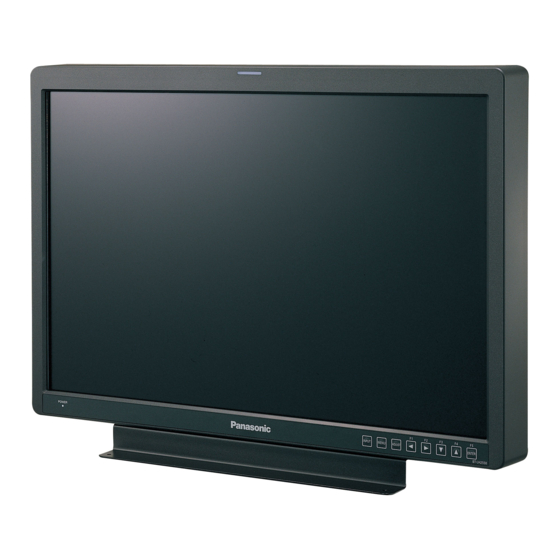

- Page 2 Panasonic Profess Panasonic’s professional LCD video monitors feature compact, energy-efficient LCD panels with faithful color reproduction, fast image appearance, and a long list of functions to meet professional needs. BT-LH2550 This compact 25.5-inch monitor offers a wide color space and 1920 x 1200-pixel resolution.
- Page 3 LCD Monitor With four screen sizes and five models to choose from, Panasonic monitors support broadcasting and image production tasks ranging from field recording with a camera-recorder to post-production and transmission. BT-LH1710 This versatile, rack-mountable 17” wide-screen LCD operates on AC/DC power and can be used in various applications both in the studio and in the field.
-
Page 4: Calibration Function
Five Advanced Technologies in the New BT-LH2550 A Wide Color Space with Six Color Space Modes The color space of the BT-LH2550 is 102% that of the NTSC standard, so it exceeds the EBU/SMPTE range that can be displayed by ordinary LCDs. It accurately reproduces colors that are not easily reproduced by conventional displays, including CRTs,... - Page 5 The biggest concern when receiving a video feed is response time in the intermediate gradations. The BT-LH1760 uses double-speed drive to achieve superb response over the entire image, enabling the vivid image display without blurring. The BT-LH2550 and BT-LH1710 feature an overdrive circuit to improve response in intermediate gradations.
- Page 6 Black (0%), Half (50%) 4:3 Aspect Marker or Normal (100%). • Safe Area Marker (16:9/4:3): 95%, 93%, 90%, 88% or 80%. In 16:9 mode, the BT-LH2550/ LH1760/LH1710/LH80WU can display a superimposed safe area marker corresponding to the aspect marker’s angle of Safe Area and Center Marker view.
-
Page 7: Viewfinder Connector
The front panel has red and green tally lamps. The BT-LH80WU also has a rear tally lamp for added convenience when using as a viewfinder. Viewfinder Connector Equipped with a 15-pin viewfinder terminal, the BT-LH80WU can also be used as a viewfinder* for compatible Panasonic camera- recorders — AJ-HPX3700, AJ-HPX2700, AJ-HPX3000, AJ-HDX900, AJ-HDC27H, AJ-HPX2000 (US model), AJ-HPX2100 (European/ Asian model), AG-HPX500* and AG-HPX502* (Asian model). - Page 8 Front and Rear Panels and Interfaces BT-LH2550 BT-LH1760 BT-LH1710 BT-LH900A BT-LH2550 Rear Panel BT-LH1760 Rear Panel BT-LH1710 Rear Panel BT-LH80WU BT-LH900A Rear Panel BT-LH80WU Rear Panel...
-
Page 9: Supported Video Format
1080/25p 1080/29.97p 1080/30p 1080/50i 1080/50p 1080/59.94i 1080/60i 1080/59.94p 1080/60p ✓: Supported *1: One pair of terminals is provided for YP and RGB input. The input signal type is selected in the menu. For RGB, the input signal type is selected from VIDEO or COMP. *2: When a DVI-D input terminal is used, the input signal type is selected from VIDEO or COMP. *3: When a 1035/59.94i signal is input, images are displayed in 1080/59.94i. In that case, the displayed markers are for 1080/59.94i. *4: When 1035/60i signal is input, images are displayed in 1080/60i. In that case, the displayed markers are for 1080/59.94i. BT-LH2550 BT-LH1760/LH1710 Input Signal RGB-COMP. DVI-COMP. RGB-COMP. DVI-COMP. (*1) (*2) (*1) 640 x 400 (70Hz) ✓ ✓... - Page 10 Dimensions BT-LH2550 BT-LH1760/LH1710 2-M4 16mm (11/16") BT-LH900A 181mm (7-3/16") 142mm (5-5/8") 20.2mm (13/16") 218mm (8-5/8") 38mm (1-1/2") 150mm (5-15/16") 2mm (1/8") 1.2mm 3mm (1/8") (1/16") 142mm (5-5/8") 181mm (7-3/16") 346mm (13-5/8") 370mm (14-5/8") 100mm (3-15/16") 599mm (2-5/8") 60mm (2-3/8")" 550.08mm (21-11/16") 96mm (3-3-16")
-
Page 11: Specifications
Specifications BT-LH2550 GENERAL Power Requirement: DC 24 V 4.5 A, DC 5 V 0.03 A AC adapter In: 100 V to 240 V, 50/60 Hz, 1.6 A to 0.6 A Dimensions (WxHxD): 599 mm x 440 mm x 220 mm (23-5/8”... -
Page 12: Optional Accesories
Egypt Finland, Latvia, Lithuania, Estonia France Germany, Austria +49 (0) 611 235 401 Greece Hungary India Indonesia Iran (Vida) (Panasonic Office) +98 2188791102 Italy Jordan Kazakhstan Korea SP-LCDLUPE4 BT-PRP17G (Indoor use only) Protective Panel for BT-LH1760/LH1710 +54 1 308 1610...
