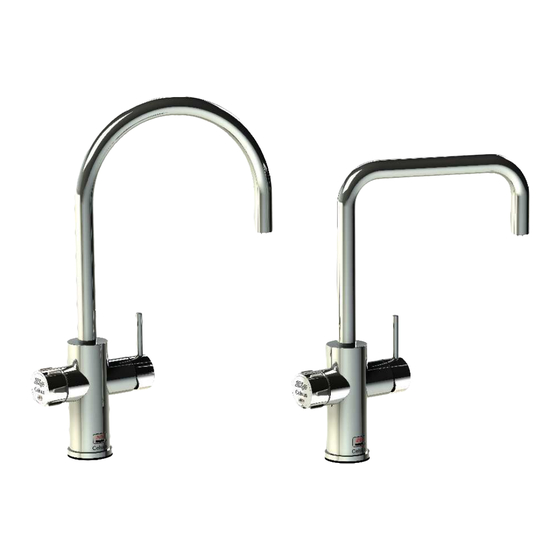

Zip HydroTap G4 Celsius Series User Manual
  1. Manuals
  2. Brands
  3. Zip Manuals
  4. Water System
  5. HydroTap G4 Celsius Series
  6. User manual

Zip HydroTap G4 Celsius Series User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ZIP HydroTap G4 Celsius
User Guide
Tap Operation..................(Pages 3-5)
•
LCD Screen & Menu .......(Pages 6-19)
•
Maintenance.................... (Pages 20-23)
•
Contact & Details............ (Page 24)
•
Date of Installation............./........./.........
•
ARC
Affix Model Number Label
802698 - G4 User Guide - June 2015 - v2.00
®
CUBE
Here
802698
Page 1 of 24

Advertisement

loading

Related Manuals for Zip HydroTap G4 Celsius Series

Summary of Contents for Zip HydroTap G4 Celsius Series

  • Page 1 ® ZIP HydroTap G4 Celsius User Guide Tap Operation....(Pages 3-5) • LCD Screen & Menu ..(Pages 6-19) • Maintenance....(Pages 20-23) • Contact & Details.... (Page 24) • Date of Installation...../../..• CUBE Affix Model Number Label Here 802698 802698 - G4 User Guide - June 2015 - v2.00...
  • Page 2 NOTES Page 2 of 24 802698 - G4 User Guide - June 2015 - v2.00...
  • Page 3 Tap operation - Chilled Sparkling Turning the rotary control allows the dispensing of either Chilled Sparkling or Chilled water. For your convenience, the rotary control is spring loaded, so when released, will return automatically to the OFF position To dispense Sparkling water: ( Model CSHA Turn the rotary control forward as shown Rotate for Sparkling water...
  • Page 4 Tap operation - Boiling water To dispense Boiling water: with the safety ON. Tapping the illuminated RED safety Rotate for Boiling water button twice, with one finger, will cause the safety red light to flash for a few seconds. While flashing, turn the rotary control (as shown) to dispense boiling water.
  • Page 5 Filter Warning and Reset Temperature Warning Light: The warning light will flash slowly for 1 sec On and 3 secs OFF whenever the water is not at the temperature set point. The tap may be operated, but the water may not be at the desired temperature . The slow flashing light will turn off once the water reaches the set point.

  • Page 6: Lcd Screen

    LCD Screen The Zip HydroTap G4 Celsius introduces a ‘TOUCH’ screen for easy setup and operation adjustment. Safety lock Icon Sleep Mode Icon Energy Mode Icon BHA window Set boiling water temperature Filter usage **Status window CHA window Set chilled water temp.
  • Page 7 LCD Screen Menu Main Menu Sub Menu Sub Menu Options Section • English Language • German • Product Info • Product serial no. • System Faults • Lists Information • Event Log • Reset options • Filter Flush Installation • Calibration options •...
  • Page 8 LCD Screen operation - Section A Set Language Press [MENU] for main menu. Press [Language] button. Select the preferred language Press [<=] button for the previous menu LCD Screen operation - Section B System Information In this section, you can find your product serial number , check system fault messages or view the event logs of your product.
  • Page 9 LCD Screen operation - Section C Install Once your Zip HydroTap G4 unit has been installed, Go to Install menu to configure the system settings for your product. Sub menu: Filter Flush Filter Reset Boiling Calibration Booster Lux Sensor Calibration CHA Screen Follow 1,2 &...
  • Page 10 Position CLOSED Position The Zip HydroTap allows the user to adjust the filter life and to edit the filter usage. (See filter details on Pages 14 -15). Page 10 of 24 802698 - G4 User Guide - June 2015 - v2.00...
  • Page 11 In general, boiling water units may vent steam from the tap spout. Take care to avoid personal injury whenever this occurs. The Zip HydroTap is equipped with a self-calibrating program to adjust for altitude. On start up, the controls take the system through a calibration process.
  • Page 12 Service Menu as any changes may affect the normal operation of the unit. This can only be done by a Zip technician. Please contact your Zip service provider for further assistance.
  • Page 13 HydroTap unit. LCD Screen operation - Section F F Communication (when available) The Zip HydroTap G4 allows the user to use wifi to monitor & control the product remotely. Not yet available LCD Screen operation - Section G nstructions...
  • Page 14 Home screen. Set Temperature Zip HydroTaps are designed to operate within 1ºC to 2ºC of set point for boiling water and between 6ºC to 10ºC (5ºC to 10ºC for CS175) for chilled drinking water. All boiling water units are self calibrating to 98ºC, which is the recommended setting.
  • Page 15 LCD Screen operation - Section G Filter Zip HydroTap G4 allows the user to adjust filter life and edit filter usage. Note: The filter life may be set as a function of Litres used, or in months from the filter change. When the first of these functions is reached (i.e.
  • Page 16 LCD Screen operation - Section G Energy Modes (Boiling models) This mode allows the HydroTap to Go into Energy Saving mode. There are two options available: ‘Sleep’ mode and ‘ON/OFF’ mode. In SLEEP MODE the unit will Go to “Sleep” after a 2hr period of inactivity.
  • Page 17 LCD Screen operation - Section G In ON / OFF Mode the user may turn the unit ON or OFF at specific times for individual days or alternatively by weekly and/or weekend settings. To activate ON/OFF mode: Press the [MENU] button for main menu.
  • Page 18 LCD Screen operation - Section G Safety (Boiling models) Boiling Only Models To set the safety using the touch screen: Press the [MENU] button for main menu. Press the [Setting] button. If required, Enter your 4 digit password Press the [Safety] button. 5.
  • Page 19 Gas bottle change Turn the CO bottle regulator OFF (Anti-clockwise). The knob will screw up and away from the bottle. Dispense sparkling water for 30 seconds, until the water flow is free of gas. Remove the bottle from the cupboard and disconnect the regulator. If the braided hose is removed from the regulator, be careful not to loose the small plastic sealing olive, located inside the end of the hose.

  • Page 20: Filter Maintenance

    Filter Maintenance The Zip HydroTap notifies when a filter replacement is due. If you notice one of the following, you will need to change the filter: • The Change Filter light will flash until reset. (See Section C) • The filter percentage will change to 0% on the screen.
  • Page 21 Filter Maintenance Warning: If the Zip HydroTap is switched off for a long period of time (e.g. More than a weekend), run water through the chilled water outlet for at least 5 minutes before consumption. Air Inlet Filter The Zip HydroTap air filter is conveniently located on the outside of the condenser.

  • Page 22: Home Menu Icons

    Home Menu Icons Safety switch is LOCKED. The HydroTap will not dispense any Boiling water. See page 18 for safety switch operation Safety switch is UNLOCKED. Boiling water may be dispensed. See page 4 for tap operation details Sleep mode is active. There are 7 sleep mode options which display this icon on the home screen.
  • Page 23 NOTES 802698 - G4 User Guide - June 2015 - v2.00 Page 23 of 24...

  • Page 24: Contact Details

    Customer Care. Free Call: 1 800 42 43 44 As Zip policy is one of continuous product improvement, changes to specifications may be made without prior notice. Images in this booklet have been modified and may not be true representations of the finished goods.
