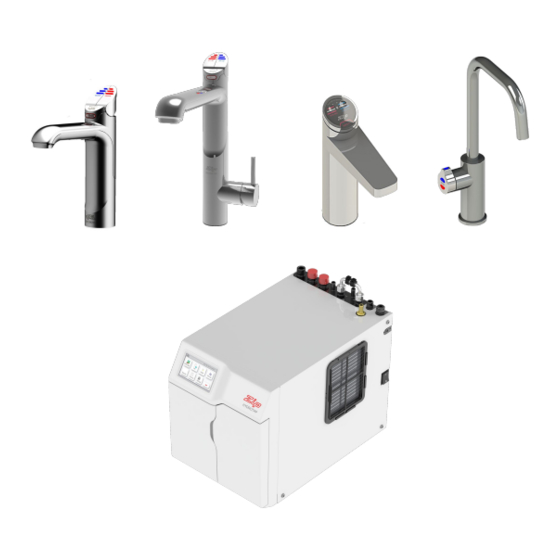

ZIP HydroTap G4
User Manual
Tap Operation..................(Pages 3-11)
•
LCD Screen & Menu .......(Pages 12-26)
•
Maintenance.................... (Pages 26-29)
•
Home Menu Icons............(Page 30)
•
Contact details.................(Page 32)
•
Date of Installation............./......../.........
Affix Model Number Label
For safe keeping store this book
in the inside door pocket
802006 - HT-BCS; BCSH A-AV User Manual - Mar 2016 - v3.00
BCS Residential
Here
802006
®
Page 1 of 32

Advertisement

Table of Contents
loading

Related Manuals for Zip HydroTap G4

Summary of Contents for Zip HydroTap G4

  • Page 1 ZIP HydroTap G4 ® User Manual Tap Operation....(Pages 3-11) • LCD Screen & Menu ..(Pages 12-26) • Maintenance....(Pages 26-29) • Home Menu Icons....(Page 30) • Contact details....(Page 32) • Date of Installation...../../..BCS Residential Affix Model Number Label Here...
  • Page 2 Notes Page 2 of 32 802006 - HT-BCS; BCSH A-AV User Manual - May 2016 - v3.00...
  • Page 3 Tap Safety The safety lock feature is provided to prevent boiling water flowing if the hot lever is inadvertently operated. This function can be activated and deactivated from either the Tap or from the touch screen display (Located on the unit in the cupboard). To set the tap safety setting: (Classic;...
  • Page 4 Tap functions Elite Tap: Boiling Button Chilled Button The Elite tap uses touch Safety Lock sensitive controls, to dispense Boiling, Chilled and Sparkling water. When operating the tap, ensure the touch surface is dry as moisture may interfere with the sensor touch control. The safety lock can be con- trolled from either the tap or from the touch screen display...
  • Page 5 Tap functions HydroTap Arc/Cube: On power up, wait 30secs. for the unit to calibrate itself. Tapping the select button will allow the choice of Boiling (RED) with safety, Chilled (BLUE) or Sparkling (WHITE) water mode. The Arc/Cube control may be rotated in a forward or reverse direction to dispense Boiling or Chilled water.

  • Page 6: Tap Operation

    Tap operation To dispense chilled water: Classic Tap Press or pull lever HydroTap Classic and All-In-One taps: Depressing the “Blue” lever allows the dispensing of chilled water. Pulling forward the Blue lever allows the tap to operate in a “no-touch” mode. Water will flow from between 5 and 15 seconds (This is user adjustable).
  • Page 7 Tap operation To dispense boiling water: (With the safety OFF) HydroTap Classic: Depressing the Red lever allows the dispensing of boiling water. Pulling forward the Red lever allows the tap to operate in a “no-touch” mode. Water will flow from between 5 and 15 seconds (This is user adjustable). To reset, return the handle to the “Off”...
  • Page 8 Tap operation To dispense Sparkling water: HydroTap Classic and Operate both levers together All-In-One taps: Depressing both the ‘Red’ d the ‘Blue’ levers allows the dispensing of Sparkling water. Pulling forward both levers allows the tap to operate in a in a “no-touch”...

  • Page 9: Tap Lights

    Tap lights Red Boiling Water Light: (All) Red Lights Blue Lights On all the time: This indicates that the boiling water is ready. Flashing slowly: This indicates that the boiling water is below the desired temperature. Wait for the light to stop flashing before dispensing water.
  • Page 10 Filter Lights Filter light Filter light: Classic; Elite & AIO Filter Light Off: This indicates the filter is operating within its normal specified lifespan. Filter Change light flashing slowly: The light will flash slowly when the filter is due for replacement and the LCD will show “Filter Change”.
  • Page 11 Safety Sensor Calibration (lever models) Light intensity varies from site to site, therefore it is recommended that a re-calibration be performed at the time of the installation. All direct natural sun light must be shaded from the HydroTap, during the calibration.

  • Page 12: Lcd Screen

    LCD Screen Zip HydroTap introduces a ‘TOUCH’ screen for easy setup and operation adjustment. (See page 30 for Home Menu Icons) Other possible messages in status window: Status** Information Notes Safety OFF Product is in normal operation mode Safety ON...

  • Page 13: Lcd Screen Menu

    LCD Screen Menu Main Menu Sub Menu Sub Menu Options Section Language • English • Product Info • Product serial • System Faults Information • Lists • Event Log • Filter Flush • Filter Reset • Reset options • Boiling •...
  • Page 14 LCD Screen operation - Section A Set Language Language options will be available in some overseas markets LCD Screen operation - Section B System Information In this section, you can find your product serial number , check system fault messages or view the event logs of your product. 1.
  • Page 15 [Home] to return to the home screen. LCD Screen operation - Section C Install Once your Zip HydroTap G4 unit has been installed, Go to Install menu to configure the system settings for your product. Sub menu: 1 - Filter Flush...
  • Page 16 Position CLOSED Position The Zip HydroTap allows the user to adjust the filter life and to edit the filter usage. (See filter details on Page 22 ). 2. - Filter Reset After replacing the filter, the counters should be reset Press the [MENU] button for main menu.
  • Page 17 LCD Screen operation - Section C 4. - Booster This function should only be considered when a Booster unit is installed. 1. Press the [MENU] button for main menu. 2. Press the [Install] button. 3. Press the [Booster] button. 4. If a Booster is installed, select YES to enable the Booster.
  • Page 18 LCD Screen operation - Section C 7. - Advanced options Pump anti cavitation mode: This feature sends two electric pulses every 5minutes to the pump. This prevents the build up of air bubbles inside the pump and ensures an even flow of hot water at the tap.
  • Page 19 LCD Screen operation - Section E Security The Zip HydroTap G4 allows the appliance coordinator to set up a password to protect against users changing the preferred system settings. When activat- ed, the password will be necessary to access the Settings and Comms areas.
  • Page 20 LCD Screen operation - Section F F Communication - WiFi (Select models) This section allows the user to use WiFi to monitor the product remotely. From the Home screen Press [Menu]. Then [Comm’s] Enter your 4 digit password to access the WiFi set up. Follow the set up instructions supplied with the WiFi unit To disable the WiFi setup...
  • Page 21 Home screen. Set Temperature Zip HydroTaps are designed to operate within 1ºC to 2ºC of set point for boiling water and between 3ºC to 5ºC for chilled drinking water. All boiling water units are self calibrating to 98ºC, which is the recommended setting.
  • Page 22 LCD Screen operation - Section G Filter Zip HydroTap G4 allows the user to adjust filter life and edit filter usage. Note: The filter life may be set as a function of Litres used, or in months from the filter change. When the first of these functions is reached (i.e.
  • Page 23 LCD Screen operation - Section G Energy Modes This mode allows the HydroTap to enter into Energy Saving mode. There are two options available: ‘Sleep’ mode and ‘ON/OFF’ mode. In Sleep Mode the unit will go to “Sleep” after a 2hr period of inactivity. The Boiling water will gradually drop to either 68°C or room temp, as shown in the table below and the Chilled water will be ON or OFF.
  • Page 24 LCD Screen operation - Section G Note: Any attempt, during OFF mode, to dispense water, will bring the unit out of sleep mode. The unit will return to sleep mode after 2 hours of non use. Please allow sufficient time for the water to reach the set temperature after disabling the sleep mode.
  • Page 25 LCD Screen operation - Section G Safety To set the tap safety setting: • Press [MENU] button for main menu. • Press [Setting] button. • Press [Safety] button. • Press button - YES to allow the safety setting to be changed on the Tap To Enable or Disable the safety on the tap •...

  • Page 26: Filter Maintenance

    Select the option to change and scroll using the up and down arrow Keys Filter Maintenance Warning: If the Zip HydroTap is switched off for a long period of time (e.g. More than a weekend), run water through the chilled water outlet for at least 5 minutes before consumption.
  • Page 27 Filter Maintenance Water Filter The Zip HydroTap notifies when filter replacement is due. If you notice one of the following, you will need to change the filter: • The Change Filter light will flash white once a second and remain so until reset.
  • Page 28 Filter Maintenance Air Inlet Filter The Zip HydroTap air filter is conveniently located on the outside of the condenser. The filter screen is a sliding fit in the plastic housing on the side of the under sink unit. The screen may be removed for cleaning, by sliding it forward.
  • Page 29 Gas bottle change Turn the CO bottle regulator OFF (Anti-clockwise). The knob will screw up and away from the bottle. Remove the bottle from the cupboard and disconnect the regulator. If the braided hose is removed from the regulator, be careful not to loose the small plastic sealing olive, located inside the end of the hose.

  • Page 30: Home Menu Icons

    Home Menu Icons Safety switch is LOCKED. The HydroTap will not dispense any Boiling water. See page 3 for safety switch operation Safety switch is UNLOCKED. Boiling water may be dispensed. See page 7 for tap operation details Sleep mode is active. There are 7 sleep mode options which display this icon on the home screen.
  • Page 31 Notes This user manual has been written according to firmware version B02.4. Please check the following website for the latest user manual: https://www.zipwater.com/” 802006 - HT-BCS;BCSH A-AV User Manual - May 2016- v3.00 Page 31 of 32...

  • Page 32: Contact Details

    Telephone: (02) 9796 3100 Free Call: 1 800 638 633 As Zip policy is one of continuous product improvement, changes to specifications may be made without prior notice. Images in this booklet have been modified and may not be true representations of the finished goods.
